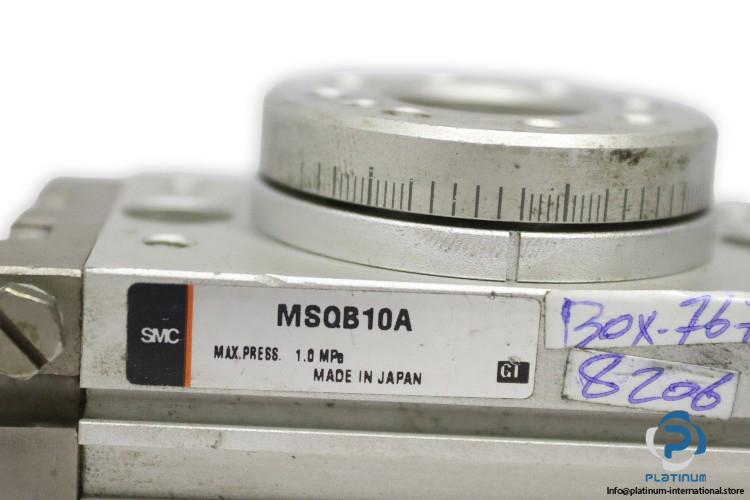

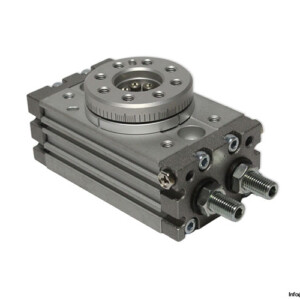

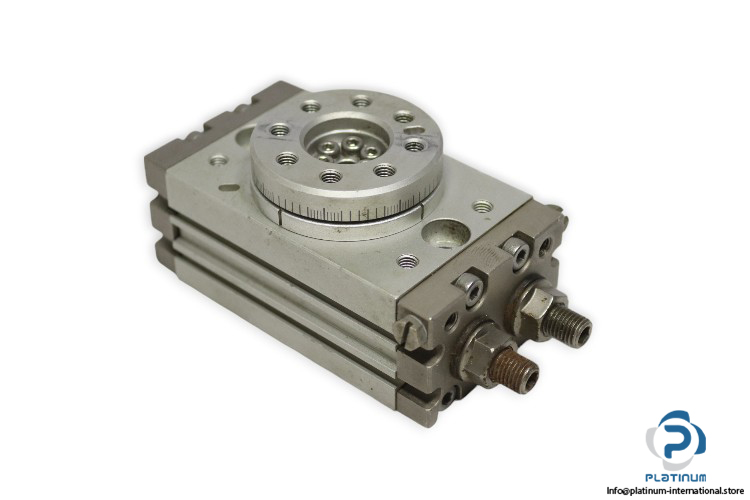

SMC MSQB10A Compact Rotary Table

Stokta1 birimSevkiyata hazır

111,11$

The SMC MSQB10A Compact Rotary Table is a pneumatic rotary actuator designed for precise positioning and smooth rotational movement. Featuring a 15 mm bore, 0 to 190 degree adjustment range, max. 1 MPa operating pressure, and non-lube operation, it is ideal for industrial automation and assembly applications.

Üretici
SMC
SKU
1053071
Koşul
Kullanılmış
Yeni Stokta 188,88$
Bu ürün ayrıca yeni olarak da mevcuttur
Yeni Sürümü Görüntüle →
Paylaş
Geniş Stok
Küresel Nakliye
Uzman Destek
Kalite Garantili
CodeMSQBOEOO / 3B1-1 / H Bo
SeriesMSQ
FluidAir
Size10
Cylinder bore size15 mm
Angle adjustment range0 to 190 degree
Adjuster optionWith adjustment bolt
Operating pressuremax. 1 MPa
Cushion TypeRubber bumper
LubricationNon-lube
Port size5MM
Ambient and fluid temperature0 to 60°C
ConditionUsed
SKU1053071
Weight0,5
