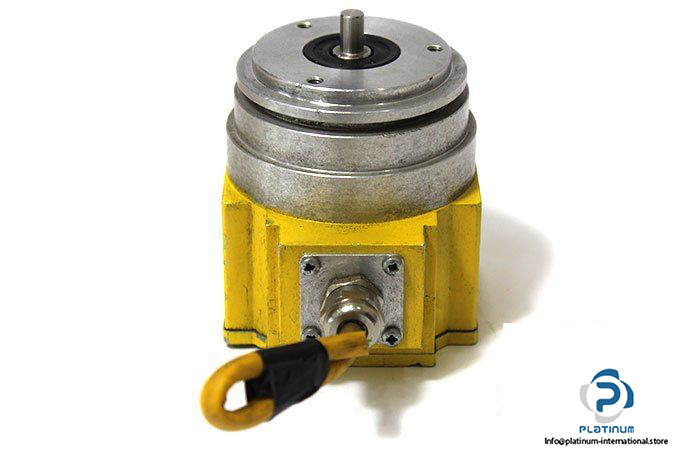

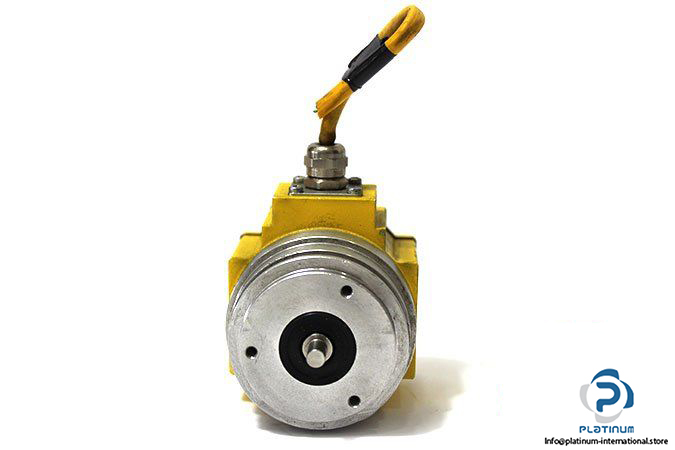

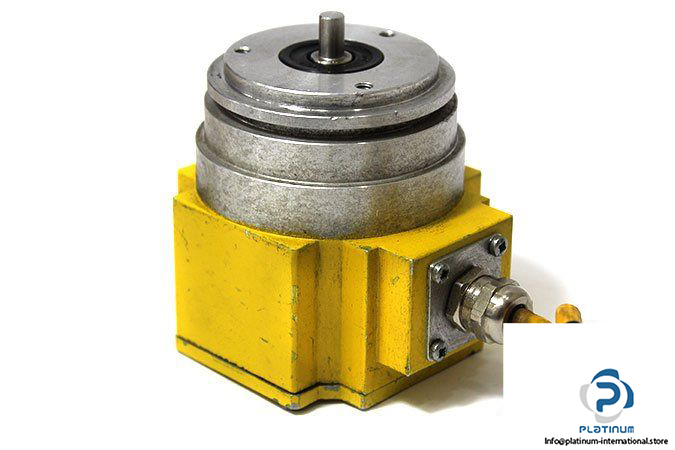

Stegmann SRM 50 C3 Motor Feedback System
135,00$
MOTOR GERİ BESLEME SİSTEMİ Yüksek hassasiyetli STEGMANN / SICK SRM-50-C30 motor geri besleme sistemi, sağlam şaft ve ön montaj flanşı ile. Devir başına 1024 sinüs/kosinüs periyodu ve toplam 134 milyon adım hassas hareket geri bildirimi sağlar.
STEGMANN / SICK SRM-50-C30 MOTOR FEEDBACK SYSTEM
The SRM-50-C30 by STEGMANN / SICK is a precision motor feedback system engineered for accurate positional control in motion applications. With high-resolution output and robust construction, this unit ensures reliability in automation systems and servo environments.
Manufacturer: STEGMANN / SICK
Type: Motor Feedback System
Model: SRM-50-C30

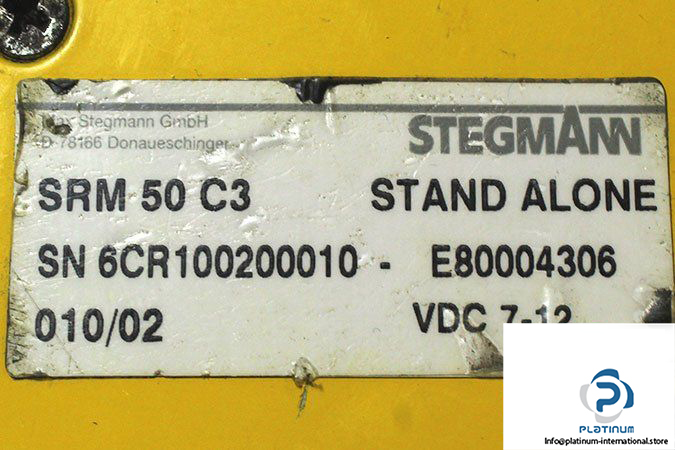

Serial No.: 6CR100200010-E80004306
Ref No.: 010/02
| Flange Type | Face mounting flange |
| Shaft Type | Solid shaft |
| Shaft Diameter | 6 mm |
| Sine/Cosine Periods per Revolution | 1,024 |
| Total Number of Steps | 134,217,728 (Multi SRM) |
| Voltage Supply | 7 / 12 VDC |
| Switching Frequency | 0 / 200 kHz |
| Type of Code | Binary |
| Current Consumption | 80 mA |
| Protection Class | IP40 |
| Temperature Range | -20 / 85 °C |
