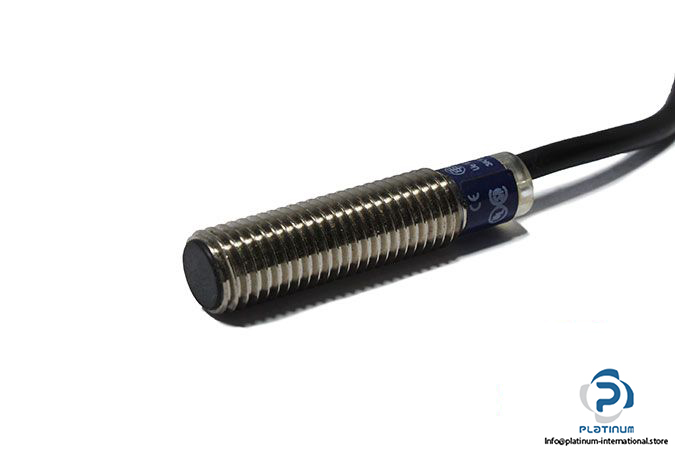

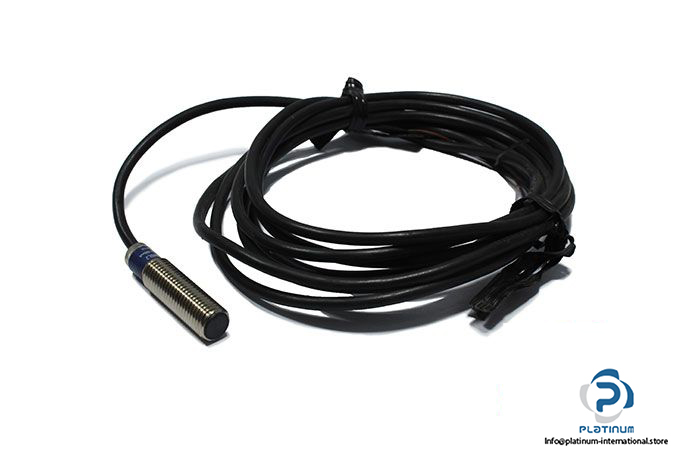

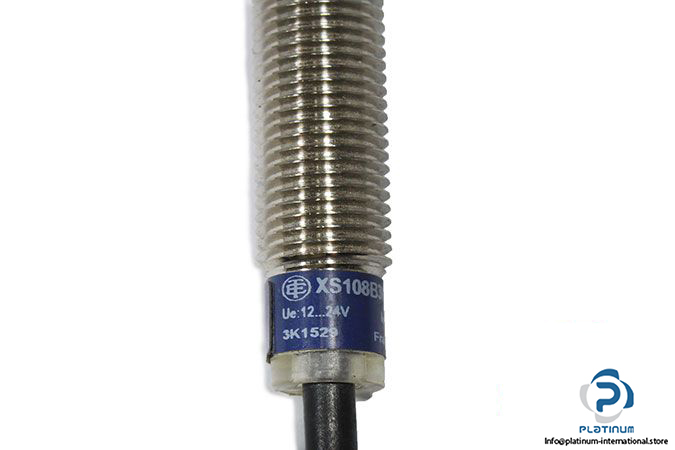

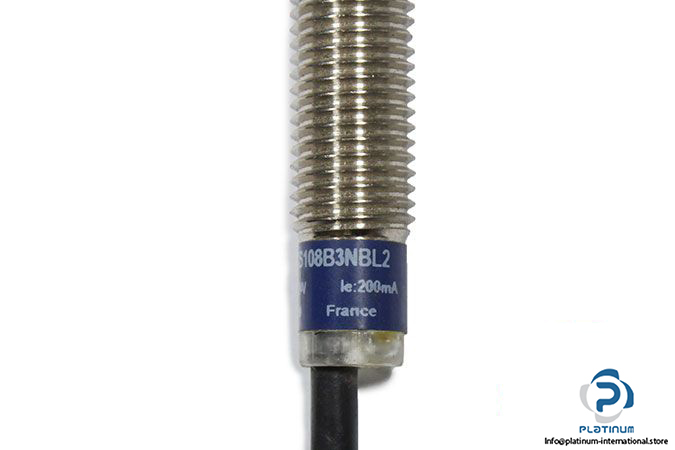

Telemecanique XS108B3NBL2 Inductive Sensor

Manufacturer: Schneider / Telemecanique

Type: Inductive Sensor

Model: XS108B3NBL2



Sensor Design: Cylindrical M8

Detector Flush Mounting Acceptance: Flush mountable

Material: Metal

Wiring Technique: 3-wire

Nominal Sensing Distance: 2.5 mm

Discrete Output Function: 1 NC

Discrete Output Type: NPN

Electrical Connection: Cable

Cable Length: 2 m

Rated Supply Voltage: 12 … 24 VDC

Switching Capacity: <= 200 mA
Degree of Protection: IP65, IP67

Thread Type: M8 x 1

Ambient Air Temperature for Operation: -25 … 70 °C

Diameter, Length: 8 mm, 33 mm

Weight: 0.03 Kg
