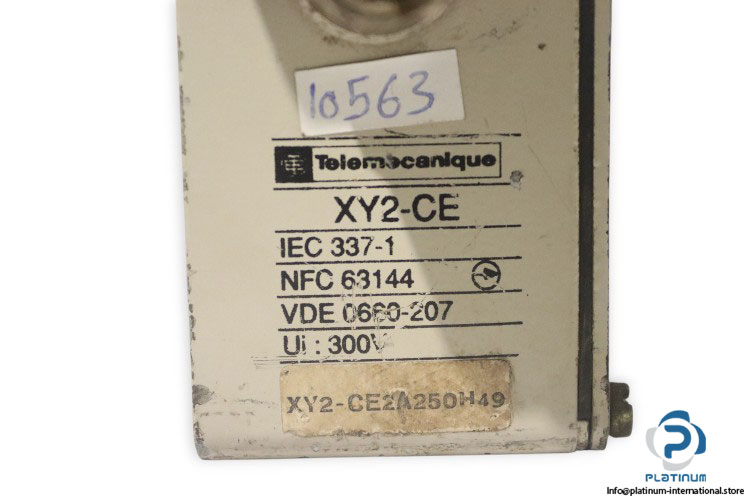

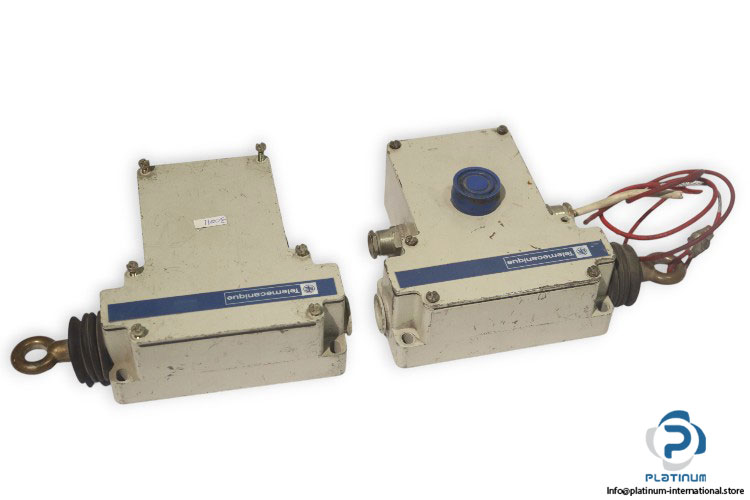

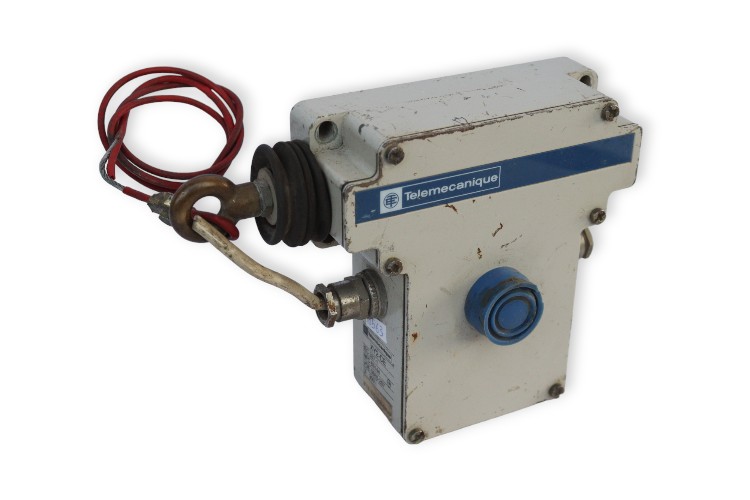

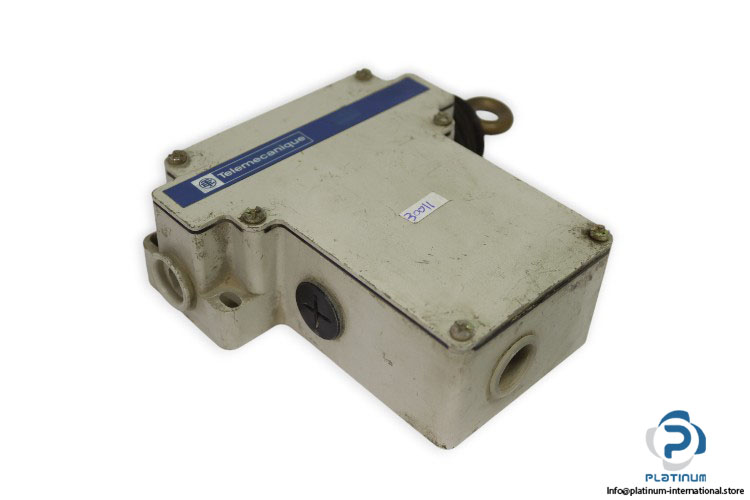

Telemecanique XY2-CE Emergency Stop Rope Pull Switch

Manufacturer: Telemecanique
Type: Emergency Stop Rope Pull Switch
Model: XY2CE

Insulation Voltage: 300 V
Contact Configuration: 2 Normally Open, 2 Normally Close
Contact Voltage: 240 V AC/ 250 V DC
Contact Current: 3 A (AC)/ 0.27 A (DC)
Contacts operation: Slow-break
Tightening torque: 0.8…1.2 N.m
Cable entry number: 3 plain holes for Pg 13.5 or ISO M20 cable gland
Body material: Zamak
Cover material: Stainless steel
Degree of protection: IP66
Operating Temperature: -25 … 70 °C
