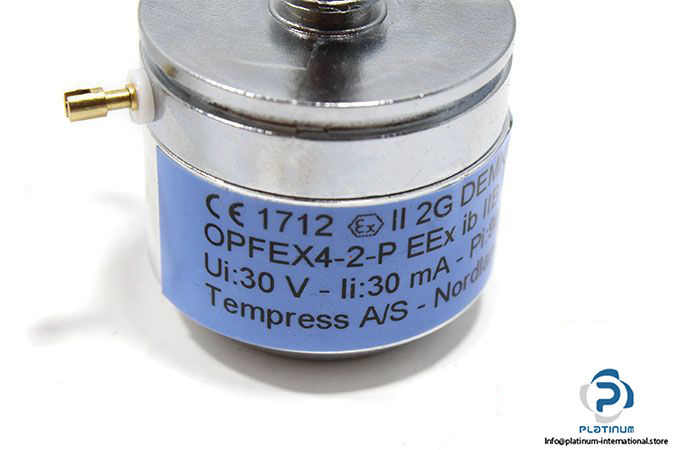

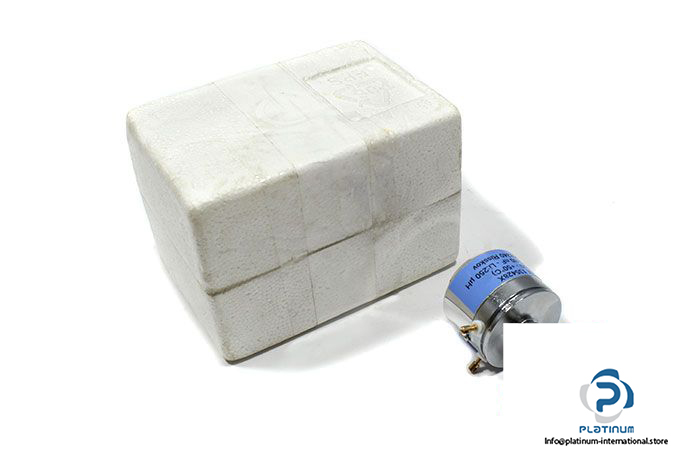

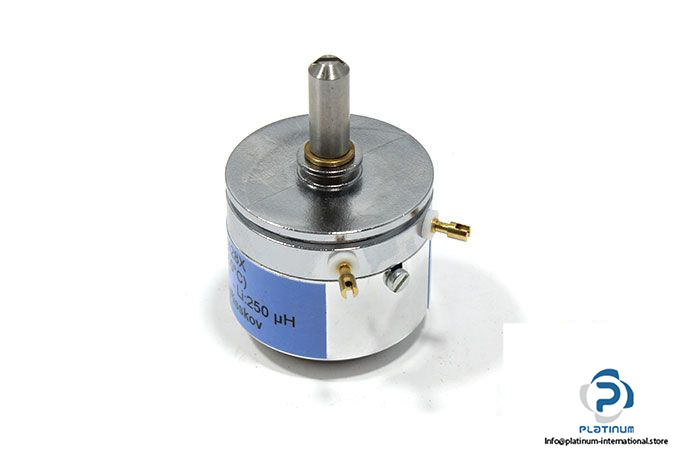

Tempress OPF Angular Position Transmitter

Manufacturer: TEMPRESS

Type: Angular Position Transmitter

Model: OPF

MRN: OPFEX4-2AP

Output signal: 4-20mA

Supply voltage: 14-30V DC

Material: Metalized plastic, SS

Max torque: 0,002 Ncm

Dimension ( Diameter x Lengrh ): 31.3 x 31.5 mm

Shaft diameter: Ø6mm

Angle: 0-270gr

Temperature: -20 …  40 ° C

Weight: 0.045 kg
