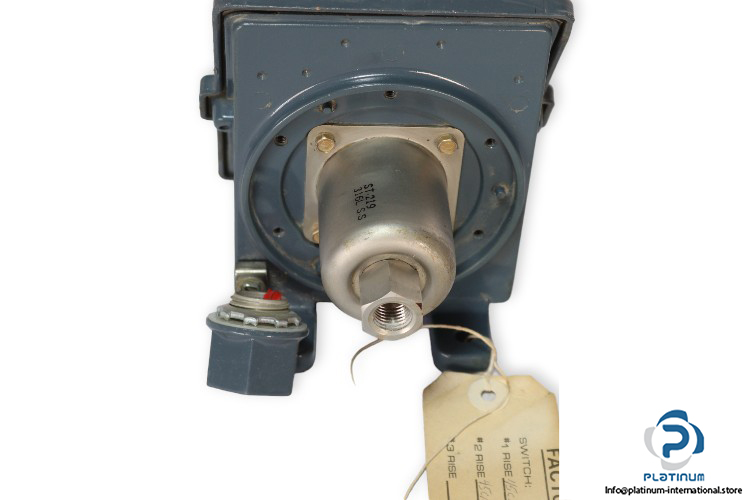

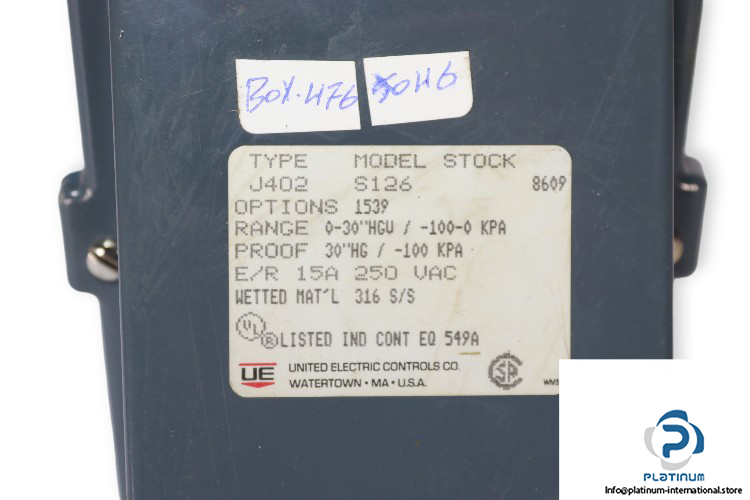

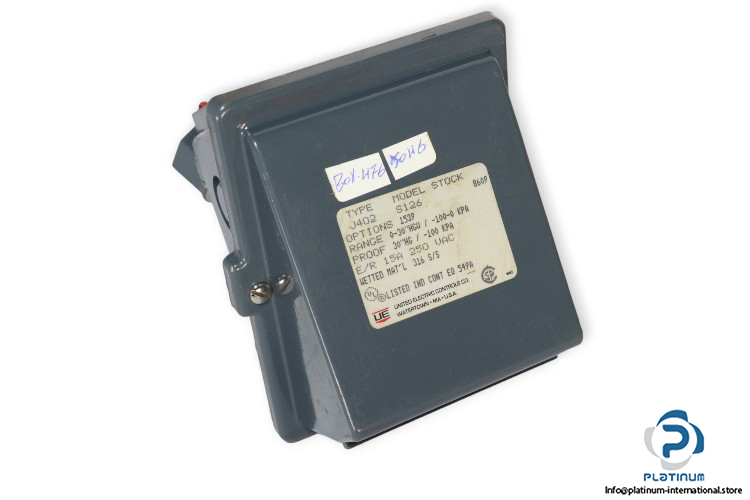

UE J402-S126 Pressure Switch

Manufacturer: UNITED ELECTRIC CONTROLS
Type: Pressure Switch
Model: S126
Part No.: J402–S126
MNR: 8609

Adjustable Set Point Range: 0 …30 “ HG Vacuum, -100 … 0 KPa
Proof Pressure: 30” HG ,-100 KPa
Connection: G ¼
Voltage Contact Rating: 250 V AC
Max. Current Rating: 15 A
Outputs: Two SPDT outputs; internal hex screw adjustment
Enclosure: Die cast aluminum, epoxy powder coated, gasketed, captive cover screws
Wetted Part Material: 316 stainless steel
