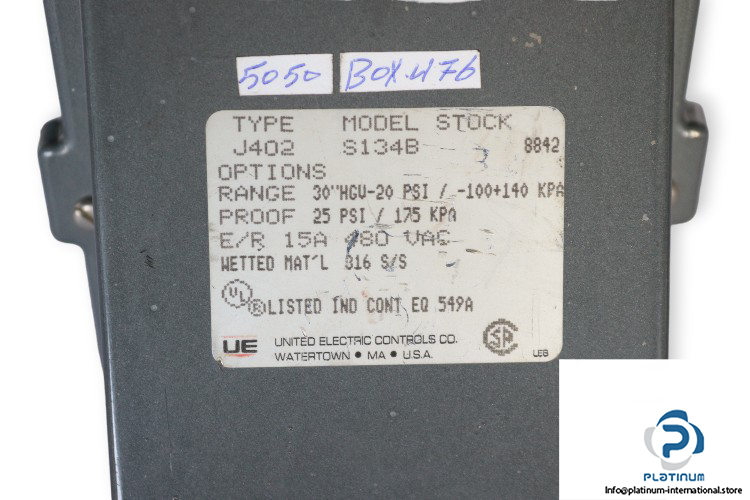

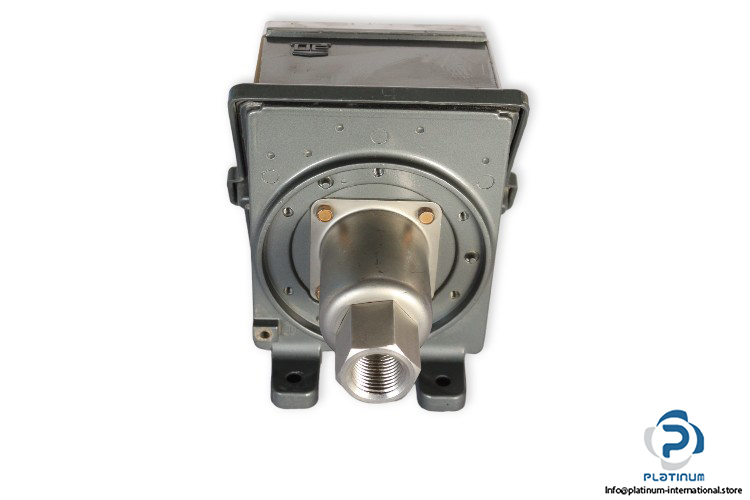

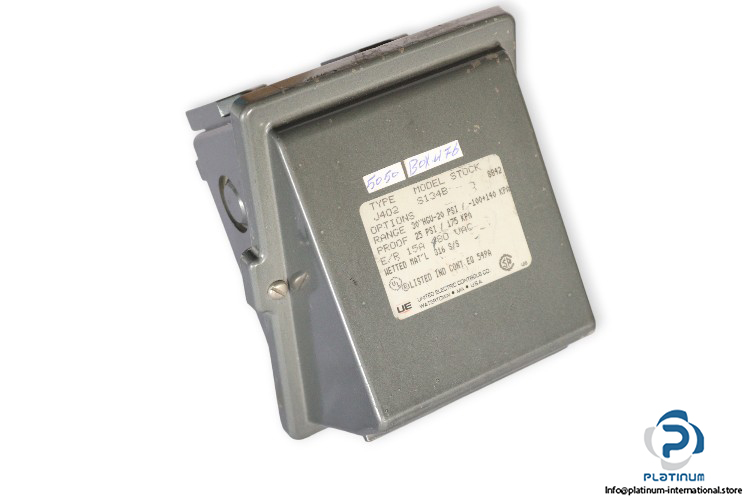

UE J402-S134B Pressure Switch

Manufacturer: UNITED ELECTRIC CONTROLS
Type: Pressure Switch
Model: S134B
Part No.: J402–S134B
MNR: 8842

Adjustable Set Point Range: 30”HG Vacuum to 20 Psi , -100 … 140 KPa
Proof Pressure: 25 Psi ,175 Kpa
Scale Division: 2 ”Hg & 2 psi
Connection: G ½
Voltage Contact Rating: 480 V AC
Max. Current Rating: 15 A
Outputs: Two SPDT outputs; internal hex screw adjustment
Enclosure: Die cast aluminum, epoxy powder coated, gasketed, captive cover screws
Wetted Part Material: 316 stainless steel
