Wago 750-432 Digital Output Module

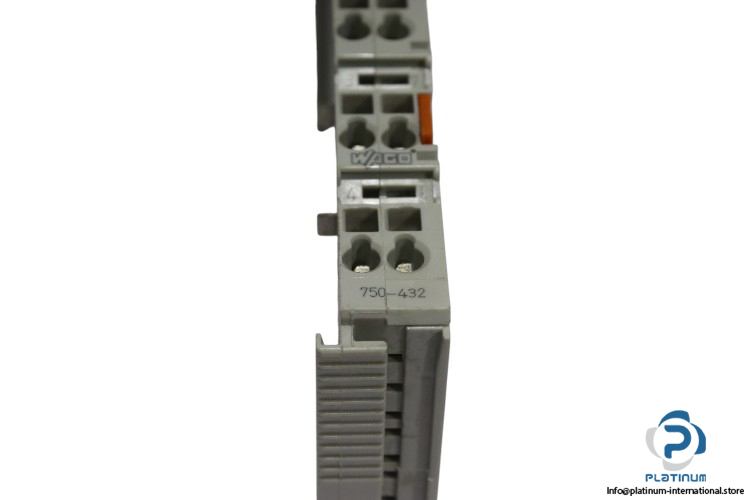

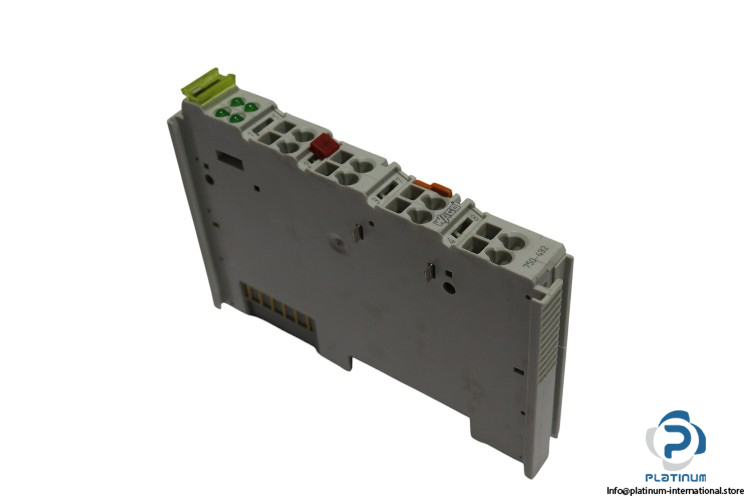

WAGO 750-432 Digital Output Module

The WAGO 750-432 is a 4-channel digital output module designed for precise and efficient signal control in industrial automation systems. Operating at 24 VDC, it provides reliable switching of digital signals with robust electrical isolation and compact design. This module supports 2-wire sensor connections and is ideal for applications requiring fast response and dependable performance in distributed I/O systems.

• Manufacturer: WAGO
• Type: Digital Output Module
• Model: 750-432

Technical Specifications:

• Signal Type: Digital (24 VDC)
• Number of Digital Outputs: 4
• Total Channels: 4
• Isolation Voltage: 500 V
• Sensor Connection: 4 x (2-wire)
• Input Current per Channel (Signal 1): 4.5 mA (typ.)
• Voltage Range for Signal 0: -3 / 5 VDC
• Voltage Range for Signal 1: 15 / 30 VDC
• System Supply Current Consumption: 5.5 mA (5 V)
• Input Data Width (Internal): 4 Bit
• Housing Material: Polycarbonate, Polyamide 6.6
• Protection Type: IP20
• Operating Temperature: 0 / 55 °C
• Dimensions (H x W x D): 100 x 12 x 69.8 mm

Applications:

• Distributed I/O systems
• PLC-based automation solutions
• Machine control panels
• Process and factory automation
