Pneumatic System Pneumatic Valves

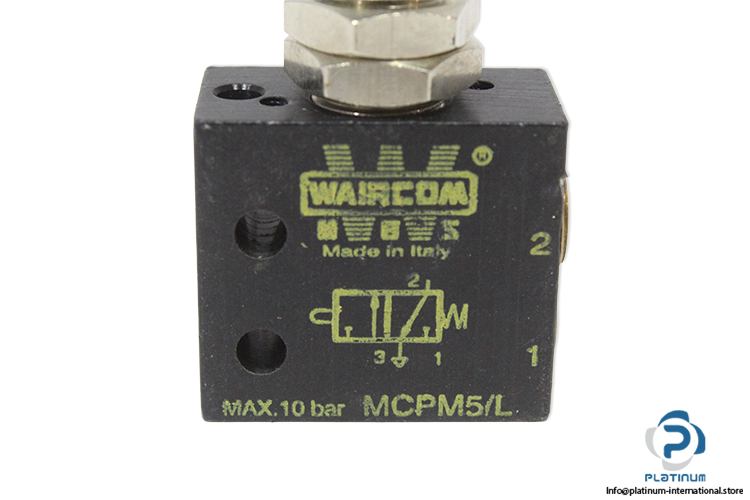

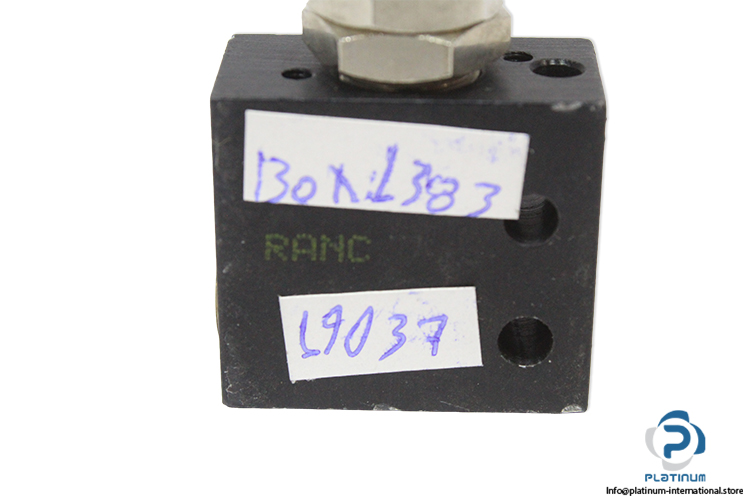

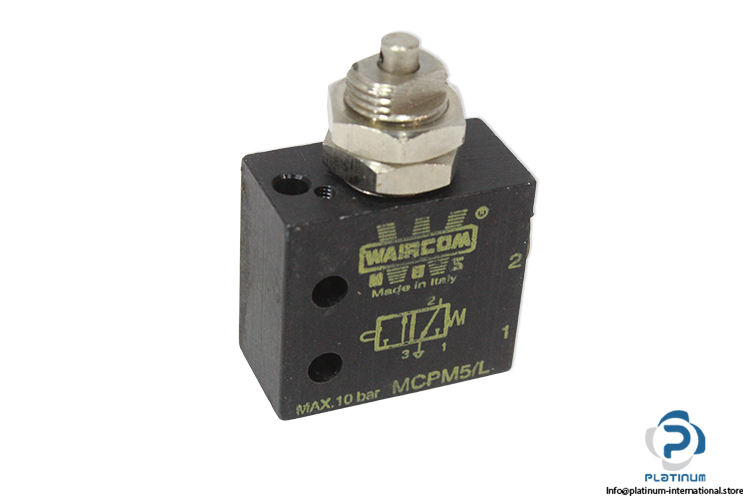

Waircom MCPM5/L Mechanical Valve

Name: WAIRCOM MCPM5/L MECHANICAL VALVE
SKU: 1096573
Availability: LimitedAvailability




Yeni

Stokta1 birimSevkiyata hazır

Mechanical Valve WAIRCOM MCPM5/L mechanical valve with plunger actuation, 3/2 normally closed function, and durable anodized aluminum body for pneumatic systems.

Üretici

WAIRCOM

SKU

1096573

Kategori

Pneumatic Valves

Koşul

Yeni

10 2 3 Actuated Air Aluminum bar Body Closed Com Control Industrial L M MCPM5 Mechanical Normally Plunger Pneumatic Series to Valve Waircom

Paylaş

Geniş Stok

Küresel Nakliye

Uzman Destek

Kalite Garantili

Series	M
Actuated	mechanically
Operating Pressure	2 to 10 bar
Working Temperature	0 to plus 60 degree Celsius
Function	3 /2 ,Normally Closed
Type of Actuation	Plunger
Actuation Force at 6 bar	13 N
Flow Rate at 6 bar and Pressure Drop of 1 bar	83 L/MIN
Fluid	Compressed air, filtered, continuously lubricated, unlubricated or dry lubricated
Port Size	Push in fittings for pipe diameter 4 millimeters, M5, G 1 by 8
Nominal Diameter	2.5 MM
Controls	Mechanical plunger
Body	Anodized aluminum alloy
Bushing and Guide	Nickel plated brass
Condition	New
SKU	1096573
Weight	0,06
