Waircom MCS4 Pneumatic Valve
Yeni
Stokta7 ünitelerSevkiyata hazır
Pneumatic Valve
The WAIRCOM MCS4 pneumatic valve is a 3 by 2 normally closed plunger valve operating from 2 to 10 bar, built with anodized aluminum and stainless steel for durable and precise air control.23AirAluminumbyClosedControlIndustrialMMCS4NormallyPlungerPneumaticPneumaticsSeriesspringstainlessSteelValveWaircom
Geniş Stok
Küresel Nakliye
Uzman Destek
Kalite Garantili

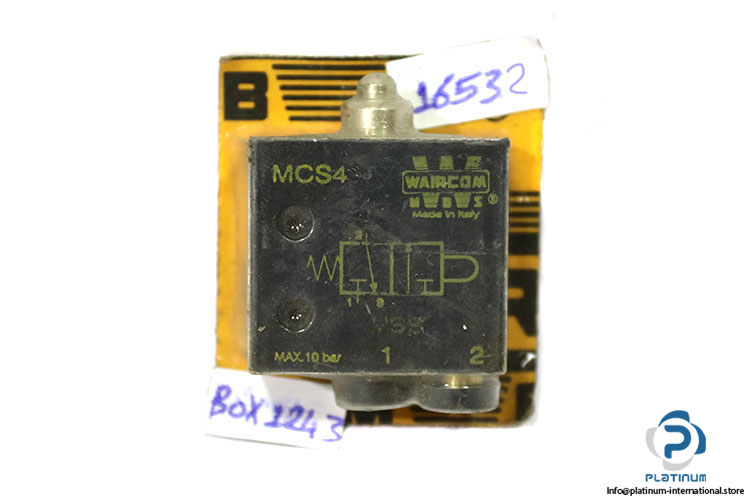

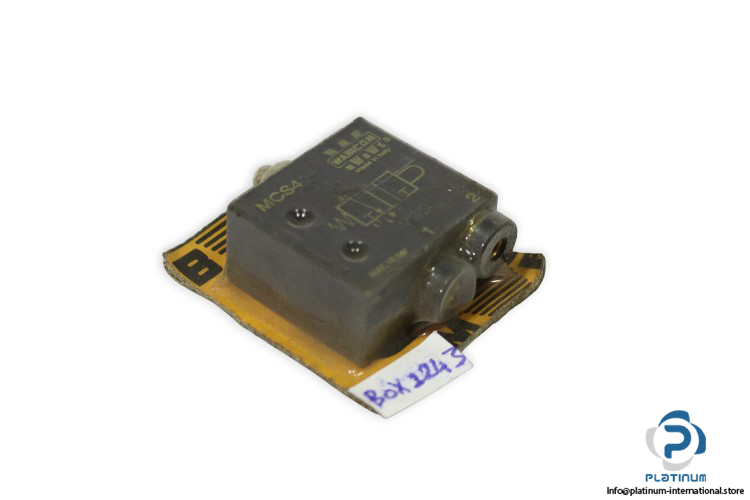

WAIRCOM MCS4 Pneumatic Valve
The WAIRCOM MCS4 Pneumatic Valve from the M series is a compact and reliable component designed for efficient control of compressed air in industrial automation systems. Its robust construction with anodized aluminum body and stainless steel springs ensures long life and consistent performance under various working conditions.
Manufacturer: WAIRCOM
Type: Pneumatic Valve
Model: MCS4
Series: M
| Operating Pressure | 2 to 10 bar |
| Working Temperature | 0 to plus 60 degree Celsius |
| Function | 3 by 2 Normally Closed |
| Type of Actuation | Plunger |
| Actuation Force at 6 bar | 13 Newton |
| Flow Rate at 6 bar and Pressure Drop of 1 bar | 83 Normal liters per minute |
| Fluid | Compressed air, filtered, continuously lubricated, unlubricated or dry lubricated |
| Port Size | Push in fittings for pipe diameter 4 millimeters, M5, G 1 by 8 |
| Nominal Diameter | 2.5 millimeters |
| Controls | Mechanical plunger, roller lever, unidirectional roller lever, manual tapper, actuators for panel mounting |
| Body | Anodized aluminum alloy |
| Bushing and Guide | Nickel plated brass |
| Springs | Stainless steel |
