Weidmuller TRS 24VDC 1CO Relay Module

Name: WEIDMULLER TRS 24VDC 1CO RELAY MODULE
SKU: 1056567
Availability: LimitedAvailability

weidmuller-TRS-24VDC-1CO-relay-module-(new)

weidmuller-TRS-24VDC-1CO-relay-module-(new)-1

weidmuller-TRS-24VDC-1CO-relay-module-(new)-2

weidmuller-TRS-24VDC-1CO-relay-module-(new)-3

Yeni

Stokta15 ünitelerSevkiyata hazır

Relay Module

The Weidmuller TRS24VDC1CO relay module operates at 24 V DC with a 6 A continuous current and features a 1 CO contact. Its compact design and screw connection method make it ideal for automation and control systems.

Üretici

WEIDMULLER

SKU

1056567

Kategori

Relays

Koşul

Yeni

24 6 a Automation Co connection Contact dc Industrial Module Relay screw Termseries TRS24VDC1CO V Weidmuller

Paylaş

Geniş Stok

Küresel Nakliye

Uzman Destek

Kalite Garantili

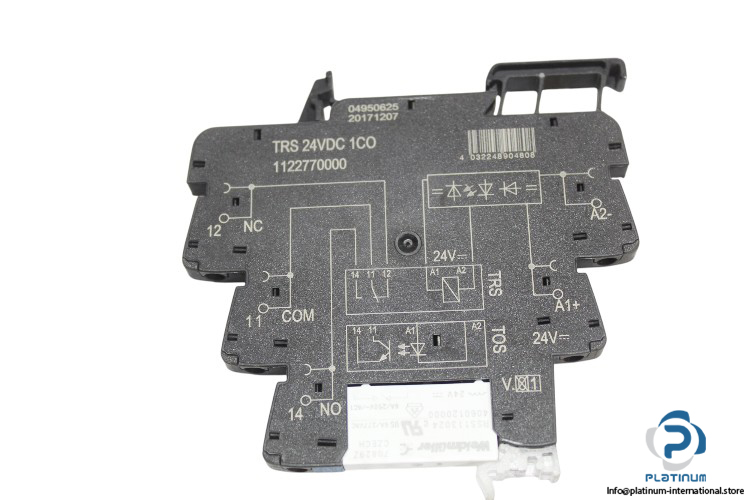

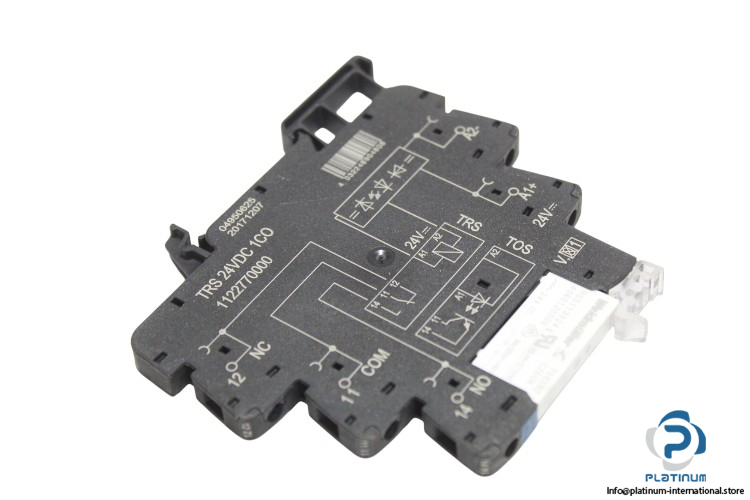

Weidmuller TRS24VDC1CO “ Relay Module

The Weidmuller TRS24VDC1CO relay module is designed for efficient and reliable switching in industrial control systems. With a 24 V DC rated control voltage and a compact design, it is ideal for a wide range of automation applications.

Manufacturer: Weidmuller

Type: Relay Module

Model: TRS24VDC1CO

Order No.: 1122770000

Series: TERMSERIES

Tightening Torque	max. 0.4 Nm
Rated Control Voltage	24 V DC
Rated Current	11.5 mA
Power Rating	280 mW
Rated Switching Voltage	250 V AC
Continuous Current	6 A
Wire Connection Method	Screw connection
Contact Type	1 CO contact
Operating Temperature	-40 to 60 °C
Dimensions (W x D x H)	6.4 x 87.8 x 89.6 mm
