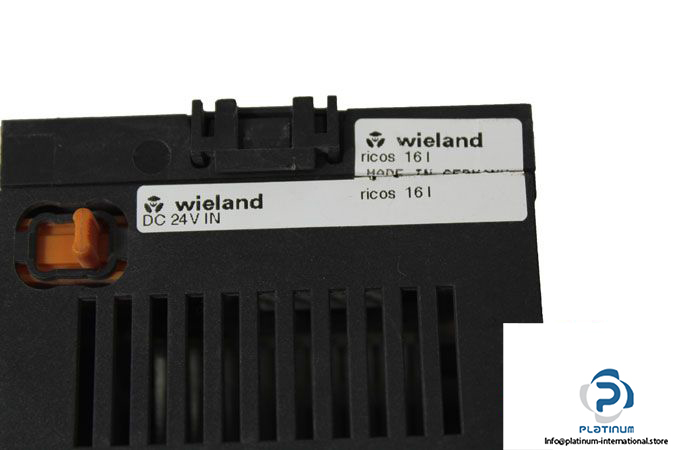

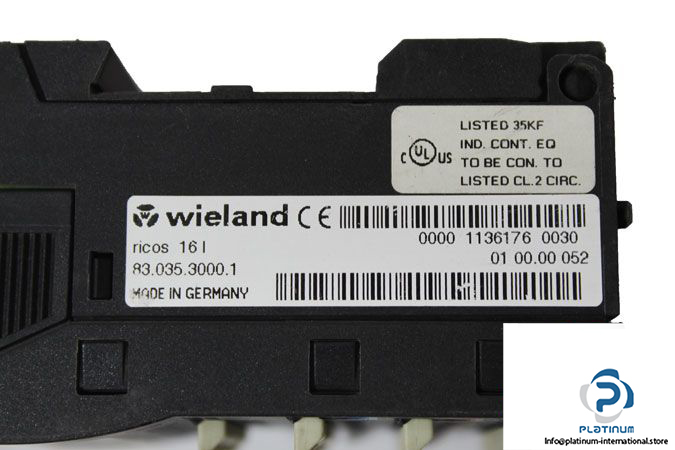

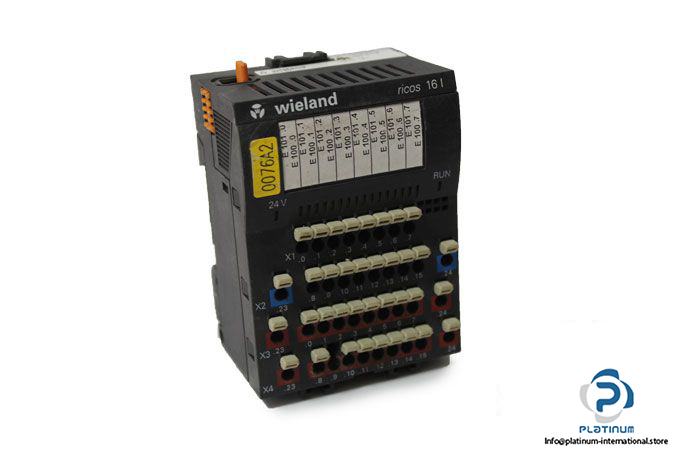

Wieland Ricos 16I Remote I/O Binary I/O Module

Manufacturer: WIELAND

Type: REMOTE I/O BINARY I/O MODULE

Model: RICOS 16I

Part No: 83.035.3000.1

Supply Voltage: 24 VDC

Number of Inputs: 16

Power Consumption: < 0.5 W
Switching Level “0” (EN 61131-2): -30 V…+5 V DC

Switching Level “1” (EN 61131-2): +15 V…+30 V DC

Input Current/Channel (At 24 V DC): 4.5 mA

Status Display: green LED

Maximum Voltage of Power Contact: 30 VDC

Maximum Current of Power Contact: 8 ADC

Ambient Temperature: 0…+55 °C

Dimensions: 92 X 69 X 51 mm

Weight: 0.16 Kg
