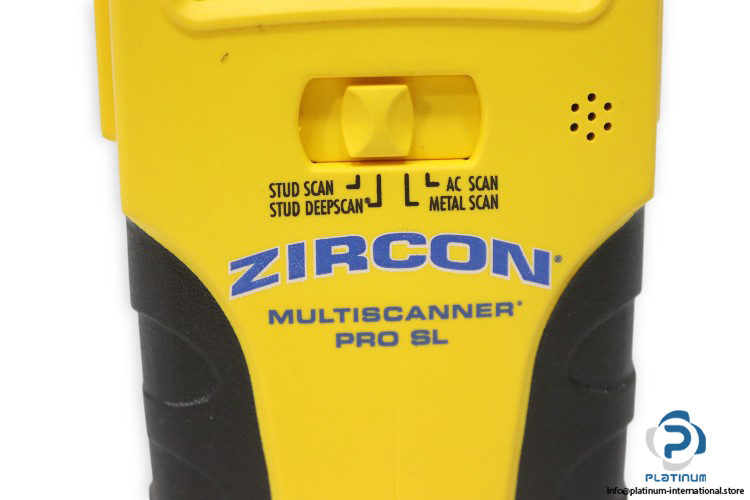

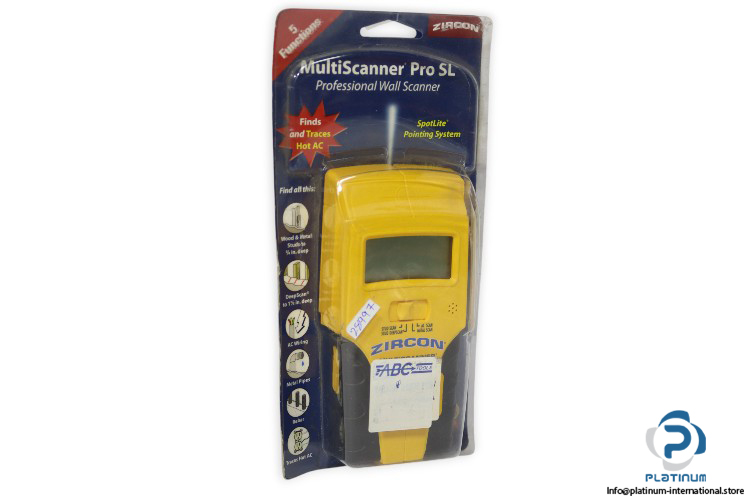

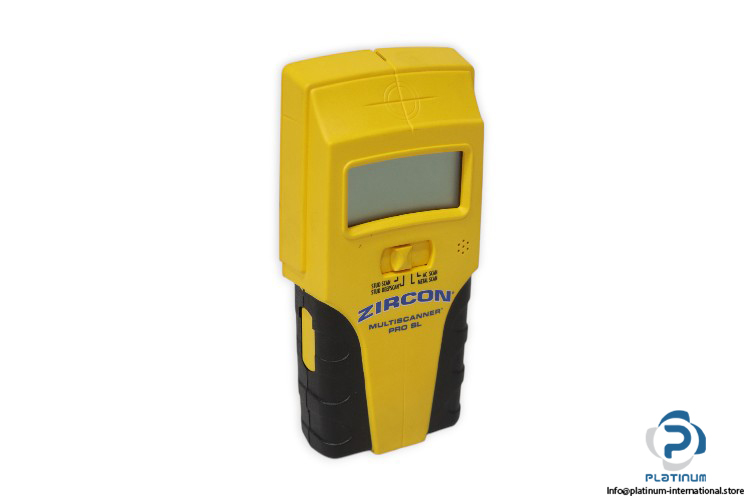

Zircon PRO SL Multiscanner
STUD & METAL LOCATOR
Zircon PRO SL electronic locator with AC tracing, supporting stud, deep, and metal scan modes with up to 76 mm depth, ±3“13 mm accuracy, splash resistance, and compact handheld design.Zircon PRO SL Electronic Stud & Metal Locator with AC Tracing
The Zircon PRO SL is a versatile electronic locator designed to detect studs, metal objects, and live AC wiring with high accuracy. Built for construction and inspection tasks, it features multiple scan modes, splash resistance, and compact handheld design for reliable use in demanding environments.
Manufacturer: Zircon
Type: Electronic Stud & Metal Locator with AC Tracing
Model: PRO SL
Part No.: 57251
Rev: B (03/00)
Function: 5
Position Accuracy:
Depth:
Up to 3/4 in. (19 mm) in Stud Scan Mode
Up to 1 1/2 in. (38 mm) in Deep Scan Mode
Up to 1 1/2 in. (38 mm) for copper in Metal Scan Mode
Up to 3 in. (76 mm) for rebar in Metal Scan Mode
| Battery Type | 9 V alkaline (not included) |
| Stud Scan Mode | within 1/8 in. (3 mm) |
| Deep Scan Mode | within 3/16 in. (5 mm) |
| Metal Scan Mode | within 1/2 in. (13 mm) |
| AC Position Accuracy | 90“250 V at 50“60 Hz within 150 mm of a hot unshielded wire |
| AC Depth | Typical depth of 2 in. (50 mm) |
| Operating Temperature | 20“120 °F (-7 to 49 °C) |
| Humidity | 80 % RH non-condensing |
| Water Resistance | Splash and water resistant (not waterproof) |
| Dimensions | 162 mm x 78 mm x 34 mm |
