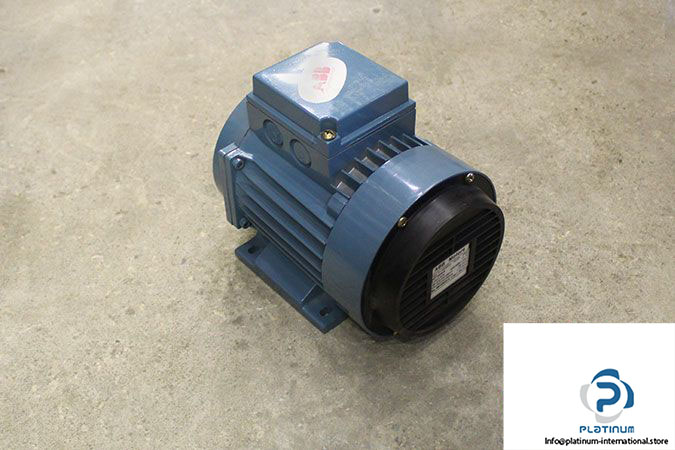

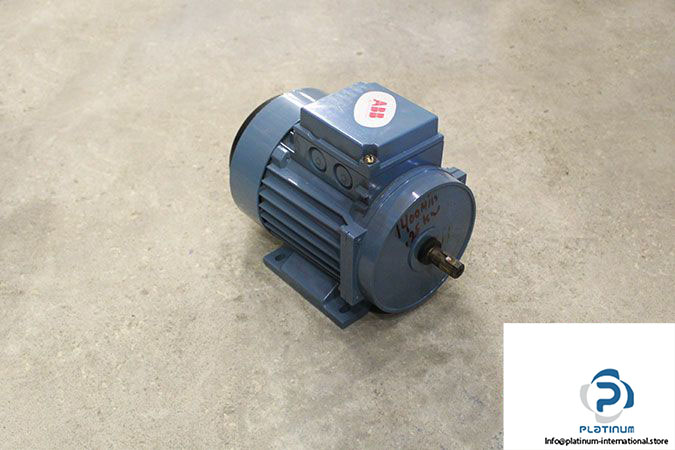

ABB MT71A14-4 3 Phase Electric Motor

Manufacturer: ABB

Type: 3 Phase Electric Motor

Model: MT71A14-4

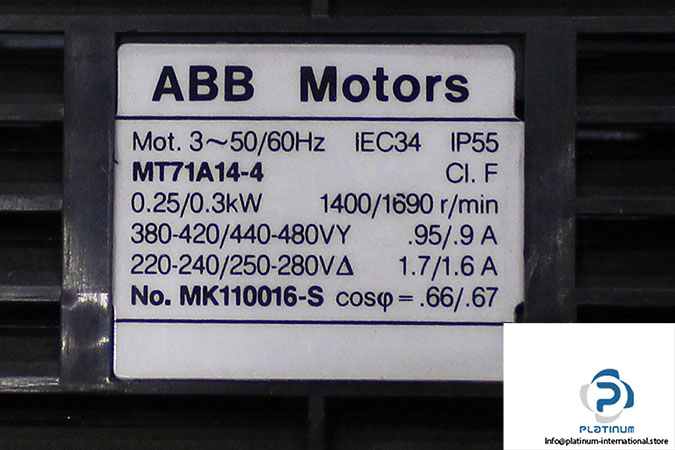

At 50 Hz

Rated Voltage (Star): 380…420 V

Rated Voltage (Delta): 220…240 V

Rated Current (Star): 0.95 A

Rated Current (Delta): 1.7 A

Rated Speed: 1400 min^-1

Power Factor: 0.66

Rated Power: 0.25 kW

At 60 Hz

Rated Voltage (Star): 440…480 V

Rated Voltage (Delta): 250…280 V

Rated Current (Star): 0.9 A

Rated Current (Delta): 1.6 A

Rated Speed: 1690 min^-1

Power Factor: 0.67

Rated Power: 0.3 kW

Shaft Diameter: 14 mm

Number of Poles: 4

Protection Class: IP55

Insulation Class: F

Weight: 5.5 kg
