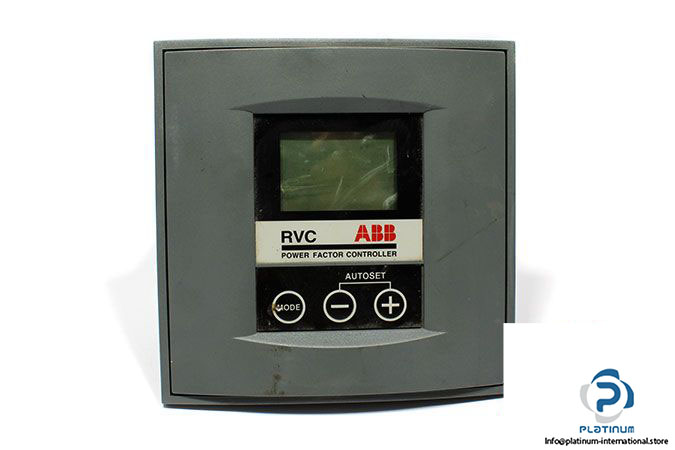

ABB RVC12 – 1/5A Power Factor Controller

Manufacturer: ABB

Type: Power Factor Controller

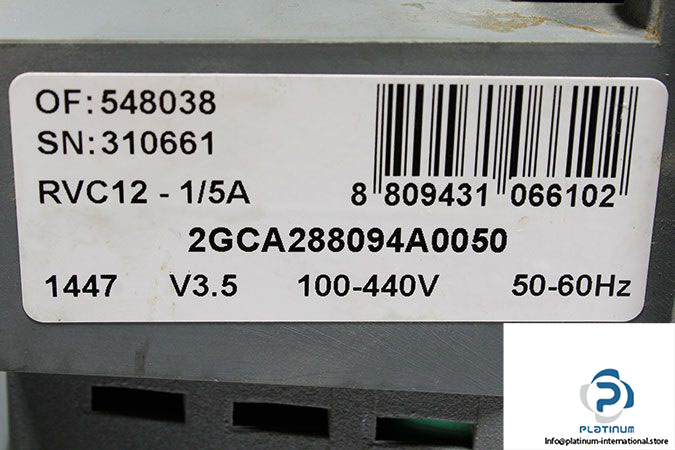

Model: RVC12-1/5A

MNR: 2GCA288094A0050

Measuring system: Micro-processor system for balanced three-phase networks or single-phase networks

Operating voltage: 100 … 240 V AC

Frequency range: 50 or 60 Hz

Current input: 1A or 5A (RMS)

Current input impedance: <0.1 Ohm
Output contact rating:

• Max. continuous current: 1.5A.
• Max. peak current: 5A.
• Max. voltage: 440 Vac.
• Terminal A is rated for a continuous current of 16A.

Consumption: 15 VA max.

Power outage reset delay time: 40s.

Power factor setting: From 0.7 inductive to 0.7 capacitive

Operating temperature: -10° C to 70° C.

Version: V3.5

Number of outputs: RVC 12: 12

Contacts: 2 Normally closed

Front plate protection: IP40

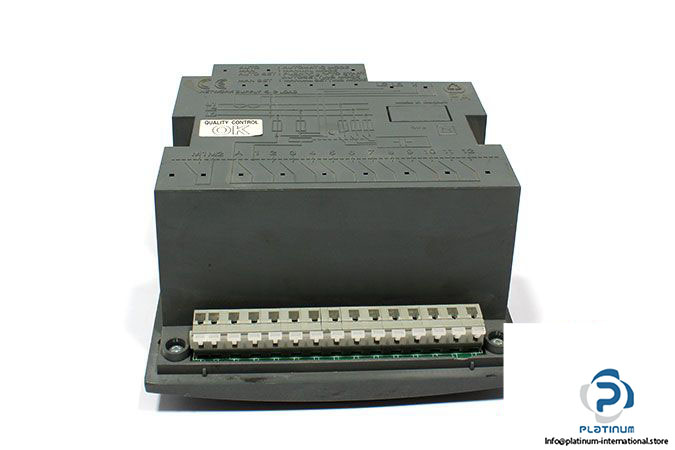

Connector: WAGO.

Dimensions: 144 x 144 x 80 mm

Weight: 0.4 kg
