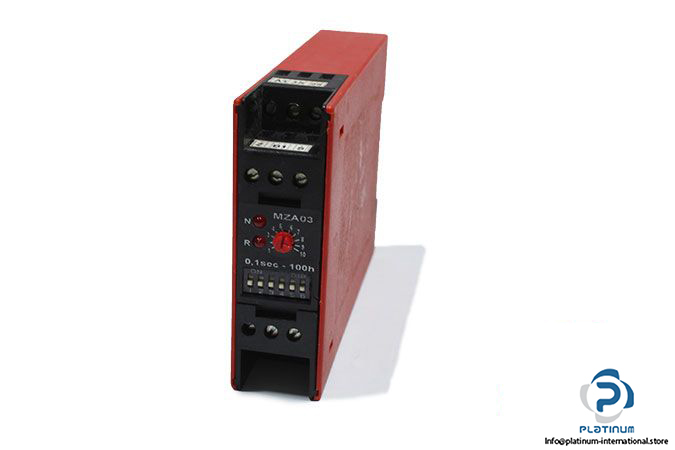

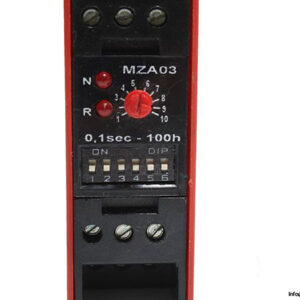

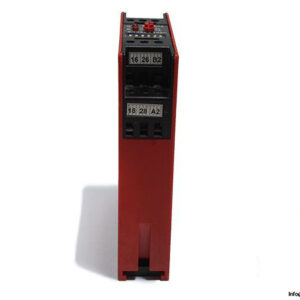

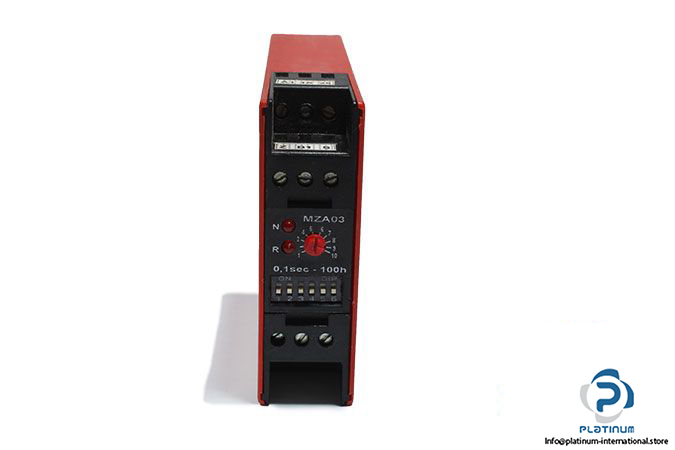

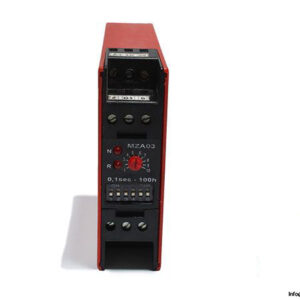

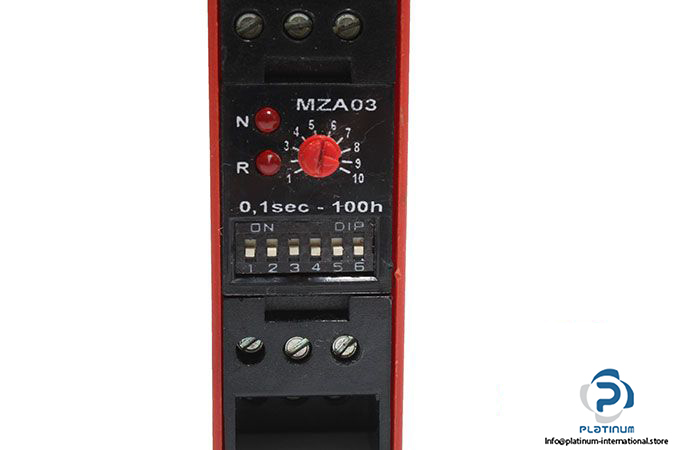

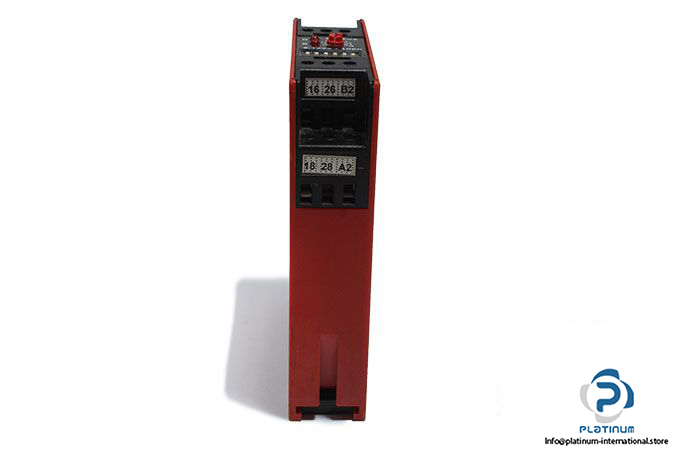

ADS MZA 03 Multifunction Time Relay

Manufacturer: ADS ELEKTRONIK

Type: Multifunction time relay

Model: MZA 03

Connection Voltage: 24 … 240 VAC

Time Range: 0.1 s  … 100 hrs

Power consumption: 230 V, 15 Ma ; 24 V, 20 mA

Ambient Temperature: -25 … + 70 °C

Recovery Time: <80 msec
Release Time: <10 msec
Relay Output: 2 changeover contacts 250V / 6A 90W / 720VA

Protection Class Housing/Terminals: IP 40 / IP 20

Dimensions: 22.9 X 98 X 75 mm
