Advantech ECU-1051 Communication Gateway Module
344,44$
وحدة بوابة اتصال تعد Advantech ECU1051 بوابة اتصال صناعية مصممة لتبادل البيانات بشكل موثوق في أنظمة الأتمتة و IIoT. مع دعم متعدد للواجهات يشمل RS-232/485 و Ethernet و Mini-PCIe، تضمن اتصالاً مستقراً في درجات حرارة وظروف صناعية واسعة.

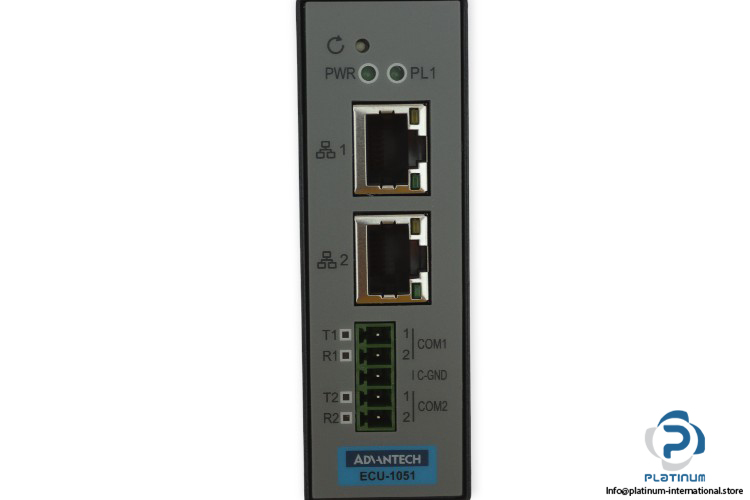

Advantech ECU1051 Communication Gateway Module
The Advantech ECU1051 is a compact and powerful communication gateway module designed for industrial automation and IIoT applications. It provides flexible data communication capabilities, enabling seamless integration between field devices and control networks. Built for reliability and high performance, this module supports multiple communication interfaces and wide temperature operation for demanding environments.
Manufacturer: Advantech
Type: Communication Gateway Module
Model: ECU1051
Part No.: ECU1051TLR10AAE
I/O Interfaces:
| Input Ratings | 10 / 30 V DC, 1.5 / 0.5 A |
| Serial Ports | 2 x RS-232/485 (Isolation Optional), 5-Pin Terminal Block, 50 / 115.2 kbps |
| LAN Ports | 2 x 10/100 Base-T Ethernet (RJ45) |
| Mini-PCIE | 1x Mini-PCIe (Full-size) for Wireless Module Signal: USB 2.0 |
| Connection | 1 x 3-Pin Terminal Block |
| Temperature | -70 / 70 °C |
| Protection Class | IP30 |
| Dimensions | 114 x 30 x 92 mm |
