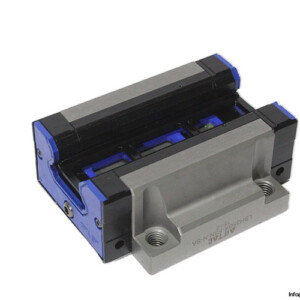

Airtac LSD25BK-HN-N-D-M6 Linear Guide Bearing Block
جديد
متوفر24 وحداتجاهز للشحن
Low Profile Linear Guide Bearing Block Airtac low profile linear guide bearing block with a compact square design, high load capacity, and precision linear motion for industrial automation and machine applications.
مخزون ضخم
شحن عالمي
دعم من خبراء
جودة مضمونة
| Series | LSD |
| Block Type | Square |
| Rail Width G | 23 mm |
| Total Height H | 33 mm |
| Block Width F | 48 mm |
| Block Length C | 83 mm |
| Distance between Bolt A | 35 mm |
| Bolt hole diameter | 11,2 mm |
| Mounting hole | M6 |
| Adapter type | Nipple |
| Accuracy Grade | Normal (N) |
| Preload | Standard / Clearance (D) |
| Basic Load Ratings | Dynamic C: 19.3 kN / Static C0: 34.7 kN |
| Allowable Static Moment | MRO: 0.36 kNm, Y axis MYO: 0.31 kNm, Z axis MPO: 0.31 kNm |
| Condition | New |
| Stock Key | CH001 |
| SKU | 1098006 |
| Weight | 0,45 |
