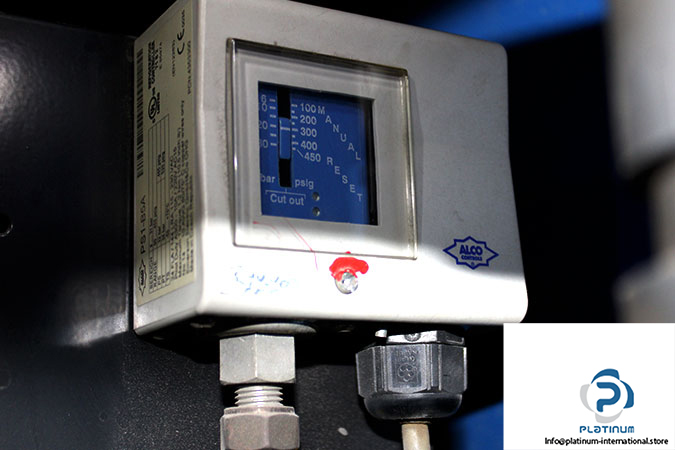

Alco PS1-B5A Pressure Control

Manufacturer: Alco
Type: Pressure Control

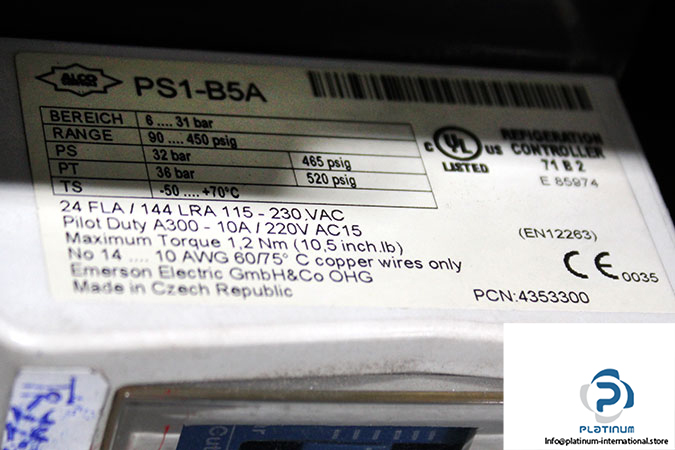

Model: PS1-B5A

Voltage: 115 … 230 V AC
Contact Configuration: 1 Changeover (CO)
Contact Voltage: 220 V AC
Contact Current: 10 A
Maximum Torque: 1.2 Nm
Mounting: Mounting Plate or As a Wall-Mounted Device Against A Flat Surface

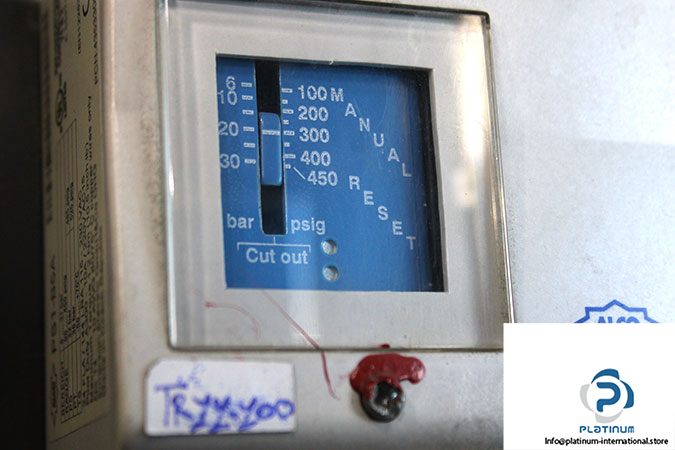

Upper Setpoint Pressure: 6 … 31 Bar
Maximum Pressure: 32 Bar
Total Pressure: 36 Bar
Pressure Connection: 7/16”-20 UNF
Operating Temperature: -50 … 70 °C
Degree of protection: IP44
