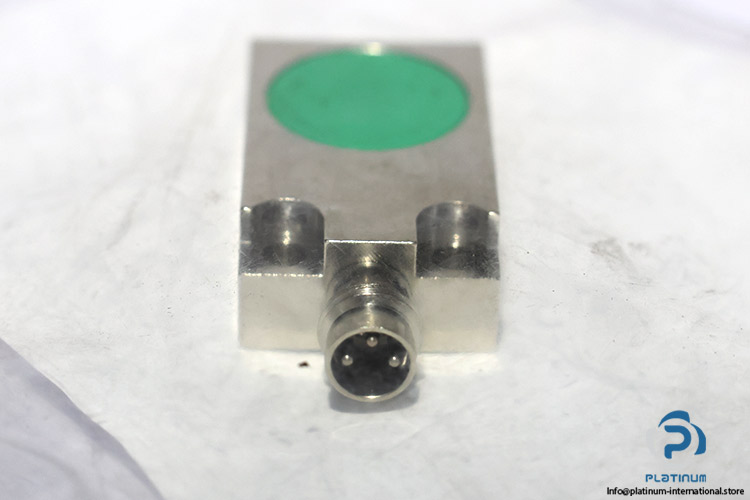

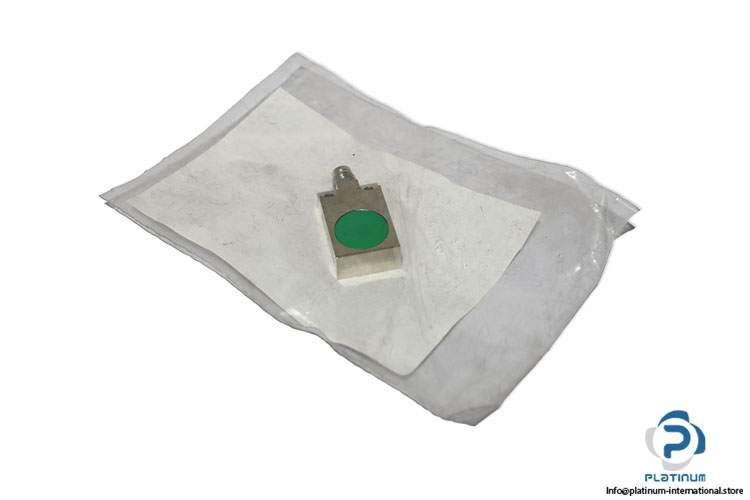

Baumer Iffm 20P3501/S35L Inductive Proximity Sensor
جديد
متوفر1 وحدةجاهز للشحن
Inductive Proximity Sensor BAUMER IFFM 20P3501/S35L sensor with PNP output, infrared light source, adjustable sensitivity, and IP67 protection for industrial automation applications.
مخزون ضخم
شحن عالمي
دعم من خبراء
جودة مضمونة
| Part No. | 10224524 |
| Mounting type | Flush |
| Nominal sensing distance Sn | 5 mm |
| Hysteresis | 3 … 20 % of Sr |
| Output indicator | 4 port LED red |
| Switching frequency | 1 kHz |
| Operating Voltage | 10… 50 V DC |
| Current consumption max. (no load) | 10 mA |
| Output circuit | PNP make function (NC) |
| Voltage drop Vd | 3 VDC |
| Current Rating | 200 mA |
| Design | Rectangular |
| Material (sensing face) | PBT |
| Housing material | Brass nickel plated |
| Dimension | 20 mm |
| Housing length | 32 mm |
| Connection types | M8 |
| Operating Temperature | -25 … 75°C |
| Protection class | IP 67 |
| Stock key | CON003 |
| Condition | New |
| SKU | 1100941 |
| Weight | 0,03 |
