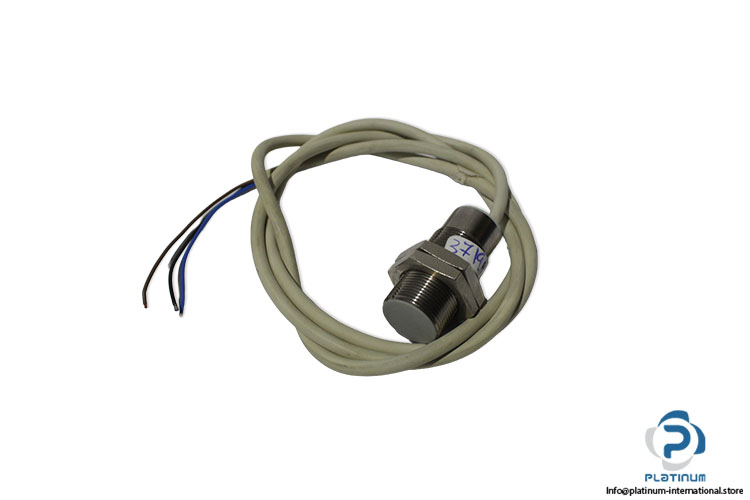

Baumer Mdrm 18U9524 0.9M Magnetic Angle Sensor
مستعمل
متوفر1 وحدةجاهز للشحن
Magnetic Angle Sensor Baumer MDRM18U9524 magnetic angle sensor with 160° linear measuring range, 1 to 9 VDC output, 0.09° resolution, and IP67 protection for industrial position sensing applications.
مخزون ضخم
شحن عالمي
دعم من خبراء
جودة مضمونة
| Code | J070 |
| Angular range | 160 degrees linear |
| Supply Voltage | 12 to 28 VDC |
| Current consumption | max. 20 mA |
| Output signal | 1 to 9 VDC |
| Working distance | max. 5 mm |
| Resolution | 0.09 degree |

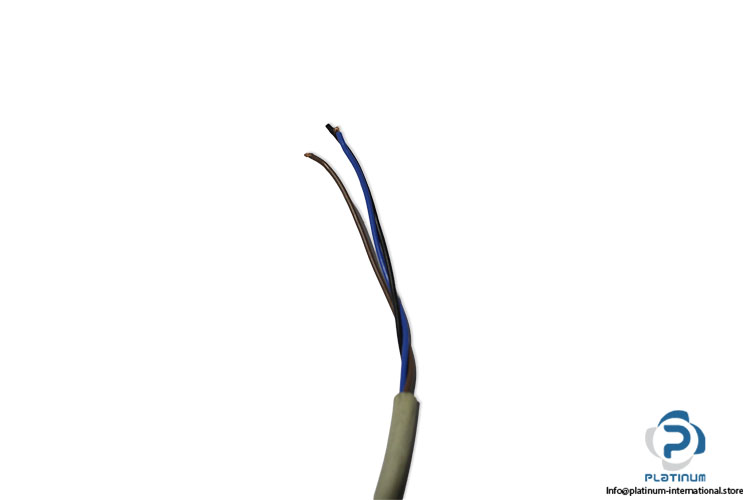

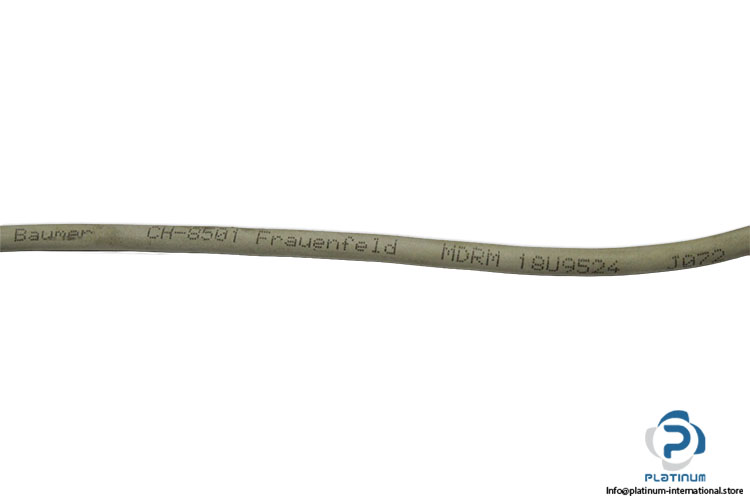

| Connection type | Cable PUR 3wires x 0,25, 90 cm |

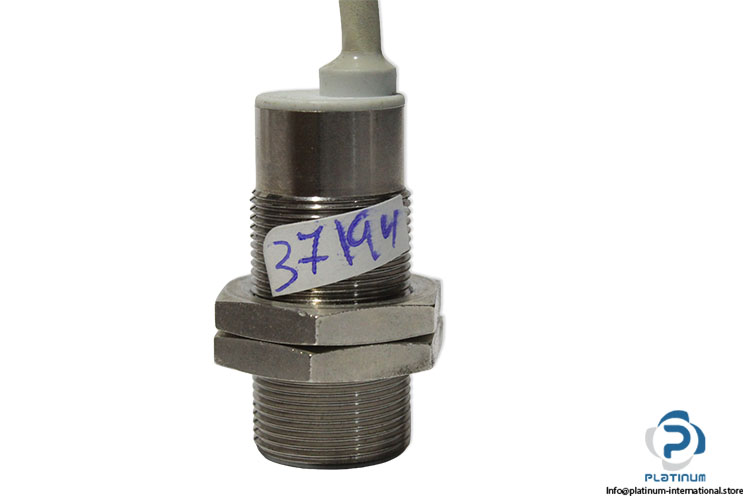

| Design | Cylindrical threaded |
| Housing material | Brass nickel plated |
| Operating temperature | -25 to +85 °C |
| Protection degree | IP 67 |
| Condition | Used |
| Stock Key | JO-004 |
| SKU | 1097915 |
| Weight | 0,06 |
