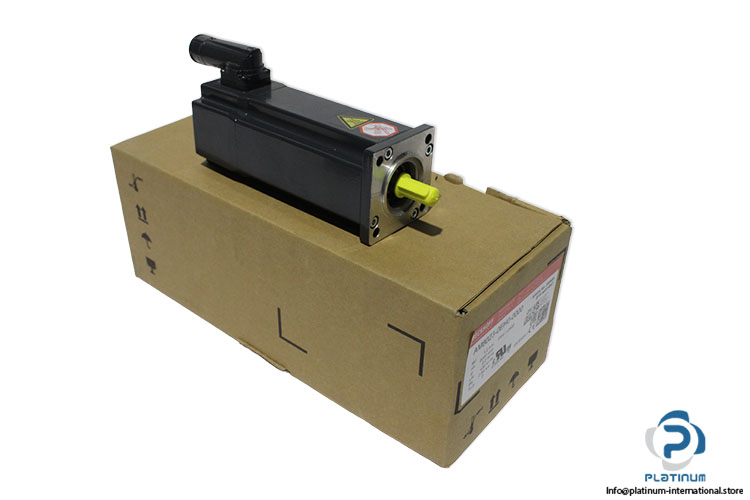

Beckhoff AM8023-0EH0-0000 Servomotor
جديد
متوفر16 وحداتجاهز للشحن
777,77$
Servomotor The BECKHOFF AM8023-0EH0-0000 is a high-speed servomotor delivering 0.84 kW power, 8000 rpm, and precise control with advanced encoder feedback and 400 V operation.
مخزون ضخم
شحن عالمي
دعم من خبراء
جودة مضمونة
| Part No. | 200489 |
| BTN stands | aa914067 |
| Rated Voltage | 400 V |
| Rated Speed | 8000 rpm |
| Stall Torque | 1.2 Nm |
| Rated Power | 0.84 KW |
| Stall Current | 2.2 A |
| standard | EN 60034-1 |
| Thermal class | F |
| suitable for | drive solutions with highest demands on dynamics and performance in the 100…480 V AC voltage range |
| Torque constant | 0.54 Nm/A |
| Rotor moment of inertia | 0.378 kgcm² |
| Motor feedback | resolver, single-turn absolute encoder |
| Cooling | convection |
| Connection technology | itec® plug |
| Ambient temperature (operation) | 5…40°C |
| Protection rating | IP54 |
| Design form | flange-mounted according to IM B5, IM V1, IM V3 |
| Material | aluminum |
| Coating/surface | acrylic powder-coated, dark gray, similar to RAL7016 |
| Shaft diameter | 9 mm |
| Stock key | JO-004 |
| Condition | New |
| SKU | 1096832 |
| Weight | 1,85 |
