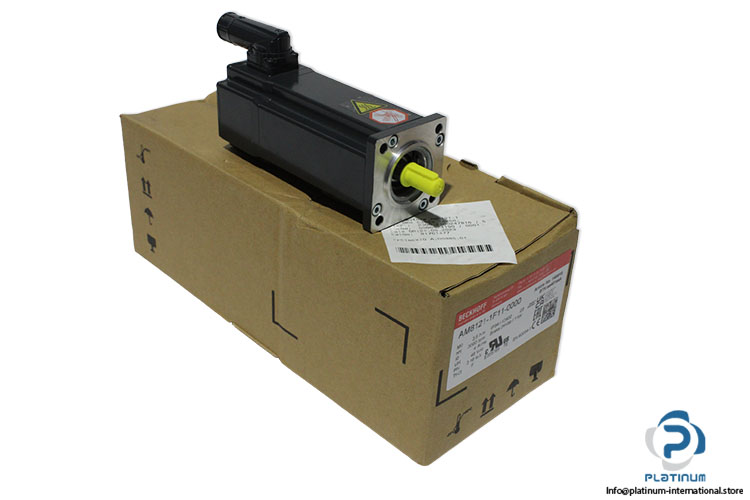

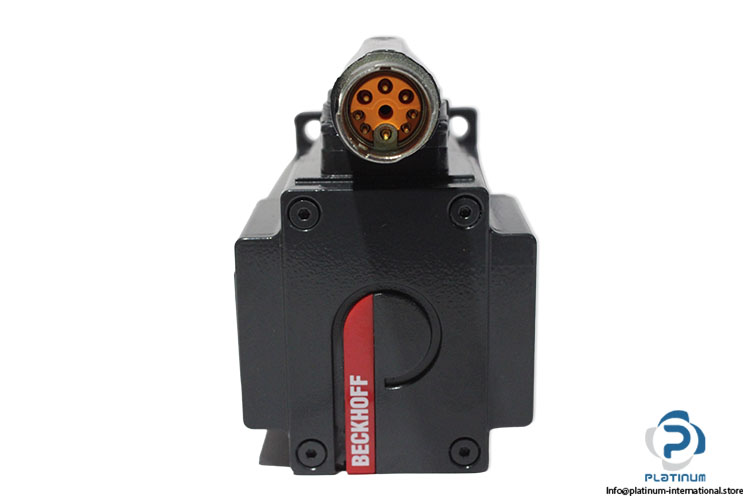

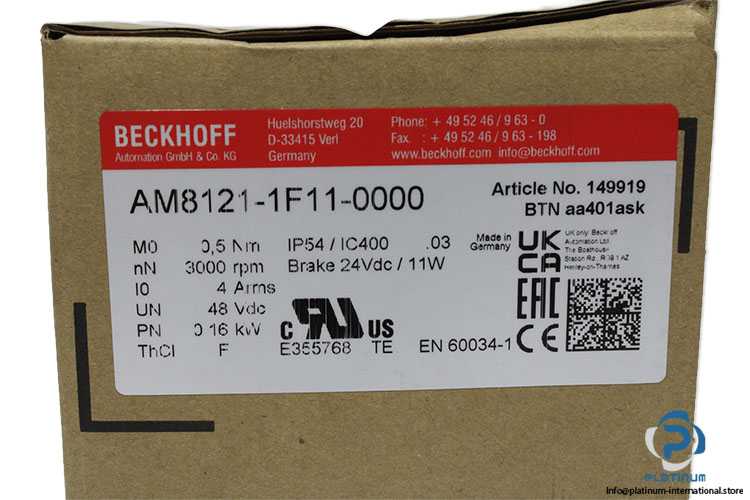

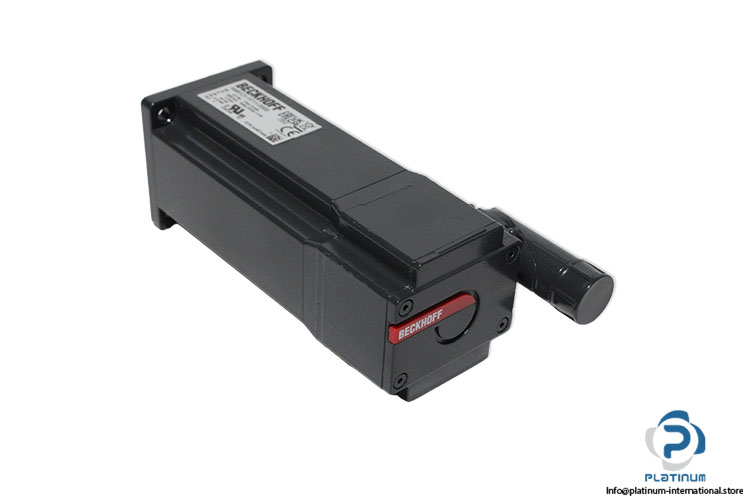

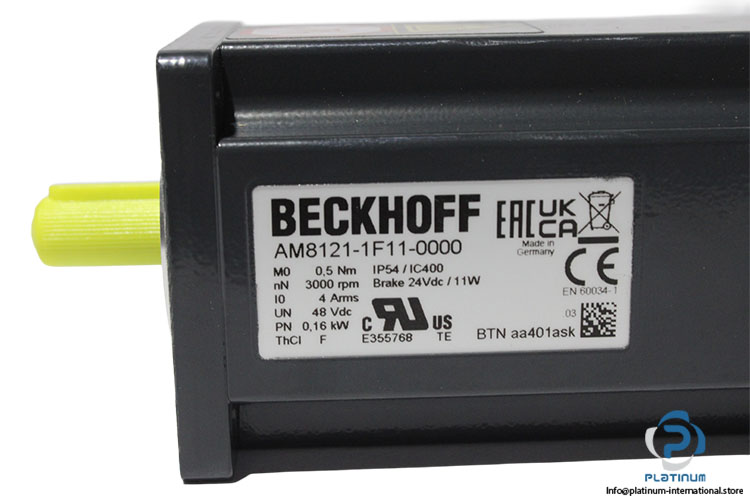

Beckhoff AM8121-1F11-0000 Servomotor
جديد
متوفر26 وحداتجاهز للشحن
444,44$
Servomotor The BECKHOFF AM8121-1F11-0000 is a 48 VDC servomotor with 3000 rpm speed, 0.5 Nm torque, and advanced encoder feedback, designed for precise industrial motion control.
مخزون ضخم
شحن عالمي
دعم من خبراء
جودة مضمونة
| Part No. | 149919 |
| BTN stands | aa401ask |
| Rated Voltage | 48 vdc |
| Rated Speed | 3000 rpm |
| Stall Torque | 0.5 Nm |
| Rated Power | 0.16 KW |
| Stall Current | 4 A |
| standard | EN 60034-1 |
| Brake Voltage, power | 24Vdc / 11W |
| Thermal class | F |
| Torque constant | 0.13 Nm/A |
| Rotor moment of inertia | 0.134 kgcm² |
| Motor feedback | resolver, single-turn absolute encoder |
| Cooling | convection |
| Connection technology | itec® plug |
| Ambient temperature (operation) | 5…40°C |
| Protection rating | IP54 |
| Design form | flange-mounted according to IM B5, IM V1, IM V3 |
| Material | aluminum |
| Coating/surface | acrylic powder-coated, dark gray, similar to RAL7016 |
| Shaft diameter | 9 mm |
| Stock key | JO-004 |
| Condition | New |
| SKU | 1096829 |
| Weight | 1,45 |
