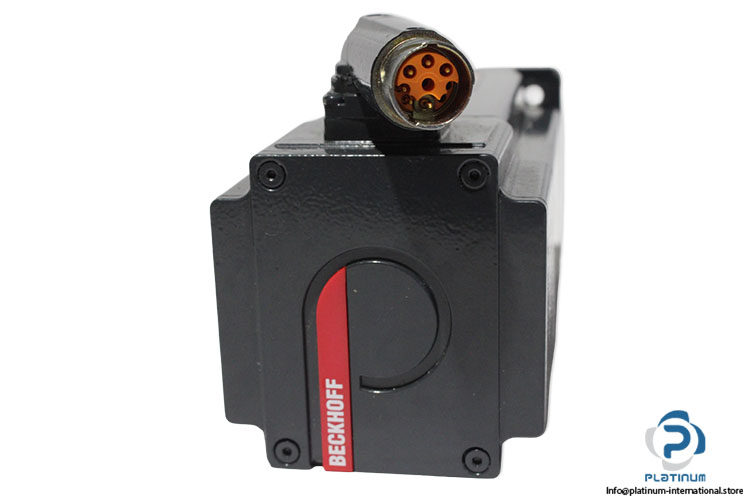

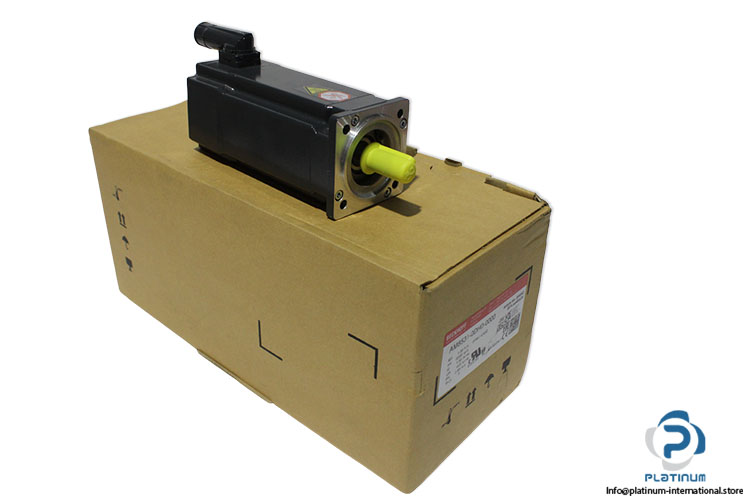

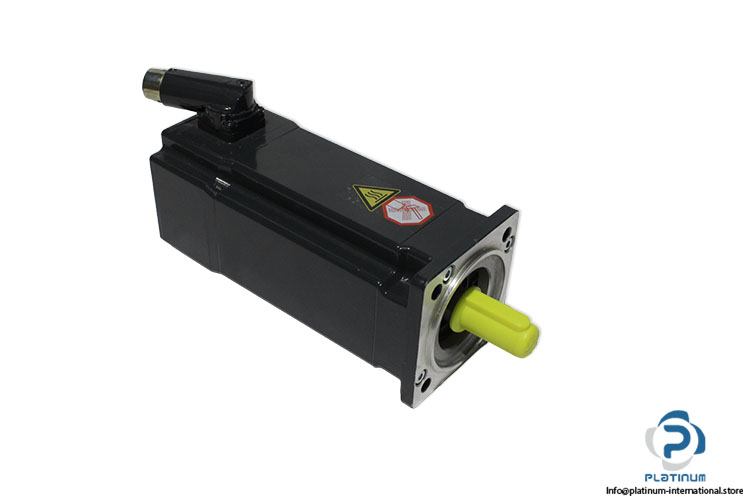

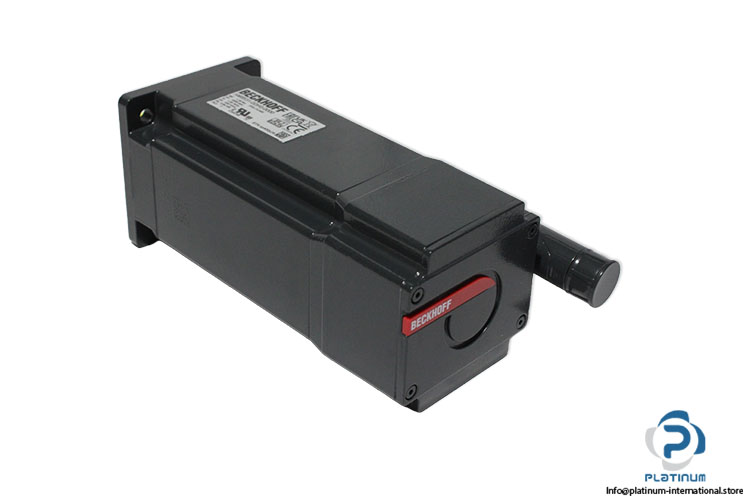

Beckhoff AM8531-0DH0-0000 Servomotor
جديد
متوفر7 وحداتجاهز للشحن
777,77$
Servomotor The BECKHOFF AM8531-0DH0-0000 is a 400 V servomotor with 6000 rpm speed, 0.84 kW power, and 1.38 Nm torque, designed for precise industrial motion control with IP65 protection and flange mounting.
مخزون ضخم
شحن عالمي
دعم من خبراء
جودة مضمونة
| Part No. | 208542 |
| BTN stands | aa400y24 |
| Rated Voltage | 400 V |
| Rated Speed | 6000 rpm |
| Stall Torque | 1.38 Nm |
| Rated Power | 0.84 KW |
| Stall Current | 1.95 A |
| standard | EN 60034-1 |
| Thermal class | F |
| Cooling | convection |
| Connection technology | itec® plug |
| Ambient temperature (operation) | 5…40°C |
| Rotor moment of inertia J [kgcm2] | 1.67 |
| Design form | flange-mounted according to IM B5, IM V1, IM V3 |
| Material | aluminum |
| Coating/surface | acrylic powder-coated, dark gray, similar to RAL7016 |
| Rotor moment of inertia with brake J [kgcm2] | 1.76 |
| Number of poles | 8 |
| Static friction torque MR [Nm] | 0.01 |
| Thermal time constant tTH [min] | 24 |
| Standard housing version | IP65 |
| Standard shaft feedthrough version | IP54 |
| Shaft feedthrough with shaft sealing ring | IP65 |
| Shaft diameter | 14 mm |
| Stock key | JO-004 |
| Condition | New |
| SKU | 1096826 |
| Weight | 2,65 |
