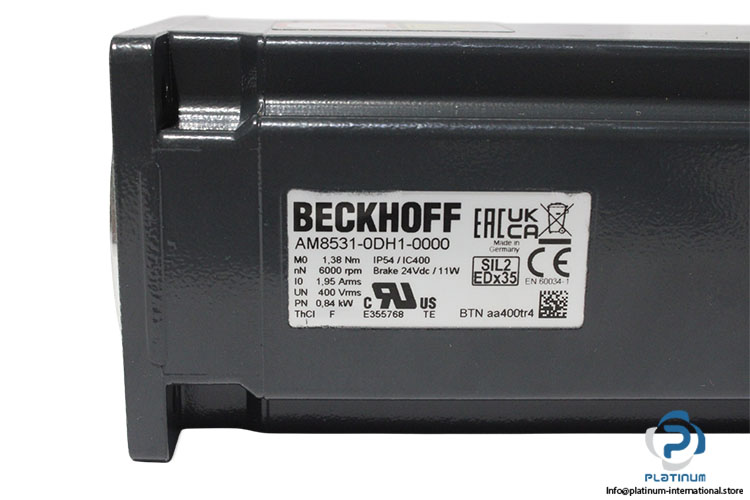

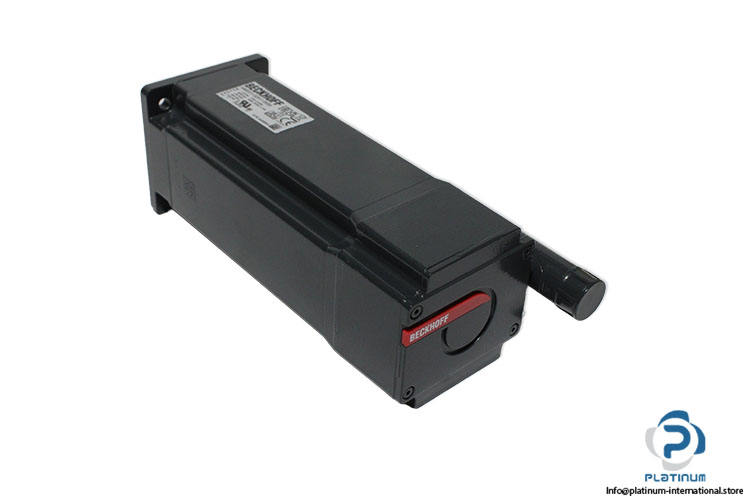

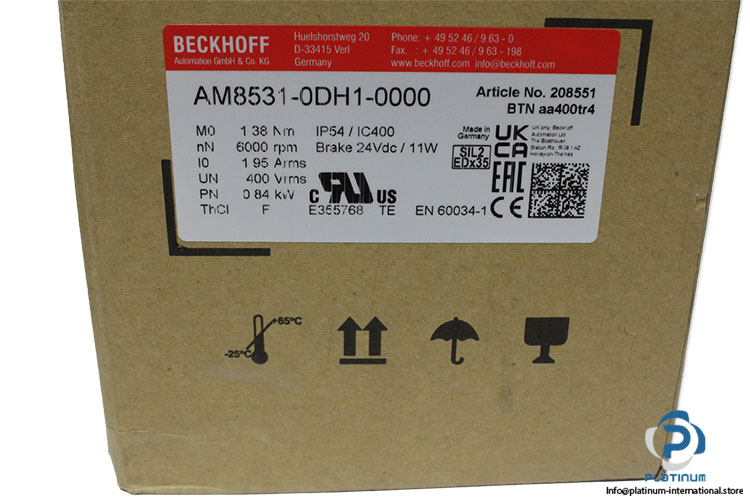

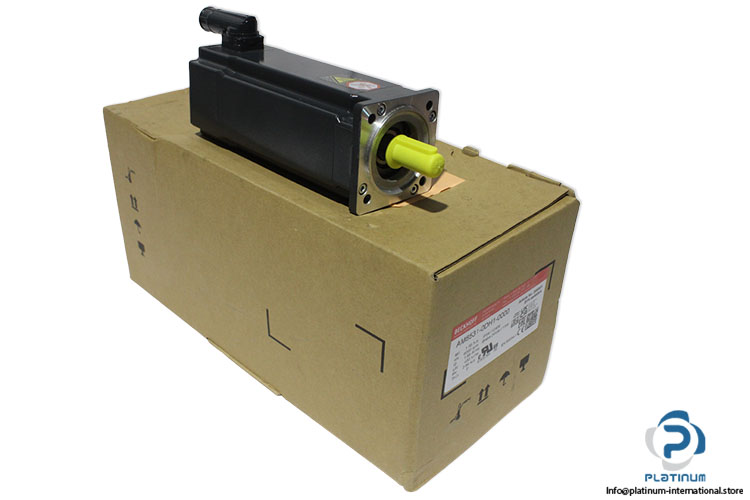

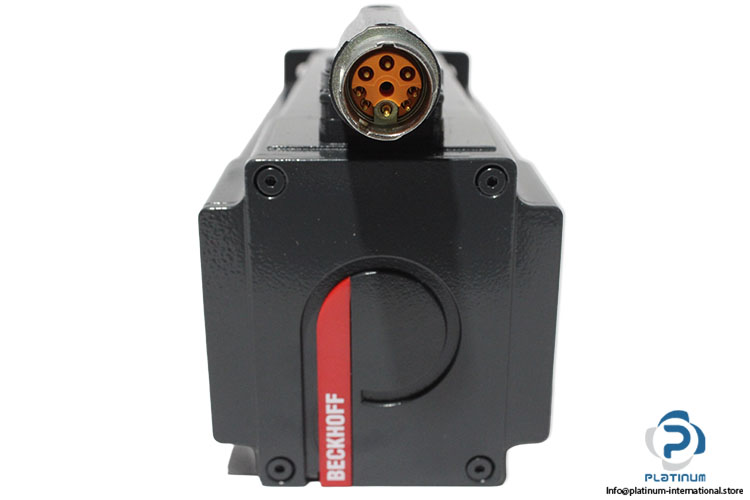

Beckhoff AM8531-0DH1-0000 Servomotor
جديد
متوفر4 وحداتجاهز للشحن
899,99$
Servomotor The BECKHOFF AM8531-0DH1-0000 is a precision servomotor delivering 0.84 kW power, 6000 rpm speed, and 1.38 Nm torque, designed for advanced automation systems with multiple encoder options and reliable performance.
مخزون ضخم
شحن عالمي
دعم من خبراء
جودة مضمونة
| Part No. | 208551 |
| BTN stands | aa400tr4 |
| Rated Voltage | 400 V |
| Rated Speed | 6000 rpm |
| Stall Torque | 1.38 Nm |
| Rated Power | 0.84 KW |
| Stall Current | 1.95 A |
| standard | EN 60034-1 |
| Thermal class | F |
| Brake Voltage, power | 24Vdc / 11W |
| Rotor moment of inertia J [kgcm2] | 1.67 |
| Rotor moment of inertia with brake J [kgcm2] | 1.76 |
| Number of poles | 8 |
| Static friction torque MR [Nm] | 0.01 |
| Thermal time constant tTH [min] | 24 |
| Protection rating | IP54 |
| Motor feedback | resolver, single-turn absolute encoder |
| Cooling | convection |
| Connection technology | itec® plug |
| Design form | flange-mounted according to IM B5, IM V1, IM V3 |
| Material | aluminum |
| Coating/surface | acrylic powder-coated, dark gray, similar to RAL7016 |
| Shaft diameter | 14 mm |
| Stock key | JO-004 |
| Condition | New |
| SKU | 1096834 |
| Weight | 2,9 |
