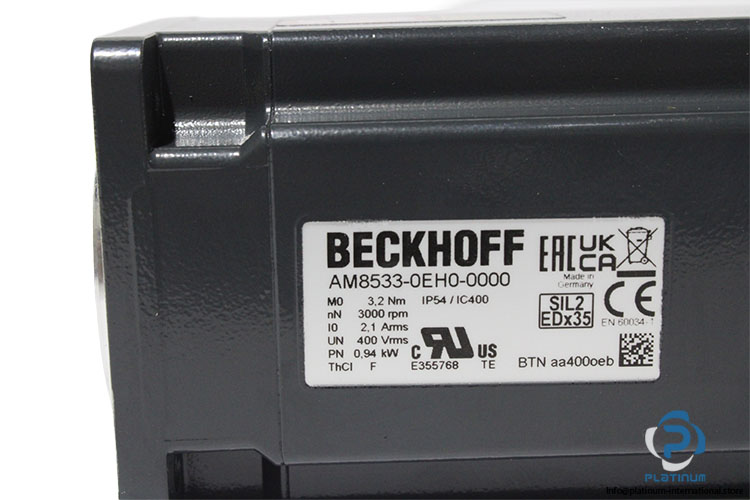

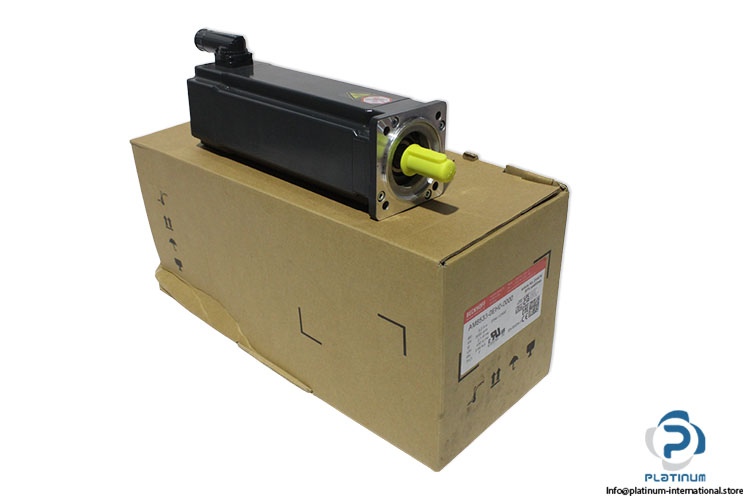

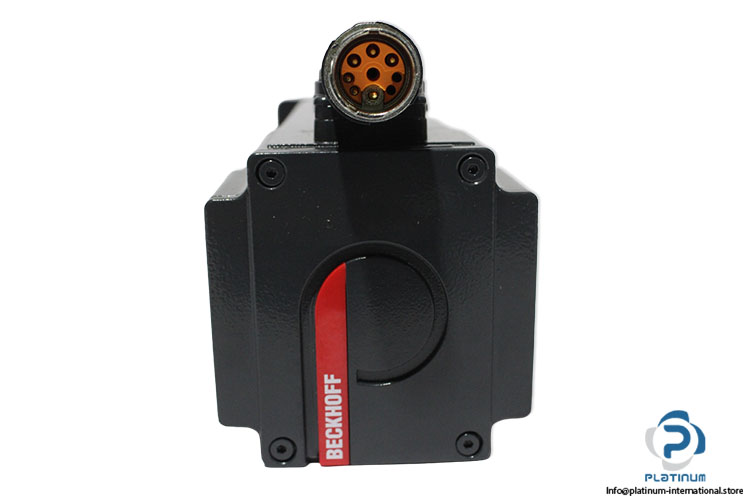

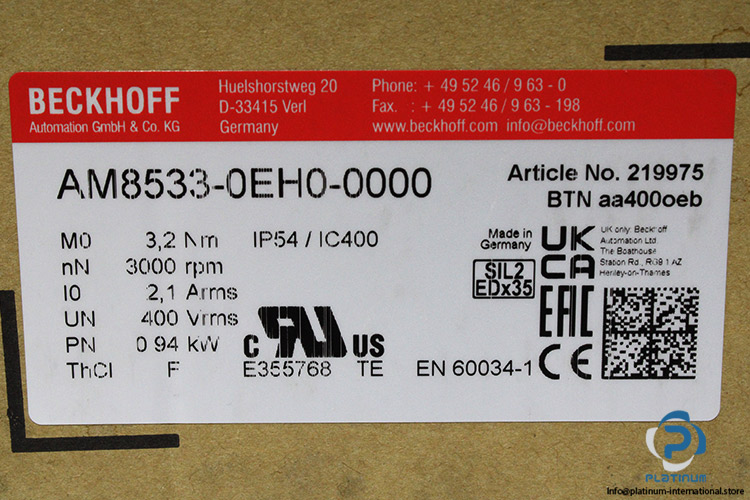

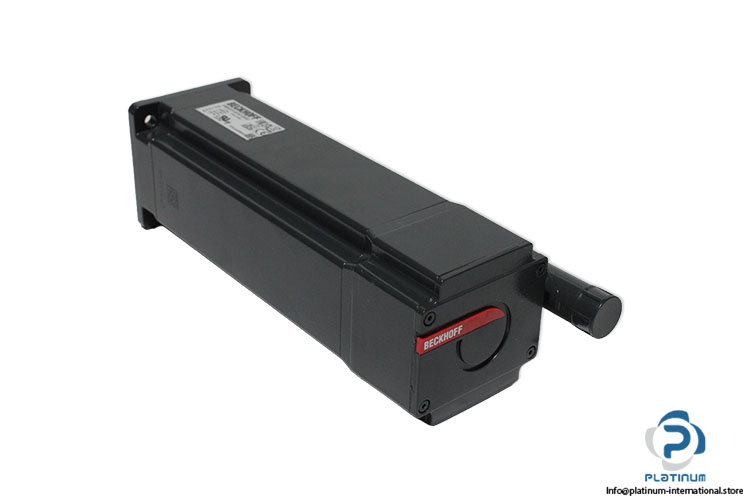

Beckhoff AM8533-0EH0-0000 Servomotor
جديد
متوفر12 وحداتجاهز للشحن
666,66$
Servomotor The BECKHOFF AM8533-0EH0-0000 servomotor delivers precise motion control with 400 V operation, 3000 rpm speed, and 3.2 Nm torque, featuring robust construction and IP65 protection.
مخزون ضخم
شحن عالمي
دعم من خبراء
جودة مضمونة
| Part No. | 219975 |
| BTN Stands | aa400oeb |
| Rated Voltage | 400 V |
| Rated Speed | 3000 rpm |
| Stall Torque | 3.2 Nm |
| Rated Power | 0.94 KW |
| Stall Current | 2.1 A |
| standard | EN 60034-1 |
| Protection rating | IP54, IP65 (shaft seal) |
| Design form | flange-mounted according to IM B5, IM V1, IM V3 |
| Material | aluminum |
| Coating/surface | acrylic powder-coated, dark gray, similar to RAL7016 |
| Thermal class | F |
| Rotor moment of inertia J [kgcm2] | 2.44 |
| Number of poles | 8 |
| Cooling | convection |
| Connection technology | itec® plug |
| Ambient temperature (operation) | 5…40°C |
| Static friction torque MR [Nm] | 0.02 |
| Thermal time constant tTH [min] | 28 |
| Standard housing version | IP65 |
| Standard shaft feedthrough version | IP54 |
| Shaft feedthrough with shaft sealing ring | IP65 |
| Shaft diameter | 14 mm |
| Stock key | JO-004 |
| Condition | New |
| SKU | 1096827 |
| Weight | 4 |
