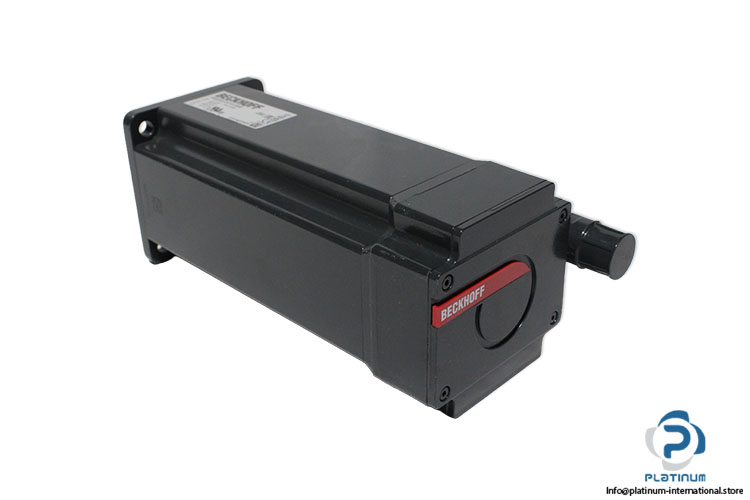

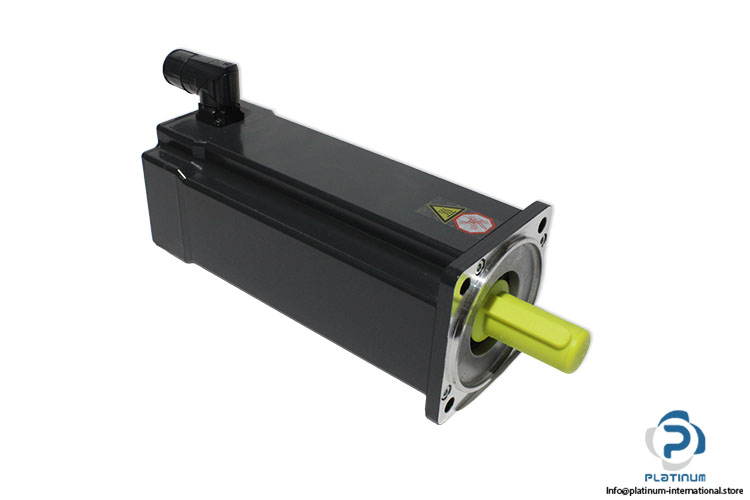

Beckhoff AM8553-0K10-0000 Servomotor

متوفر1 وحدةجاهز للشحن

1 555,55$

Servomotor The BECKHOFF AM8553-0K10-0000 servomotor delivers high torque, precision control, and reliable performance with 400 V operation, 4000 rpm speed, and advanced encoder options.

الشركة المصنّعة
BECKHOFF
SKU
1096839
الفئة
Servo Motors
الحالة
جديد
مشاركة
مخزون ضخم
شحن عالمي
دعم من خبراء
جودة مضمونة
Part No.114403
BTN standsaa835829
Rated Voltage400 V
Rated Speed4000 rpm
Stall Torque11.4 Nm
Rated Power3.5 KW
Stall Current8.8 A
standardEN 60034-1
Isolation classF
Peak current50.9 A
Torque constant1.29 Nm/A
Rotor moment of inertia12.4 kgcm²
Motor feedbackresolver, single-turn absolute encoder
Coolingconvection
Connection technologyM23 speedtec® plug
Ambient temperature (operation)5…40°C
Protection ratingIP54, IP65 (shaft seal)
Design formflange-mounted according to IM B5, IM V1, IM V3
Coating/surfaceacrylic powder-coated, dark gray, similar to RAL7016
Shaft diameter24 mm
Stock keyJO-004
ConditionNew
SKU1096839
Weight9,4
