Beckhoff AM8553-1NH0-0000 Servomotor

متوفر18 وحداتجاهز للشحن

1 222,22$

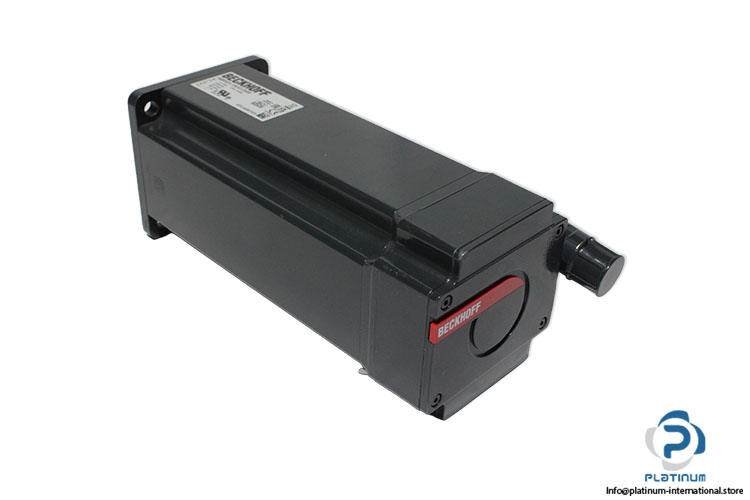

Servomotor The BECKHOFF AM8553-1NH0-0000 servomotor delivers precise motion control with 2 KW power, 7000 rpm speed, and 11.4 Nm torque, designed for high-performance automation systems.

الشركة المصنّعة
BECKHOFF
SKU
1096825
الفئة
Servo Motors
الحالة
جديد
مشاركة
مخزون ضخم
شحن عالمي
دعم من خبراء
جودة مضمونة
Part No.245986
BTN standsaa861529
Rated Voltage400 V
Rated Speed7000 rpm
Stall Torque11.4 Nm
Rated Power2 KW
Stall Current15.6 A
standardEN 60034-1
Protection ratingIP54, IP65 (shaft seal)
Design formflange-mounted according to IM B5, IM V1, IM V3
Materialaluminum
Coating/surfaceacrylic powder-coated, dark gray, similar to RAL7016
Coolingconvection
Connection technologyM23 speedtec® plug
Ambient temperature (operation)5…40°C
Isolation classF
Rotor moment of inertia J [kgcm2]12.40
Rotor moment of inertia with brake J [kgcm2]13.51
Number of poles8
Static friction torque MR [Nm]0.05
Thermal time constant tTH [min]40
Standard housing versionIP65
Standard shaft feedthrough versionIP54
Shaft feedthrough with shaft sealing ringIP65
Shaft diameter24 mm
Stock keyJO-004
ConditionNew
SKU1096825
Weight9,4
