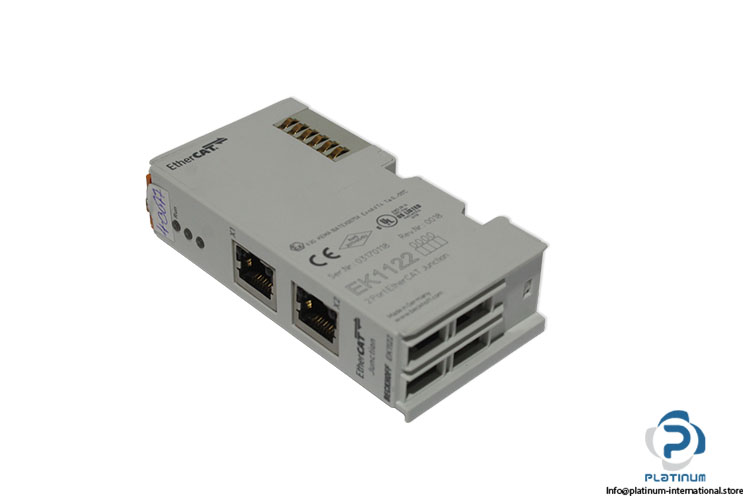

Beckhoff EK1122 2-PORT Ethercat Junction Terminal
مستعمل
متوفر1 وحدةجاهز للشحن
2-Port EtherCAT Junction Terminal Beckhoff EK1122 EtherCAT junction terminal with dual RJ45 interfaces, 100 Mbit/s data transfer, and compact DIN rail design for industrial automation networks.
جديد
متوفر
هذا المنتج متوفر أيضًا بحالة جديدة
عرض النسخة الجديدة ←
مخزون ضخم
شحن عالمي
دعم من خبراء
جودة مضمونة

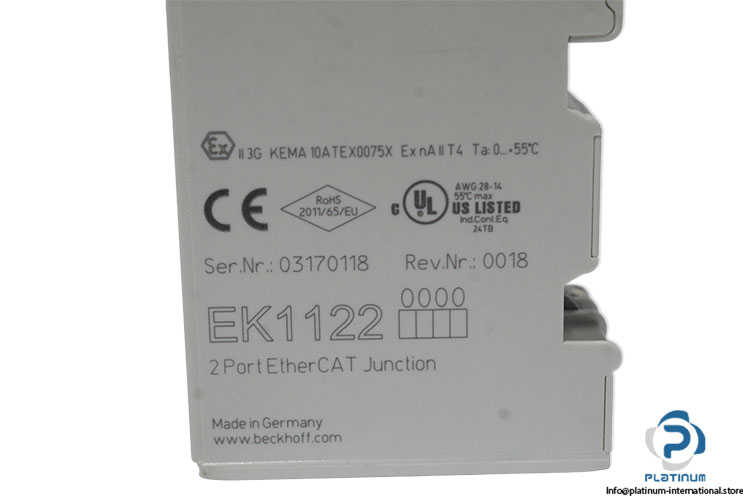

| Serial No. | 09170118 |
| Rev. Nr. | 0018 |
| Task within EtherCAT | system coupling of EtherCAT junctions |
| Data transfer medium | Ethernet/EtherCAT cable (min. Cat.5), shielded |
| Distance between stations | 100 m (100BASE-TX) |
| Protocol | EtherCAT |
| Delay | approx. 1 µs |
| Data transfer rates | 100 Mbit/s |

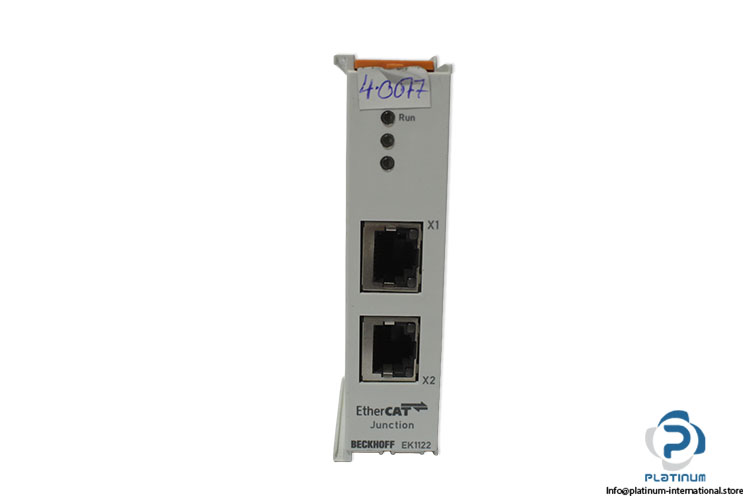

| Bus interface | 2 x RJ45 |
| Power supply from | E-bus |
| Current consumption | typ. 220 mA |
| Ambient temperature | 0 to 55°C |
| Material | polycarbonate |
| Certificate | CE, cULus |
| Standard APPROVED | CL L Zn2 AEx/Ex ec IC T4 Gc, KEMA 10ATEX0075 X, ExnA IC T4 Gc, Ex te mC T135?Dc, ECEx DEK 16.0078 X |
| Design form | compact terminal housing with signal LEDs |
| Installation | on 35 mm DIN rail, conforming to EN 60715 with lock |
| Side by side mounting by means of | double slot and key connection |
| Wiring | specific push-in connection |
| Dimensions | 24 x 100 x 52 mm |
| Stock key | CON003 |
| Condition | Used |
| SKU | 1101551 |
| Weight | 0,06 |
