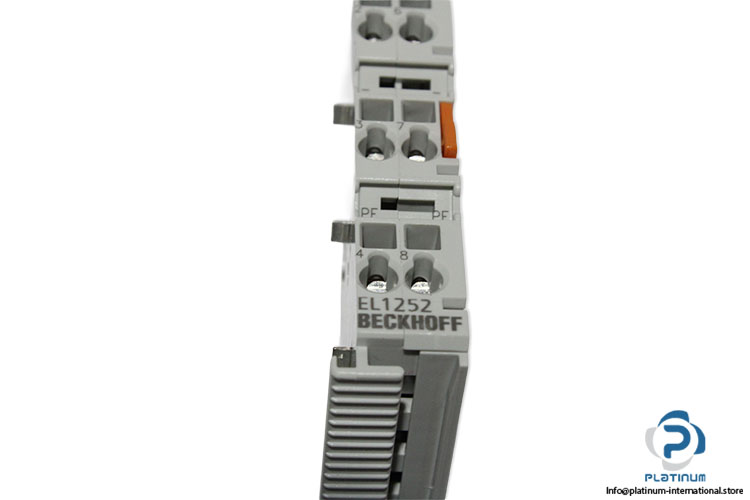

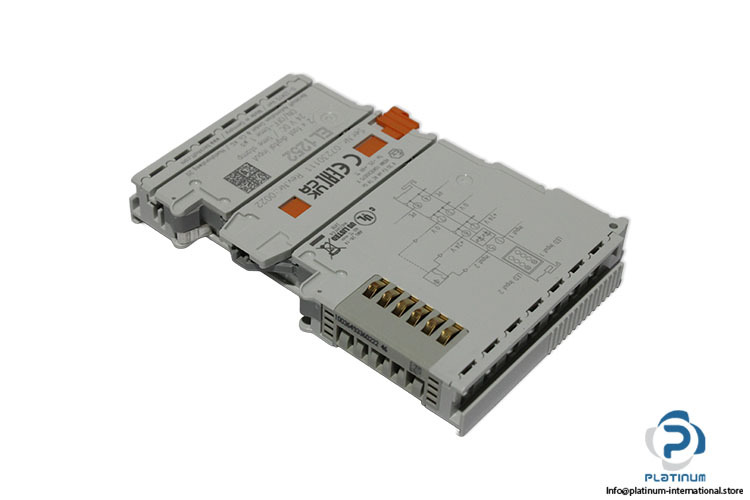

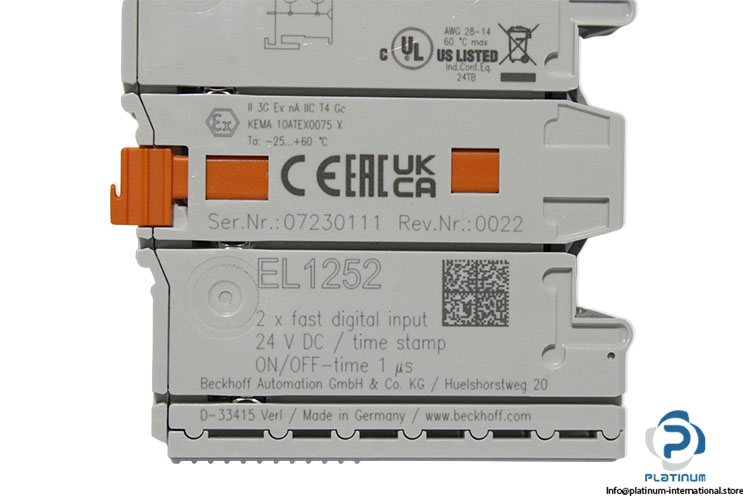

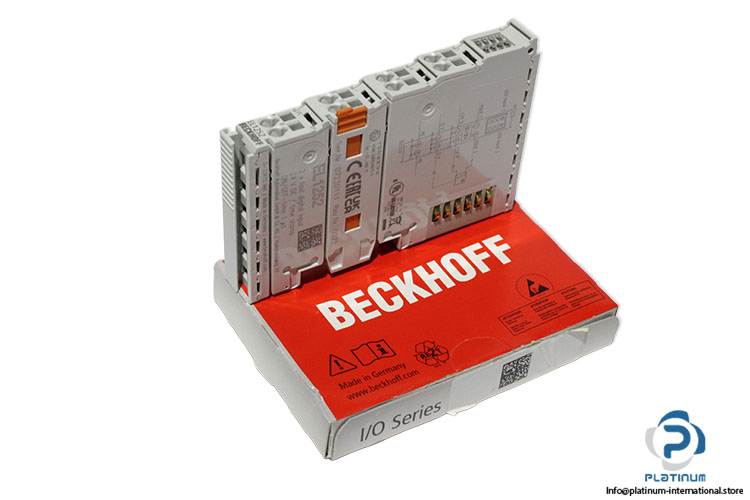

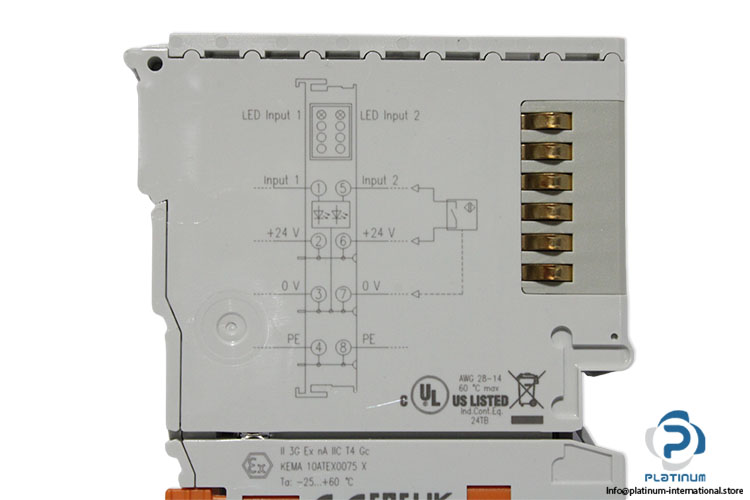

Beckhoff EL1252 Ethercat Terminal

متوفر5 وحداتجاهز للشحن

49,99$

EtherCAT Terminal Beckhoff EL1252 EtherCAT terminal with 2 digital inputs, 24 V DC operation, 1 ns timestamp resolution, and compact DIN rail mounting for industrial automation applications.

الشركة المصنّعة
BECKHOFF
SKU
1097568
الفئة
PLC Modules
الحالة
جديد
مشاركة
مخزون ضخم
شحن عالمي
دعم من خبراء
جودة مضمونة
Connection Technology4-wire
Design formcompact terminal housing with signal LEDs
No. of digital inputs (DI)2
Nominal Voltage24 V DC
Resolution timestamp1 ns
Input delay TON/TOFF1 µs
Current consumption E-bustyp. 110 mA
Current load power contactsImax, 10 A
Input Currenttyp. 3 mA
Protection degreeIP20
MaterialPolycarbonate
Ambient temperature-25 to 60°C
CertificatecULus
StandardIl 3G Ex nA IIC T4 Gc, KEMA 10ATEX0075 X
Installationon 35 mm DIN rail, conforming to EN 60715 with lock
Side-by-Side Mountingdouble slot and key connection
MarkingLabeling of the BZxxxx series

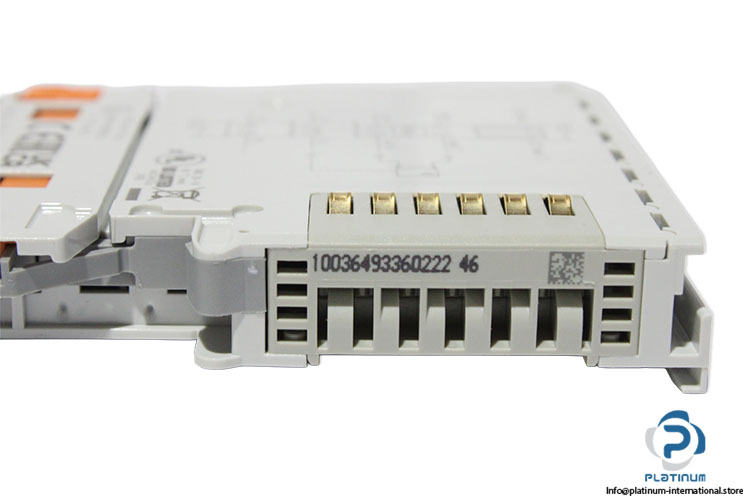

Terminal No.10036493360222 46
Dimensions12 x 100 x 68 mm
Stock keyJO-004
T135ConditionNew
SKU1097568
Weight0,06
