Beckhoff EL1819 Ethercat Terminal
جديد
متوفر9 وحداتجاهز للشحن
99,99$
EtherCAT Terminal Beckhoff EL1819 16-channel digital input EtherCAT terminal featuring high-density design, 24 V DC operation, fast signal processing, and DIN rail mounting for industrial automation systems.
16AutomationBeckhoffchannelControlDigitalDINEL1819EtherCATI/OIndustIndustrialInputModulePLCrailSystemterminal
مخزون ضخم
شحن عالمي
دعم من خبراء
جودة مضمونة

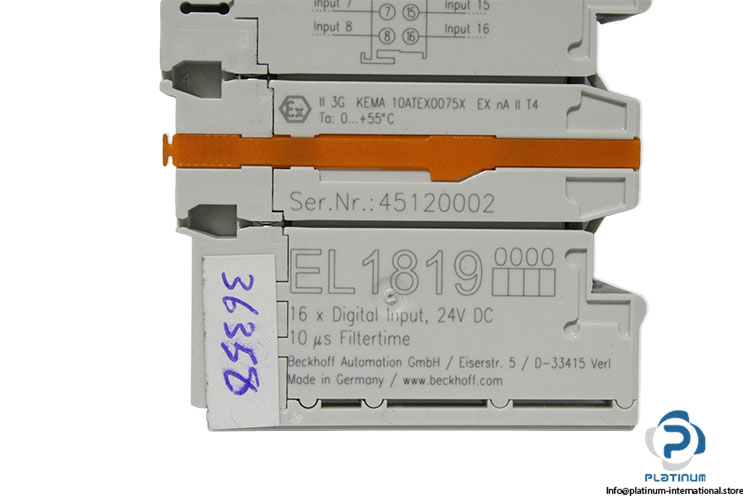

| Serial No. | 45120002 |
| Connection Technology | 1-wire |
| No. of digital inputs (DI) | 16 |
| Nominal Voltage | 24 V DC |
| Input filter | typ. 10 µs |
| Signal voltage (0) | -3-5 V |
| Signal voltage (1) | 11-30 V |
| Input current | typ. 3 mA |
| Electrical isolation | 500 V |
| Current consumption E-bus | typ. 100 mA |
| Current load power contacts | Imax, 4 mA + load |
| Protection degree | IP20 |
| Material | Polycarbonate |
| Ambient temperature | 0 to 55°C |
| Certificate | cULus, CE |
| Standard | II 3G KEMA 10ATEX0075X EX nA II T4 |
| Design form | HD (High Density) housing with signal LEDs |
| Installation | on 35 mm DIN rail, conforming to EN 60715 with lock |
| Side-by-Side Mounting | double slot and key connection |
| Marking | Labeling of the BZxxxx series |

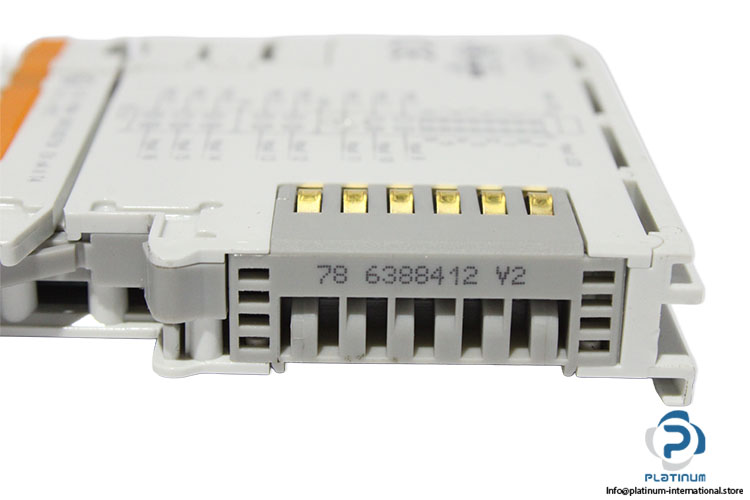

| Terminal No. | 78 6388412 V2 |
| Dimensions | 12 x 100 x 68 mm |
| Condition | New |
| Stock Key | JO-004 |
| SKU | 1097591 |
| Weight | 0,04 |
