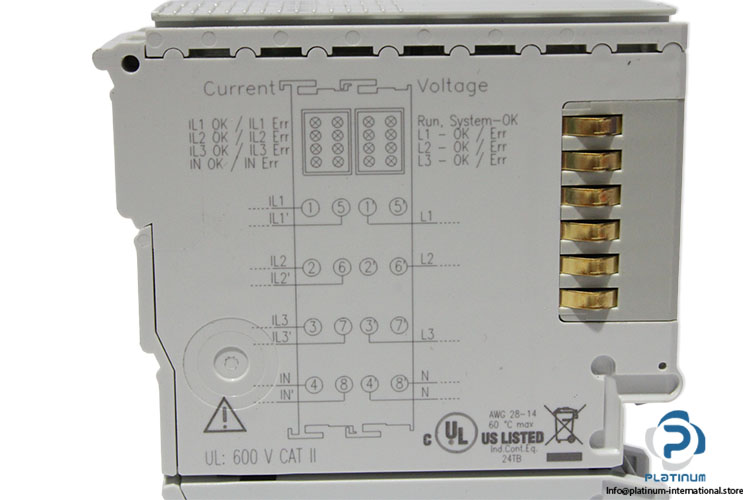

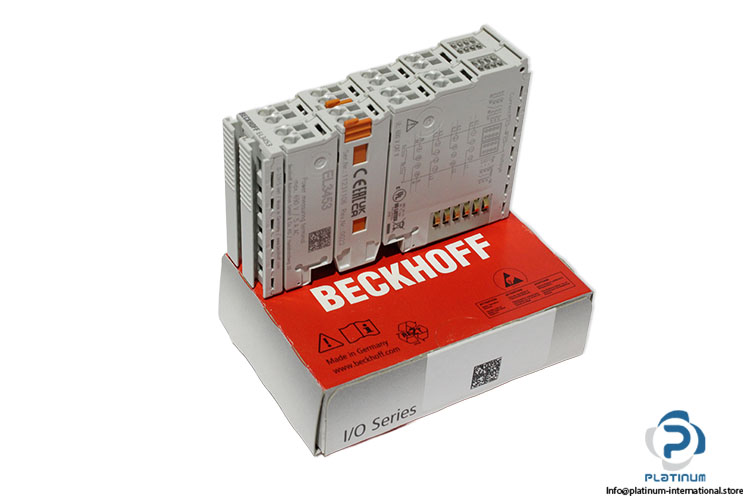

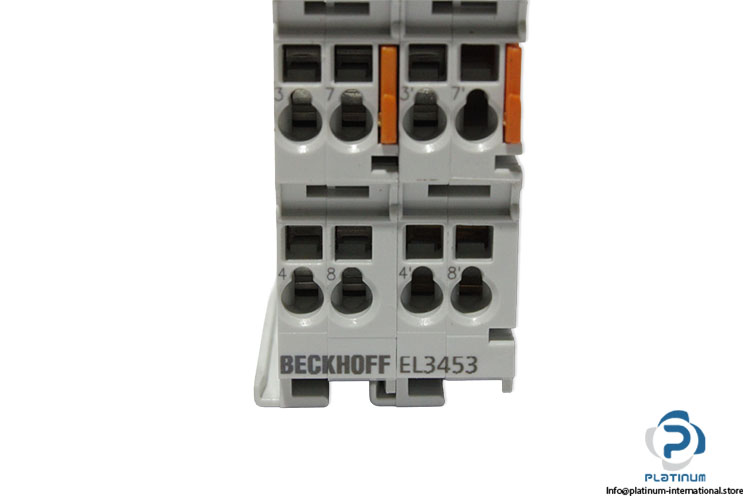

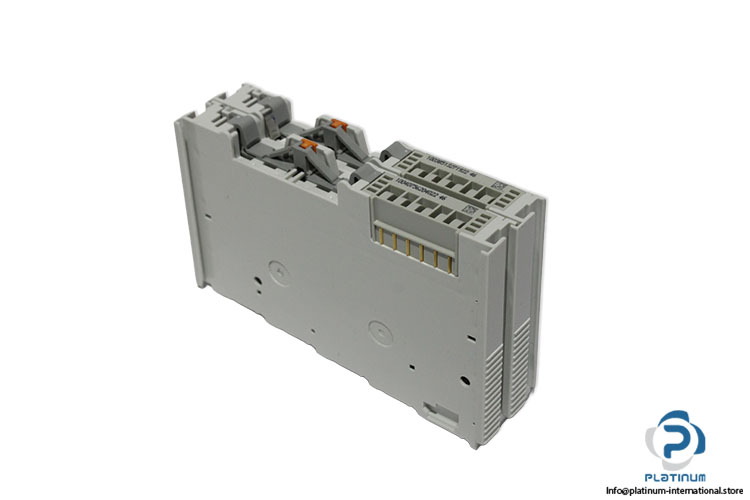

Beckhoff EL3453 Ethercat Terminal

متوفر5 وحداتجاهز للشحن

444,44$

EtherCAT Terminal / Power Measuring Terminal Beckhoff EL3453 EtherCAT power measuring terminal designed for accurate voltage and current monitoring, mains analysis, and reliable industrial automation applications.

الشركة المصنّعة
BECKHOFF
SKU
1097571
الفئة
PLC Modules
الحالة
جديد
مشاركة
مخزون ضخم
شحن عالمي
دعم من خبراء
جودة مضمونة

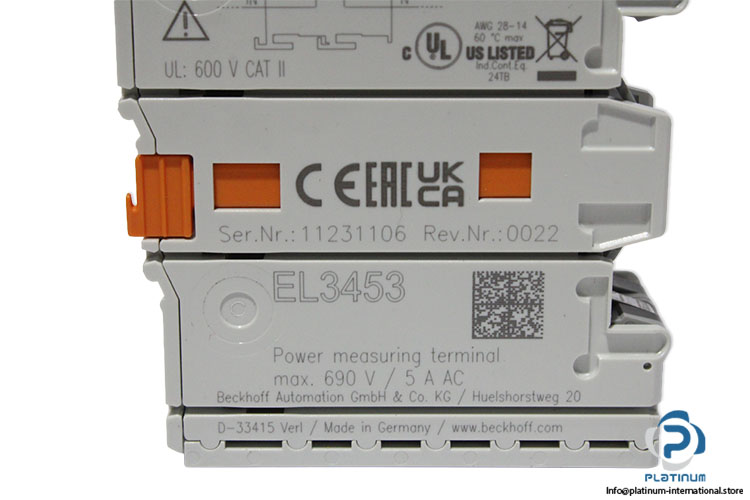

Serial No.11231106
Rev. No.0022
No. of analog input (AI)4 x current, 3 x voltage
Update intervalhalf mains period (10 ms at 50 Hz)
Nominal voltagemax. 690 V AC 3-phase (ULX-N: max. 600 V AC)
Nominal current5 A
Electrical isolation4500 V
Monitoring functionphase order, phase failure, phase asymmetry, undervoltage/overvoltage
Special featuresmains monitoring, precise detection of zero voltage and zero current crossing, optional single-phase operation
Current consumption E-bustyp. 260 mA
MaterialPolycarbonate
Operating temperature-25 to 60°C
CertificatecULus, CE, EAC, UKCA
Design formcompact terminal housing with signal LEDs
Installationon 35 mm DIN rail, conforming to EN 60715 with lock
Side-by-Side Mountingdouble slot and key connection
Markinglabeling of the BZxxxx series

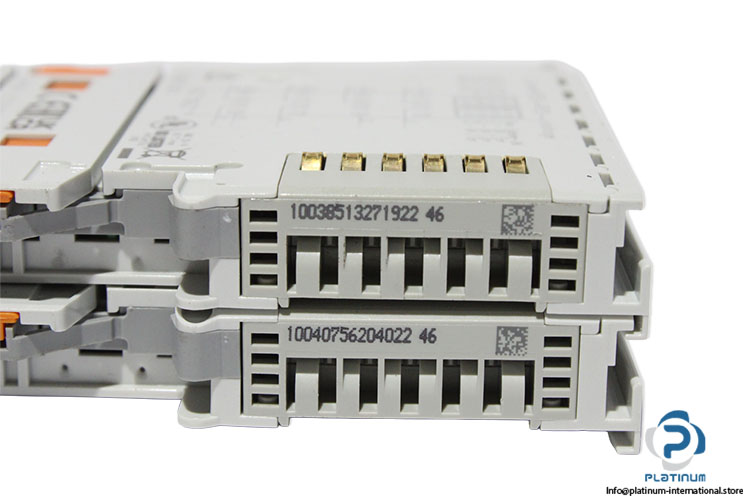

Terminal No.10038513271922 46 / 10040756204022 46
Dimensions24 x 100 x 68 mm
ConditionNew
Stock KeyJO-004
SKU1097571
Weight0,11
