Beckhoff EL6652 Ethercat Terminal
جديد
متوفر3 وحداتجاهز للشحن
199,99$
EtherCAT Terminal Beckhoff EL6652 EtherCAT terminal with 2 switched RJ45 ports, EtherNet/IP™ protocol support, and compact DIN rail mounting design for industrial communication and automation systems.
AutomationBeckhoffCCommunicationDINEL6652EtherCATEthernetIndustrialInterfaceIPModulePLCrailRJ45terminal
مستعمل
متوفر 111,11$
هذا المنتج متوفر أيضًا بحالة مستعملة
عرض النسخة المستعملة ←
مخزون ضخم
شحن عالمي
دعم من خبراء
جودة مضمونة
| Serial No. | 50210216 |
| Rev. No. | 0018 |
| No. of channels | 1 |
| Number of ports | 2 (switched) |
| Process data size | Max. 1 kbyte input/1 kbyte output data |
| Ethernet interface | 100BASE-TX Ethernet with 2 x RJ45 |
| Cable length | up to 100 m twisted pair |
| Hardware diagnostics | status LEDs |
| Power supply | via the E-bus |
| Electrical isolation | 500 V (E-bus/Ethernet) |
| Protocol | EtherNet/IP™ |
| Configuration | via EtherCAT master |
| Current consumption E-bus | typ. 400 mA |
| Special features | multicast/unicast connection |
| Material | Polycarbonate |
| Operating temperature | 0 to 55°C |
| Certificate | CE, EAC, UKCA, cULus |
| Design form | compact terminal housing with signal LEDs |
| Installation | on 35 mm DIN rail, conforming to EN 60715 with lock |
| Side-by-Side Mounting | double slot and key connection |
| Wiring | specific push-in connection |

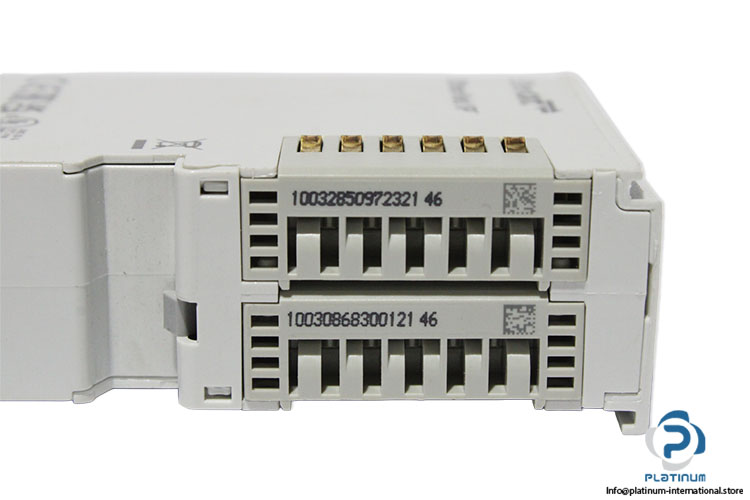

| Terminal No. | 10032850972321 46 / 10030868300121 46 |
| Dimensions | 24 x 100 x 52 mm |
| Condition | New |
| Stock Key | JO-004 |
| SKU | 1097580 |
| Weight | 0,09 |
