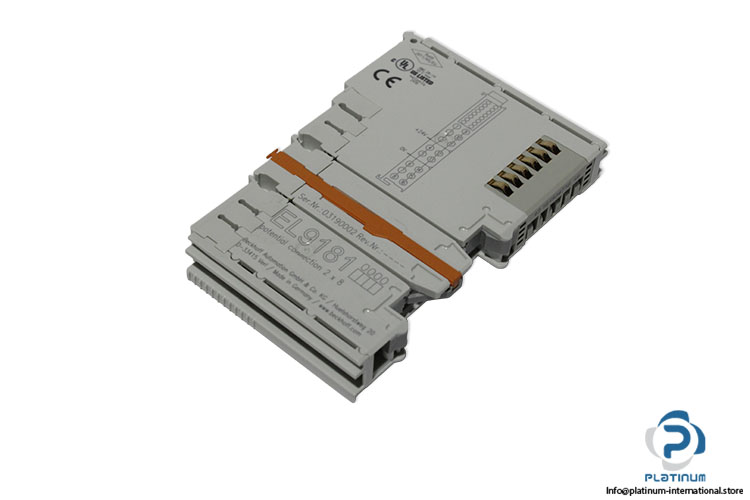

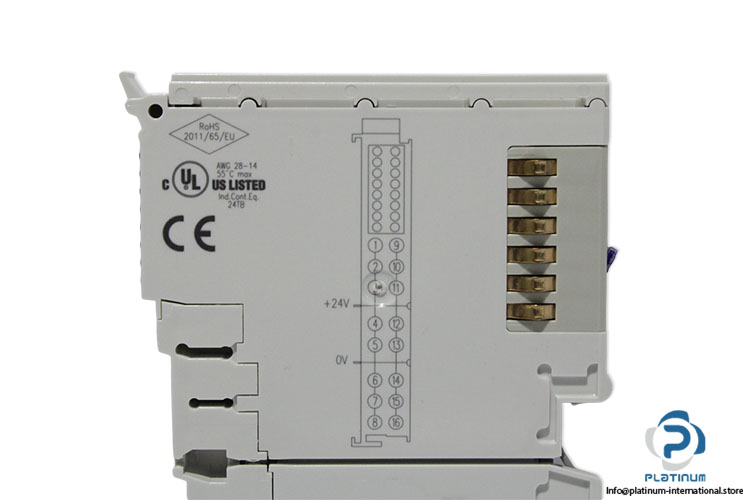

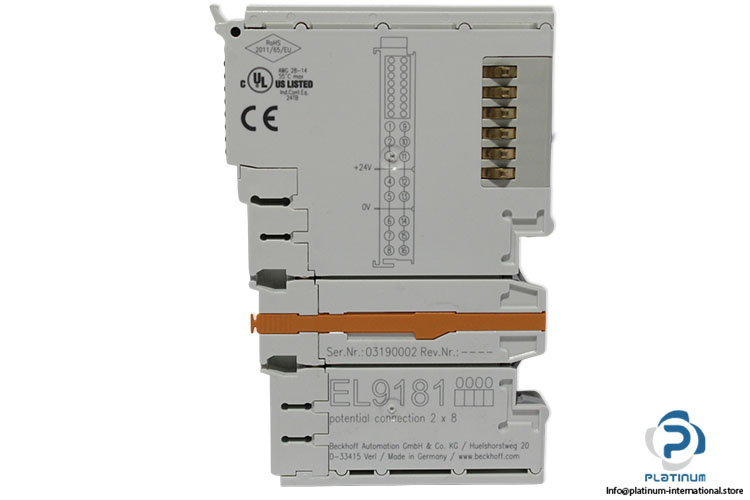

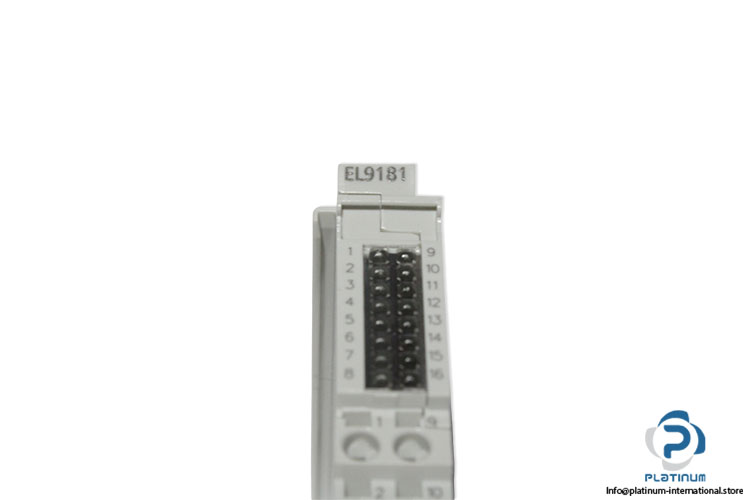

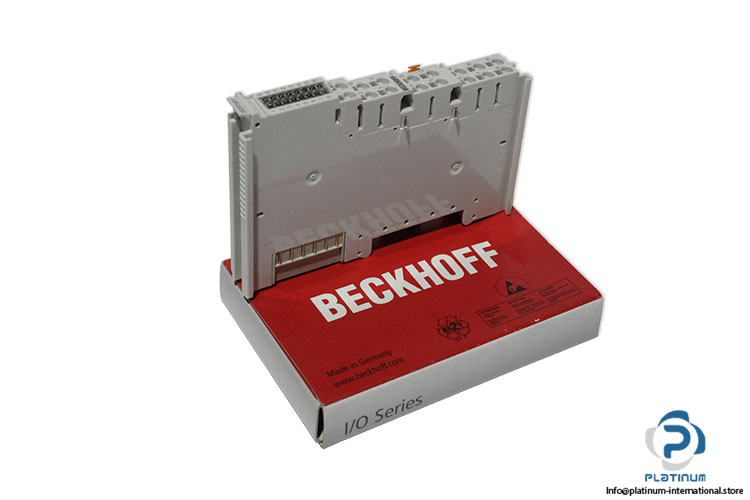

Beckhoff EL9181 Ethercat Terminal
جديد
متوفر27 وحداتجاهز للشحن
79,99$
EtherCAT Terminal Beckhoff EL9181 high-density EtherCAT terminal with 2 x 8 potential distribution, 10 A current load, signal LEDs, and DIN rail mounting for industrial automation applications.
AutomationBeckhoffBlockComponentsControlDINDistributionEL9181EtherCATI/OIndusIndustrialModulePLCPotentialrailSystemterminal
مخزون ضخم
شحن عالمي
دعم من خبراء
جودة مضمونة

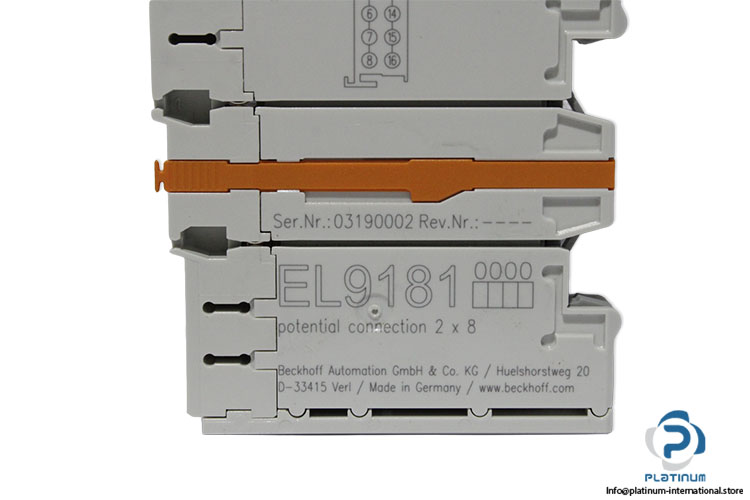

| Serial No. | 03190002 |
| Connection Technology | potential distribution terminal |
| Design form | HD (High Density) housing with signal LEDs |
| Current load | max. 10 A |
| No. of separate potentials | 2 |
| Terminal points per potential | 8 |
| Nominal Voltage | max. 60 V AC/DC |
| Electrical isolation | 500 V |
| Special features | 2 x 8-way bridge |
| Current load power contacts | Imax, 10 A |
| Material | Polycarbonate |

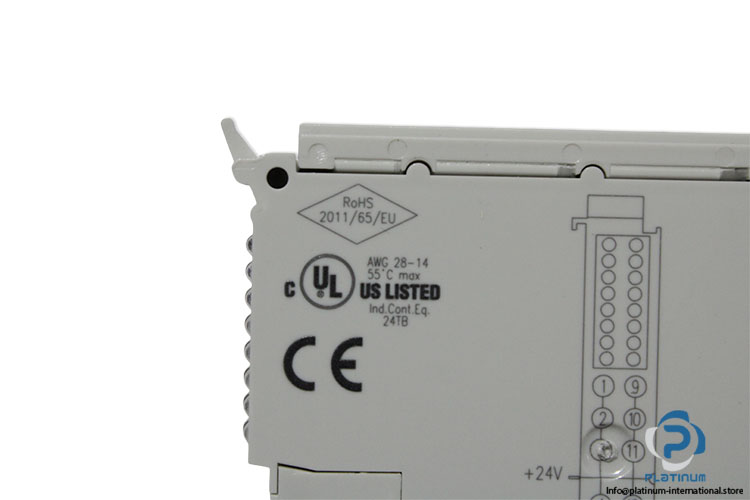

| Certificate | cULus, CE |
| AWG cross section | 28-14 |
| Installation | on 35 mm DIN rail, conforming to EN 60715 with lock |
| Side-by-Side Mounting | double slot and key connection |

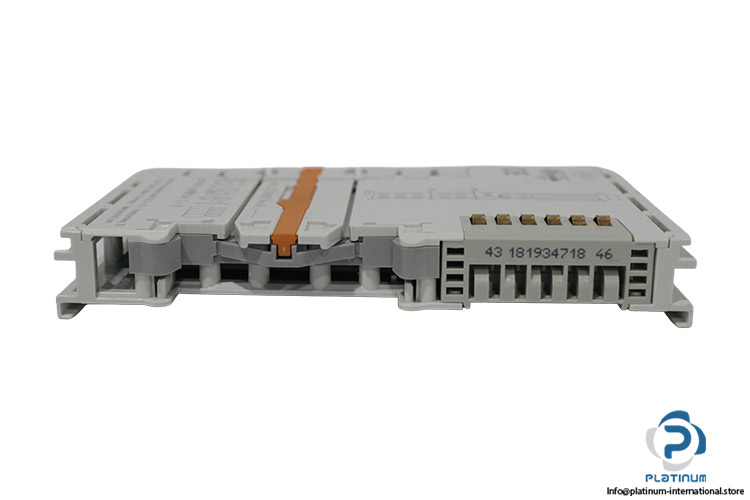

| Terminal No. | 43 181934718 46 |
| Ambient temperature | 0 to 55°C |
| Operating Temperature | -25 to 60°C |
| Marking | Labeling of the BZxxxx series |
| Dimensions | 12 x 100 x 68 mm |
| Condition | New |
| Stock Key | JO-004 |
| SKU | 1097572 |
| Weight | 0,06 |
