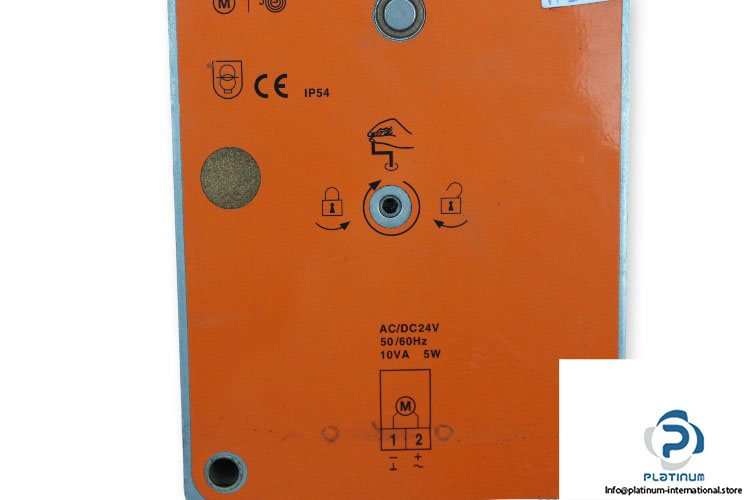

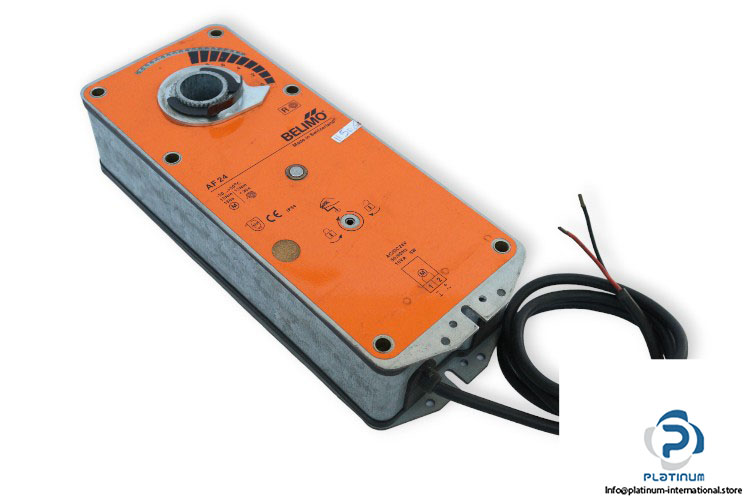

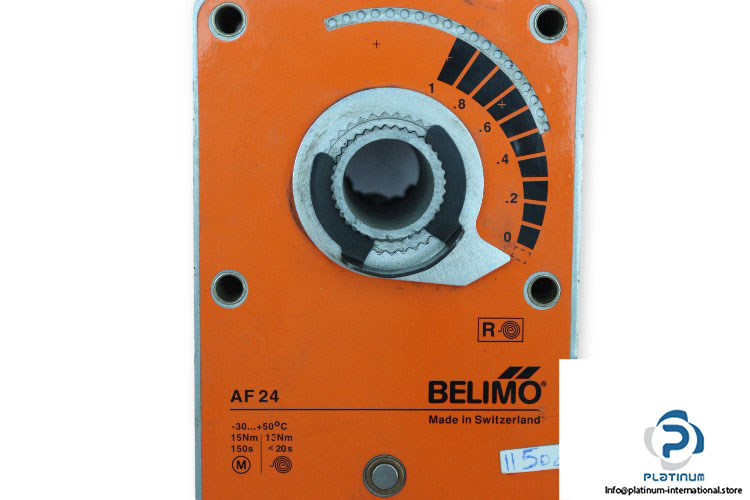

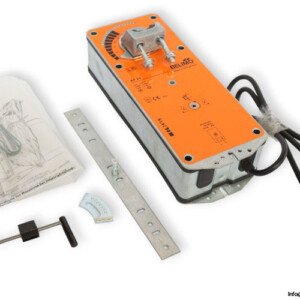

Belimo AF24 Spring Return Actuator

Manufacture: Belimo
Type: Spring Return Actuator
Model: AF24

Torque motor: 15 Nm
Torque spring return: 15 Nm
Nominal voltage: 24 V AC/DC (19.2 … 28.8 V AC / 21.6 … 26.4 V DC)
Nominal voltage frequency: 50/60 Hz
Power consumption in motoring: 5 W
Power consumption in holding: 1.5 W
Power consumption for wire sizing: 10 VA
Angle of rotation max.: 95°
Running time motor: 150 s, spring return: 20 s
Degree of protection: IP54
Ambient temperature: -30 … 50°C

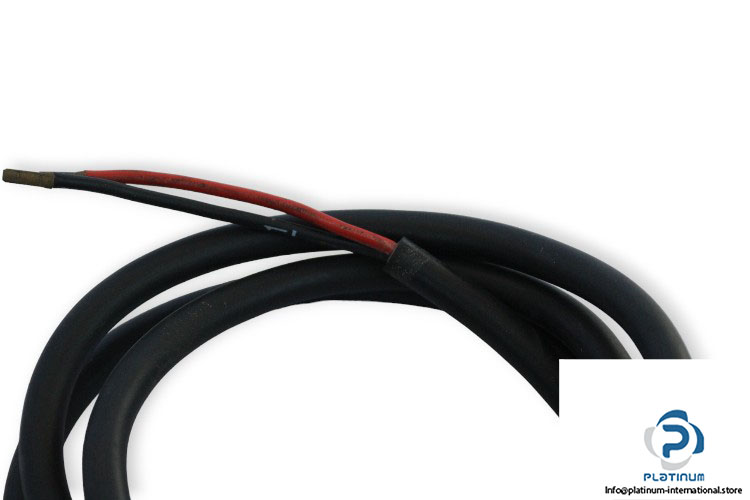

Connecting cable-motor: 1 m long, 2×0.75 mm²
