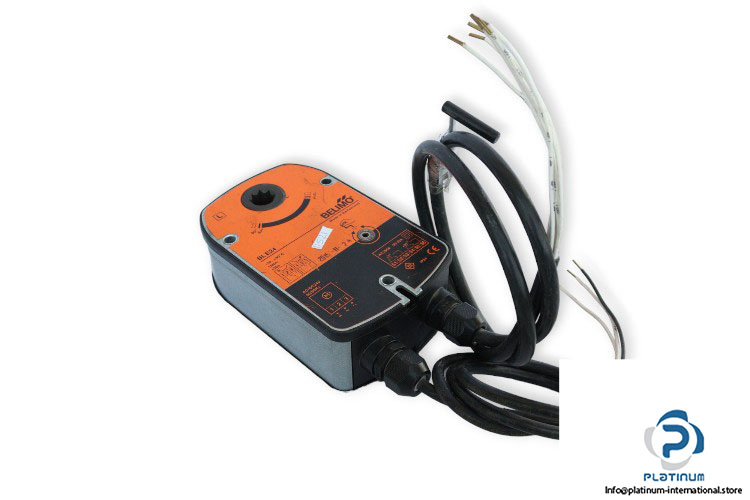

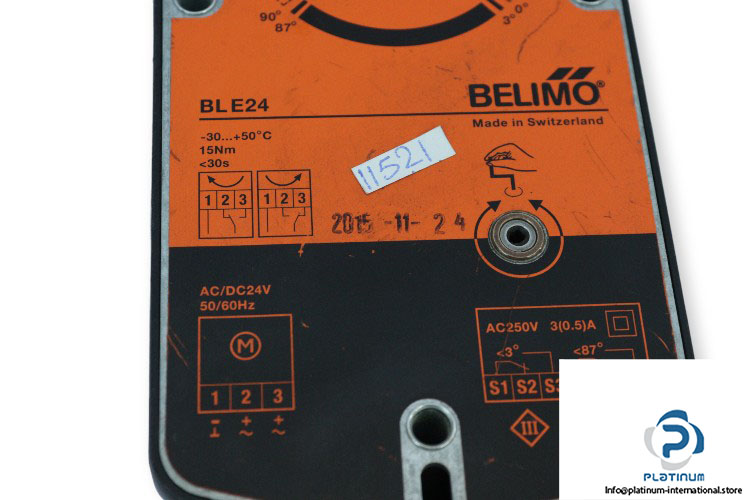

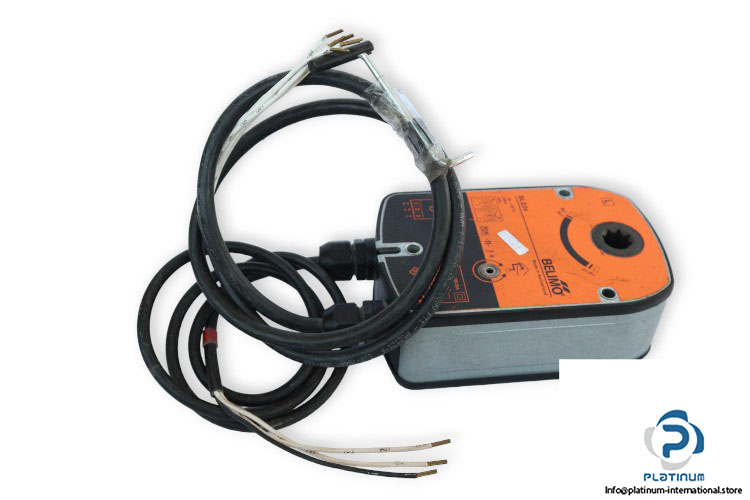

Belimo BL E24 Smoke Control Actuator

Manufacture: Belimo
Type: Non-Spring Return Smoke Control Actuator
Model: BLE24

Torque motor: 15 Nm
Nominal voltage: 24 V AC/DC (19.2 … 28.8 V AC / DC 21.6 … 28.8 V DC)
Nominal voltage frequency: 50/60 Hz
Power consumption: 7.5 W @ running / 0.5 W @ holding
Power For transformer sizing: 9 VA
Auxiliary switch: 2 SPDT, 250 V AC ,3 (0.5) A
Angle of rotation max.: 105°
Running time: 30s/90°
Degree of protection: IP54
Ambient temperature: -30 … 50°C
Dimensions: 185 x 98 x 57.6mm
