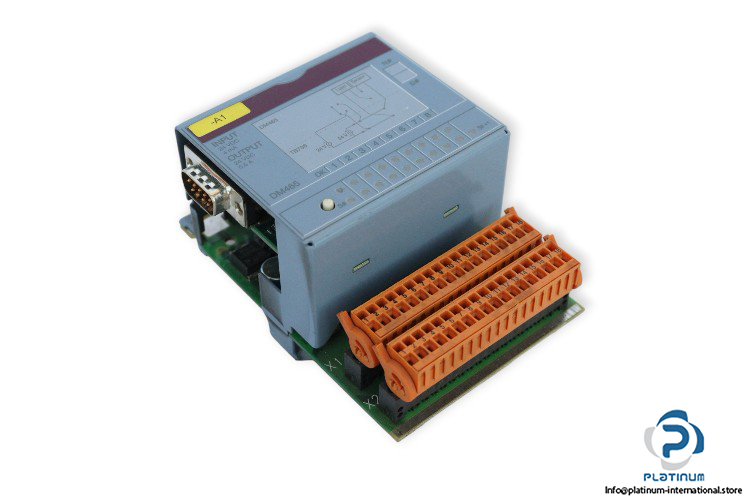

B&R 7DM465.7 DIGITAL MIXED MODULE

Manufacture: B&R Automation
Type: Digital mixed module
Model: 7DM465.7
Part No.: 31710680730

Input:
No. of digital input (DI): 16
Wiring: Sink
Input Voltage: 24 V DC (18 … 30 V DC)
Input Current at Nominal Voltage: Approx. 4 mA
Input Delay: Max. 1 msec
Output:
No. of digital output (DO): 16
Type: High side Driver IC (Transistor)
Input Voltage: 24 V DC (18 … 30 V DC)
Continuous Current Per Output: Max. 0.5 A
Continuous Short Circuit Protection: Typ. 4 A
Switching Delay: Max. 450 µsec
