B&R X20 DI 4371 DIGITAL INPUT MODULE
189,99$
وحدة الإدخال الرقمي تحتوي وحدة الإدخال الرقمي B&R X20DI4371 على 4 مدخلات رقمية، جهد اسمي 24V DC، وحماية IP20. مصممة للأتمتة الصناعية، تضمن معالجة إشارة فعالة.

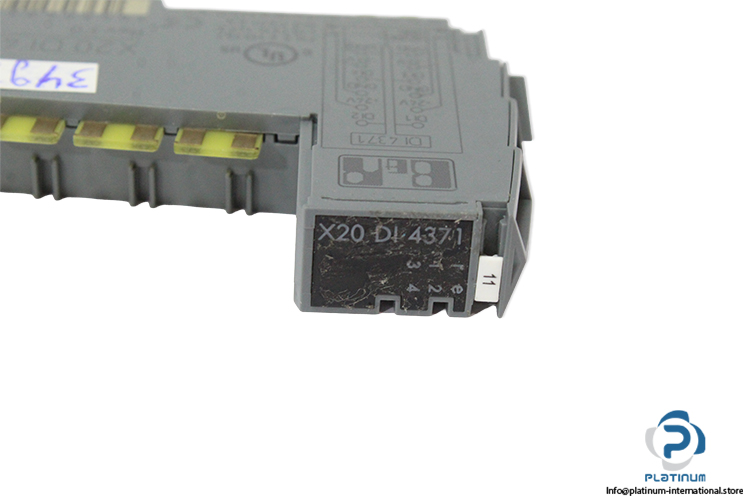

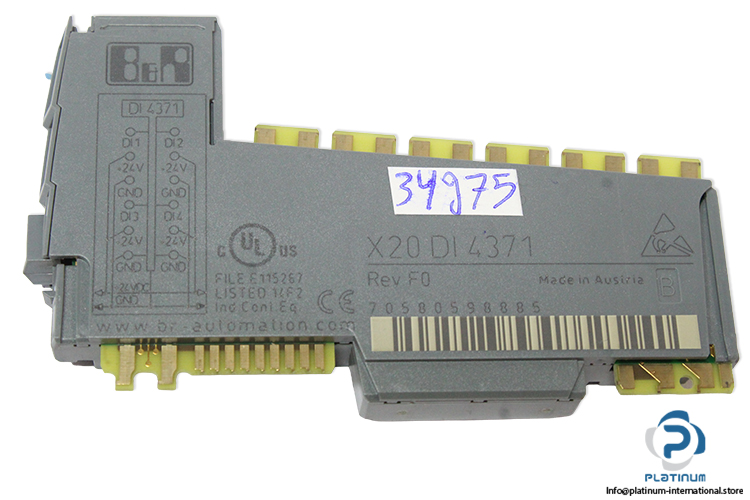

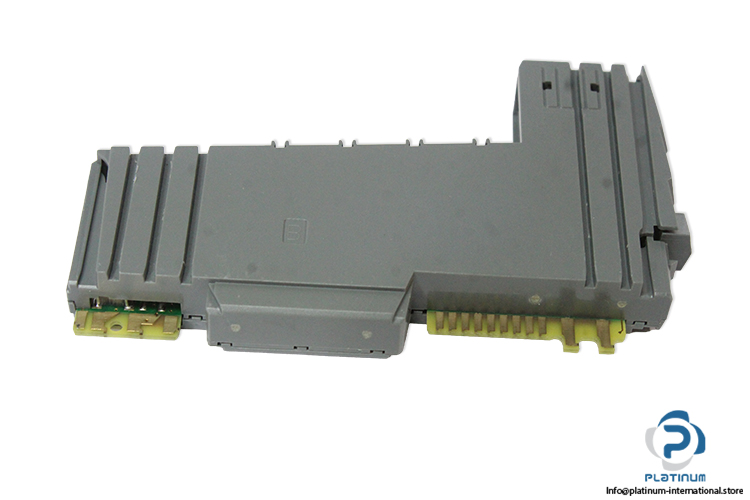

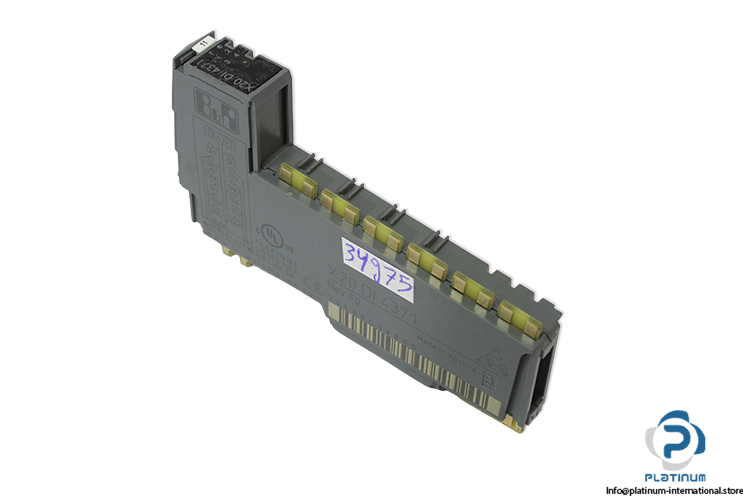

B&R X20DI4371 Digital Input Module
The B&R X20DI4371 Digital Input Module is a high-performance industrial automation component designed for precise signal processing and reliable operation in demanding environments. With 4 digital inputs for 3-wire connections and a nominal voltage of 24 V DC, this module ensures efficient integration into control systems.
Manufacturer: B&R
Type: Digital Input Module
Model: X20DI4371
Power Consumption:
Designed for industrial automation systems, the B&R X20DI4371 offers precise input signal detection and efficient power consumption, making it a reliable choice for control applications.
| Nominal Voltage | 24 V DC |
| Input Voltage | 24 V DC |
| Input Current (at 24 V DC) | Typ. 3.75 mA |
| Number of Digital Inputs | 4 DI (for 3-wire connections) |
| Bus | 0.14 W |
| Internal I/O | 0.59 W |
| Protection Degree | IP20 |
| Operation Temperature | -25 to 60°C |
| Dimensions | 155 x 53 x 85 mm |
