Festo 173145 AIR Solenoid Valve
جديد
متوفر1 وحدةجاهز للشحن
DOUBLE SOLENOID VALVE
FESTO MEH-5/3E-1/8-B double solenoid valve with 24V coil, 5/3 exhausted function, and high flow rate for reliable pneumatic automation.
مخزون ضخم
شحن عالمي
دعم من خبراء
جودة مضمونة

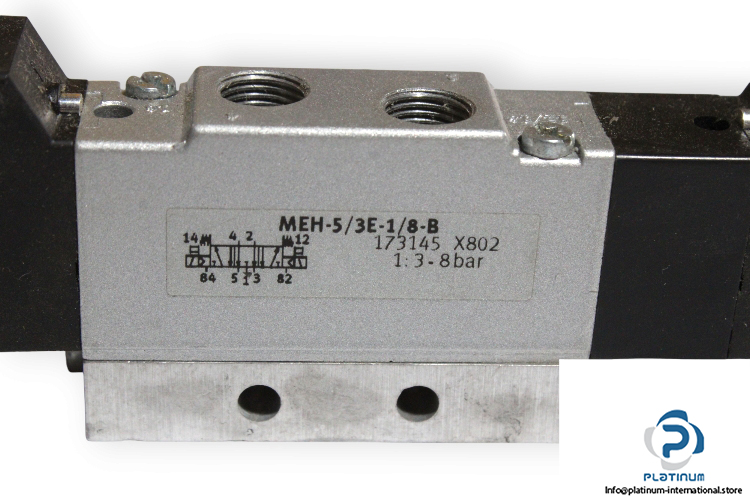

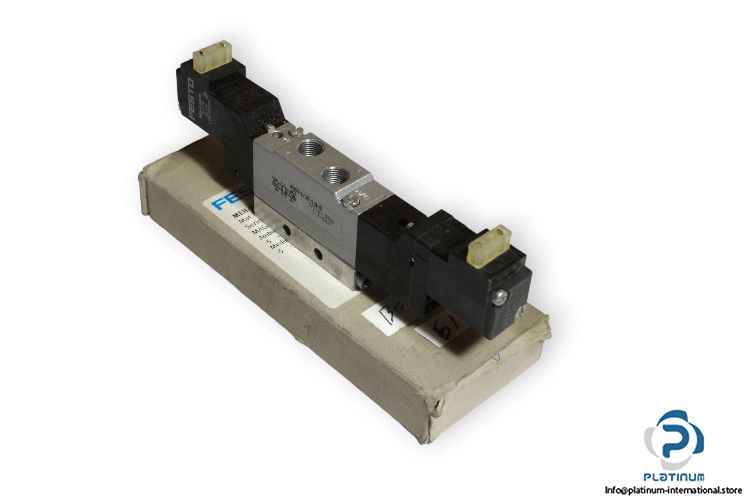

FESTO MEH-5/3E-1/8-B DOUBLE SOLENOID VALVE WITH 24V COIL
The FESTO MEH-5/3E-1/8-B is a robust and precise double solenoid valve designed for high-performance pneumatic control. With a 5/3 exhausted function, aluminum die-cast body, and electrical actuation, it is ideal for automated air flow regulation in industrial applications. Equipped with the FESTO MEH-3-24V DC solenoid coil, it ensures reliable switching with minimal power consumption.
Manufacturer: FESTO
Type: Double Solenoid Valve
Model: MEH-5/3E-1/8-B
Part No.: 173145
Solenoid Coil Technical Information
| Fluid | Air |
| Design | Piston slide |
| Function | 5/3 exhausted |
| Type of Actuation | Electrically |
| Operating Pressure | 3 / 8 bar |
| Nominal Flow Rate | 500 l/min |
| Pneumatic Connection | G1/8 |
| Material | Aluminum die cast |
| Ambient Temperature | -5 / 50 °C |

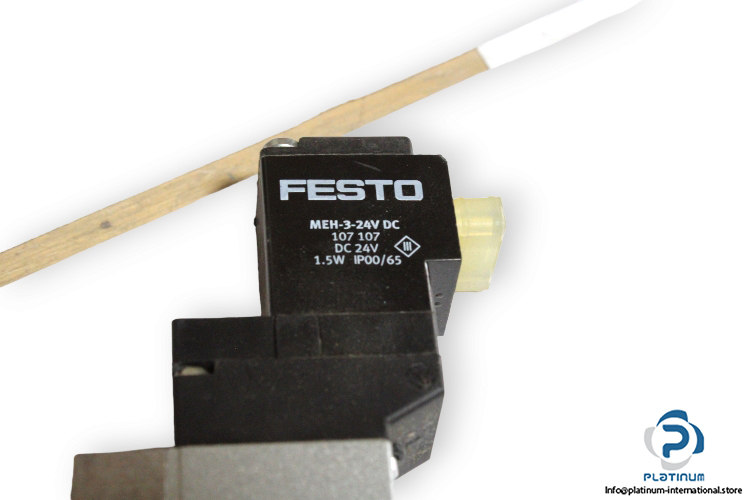

| Attachment | FESTO MEH-3-24V DC SOLENOID COIL |
| Part No. | 107107 |
| Supply Voltage | 24 V DC |
| Power Consumption | 1.5 W |
| Protection Class | IP00 / IP65 |
