Festo 542218 Proportional Pressure Control Valve
مستعمل
متوفر1 وحدةجاهز للشحن
منظم ضغط تناسبي FESTO VPPM-6TA-L-1-F-0L6H-S1 يوفر تحكمًا كهربائيًا دقيقًا في ضغط الهواء، مثالي لأنظمة الأتمتة عالية الأداء.
ActuatedControlElectricalFestoIndustrialIP65Pilot-ControlledPneumaticPressureProportionalregulatorValveVPPM-6TA-L-1-F-0L6H-S1
مخزون ضخم
شحن عالمي
دعم من خبراء
جودة مضمونة

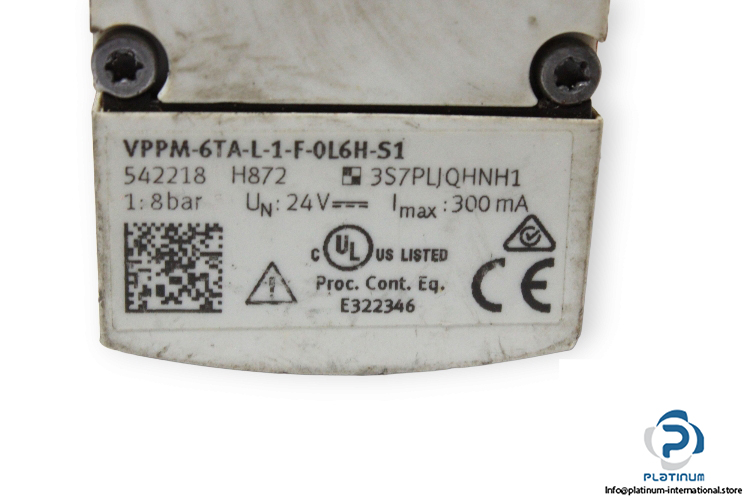

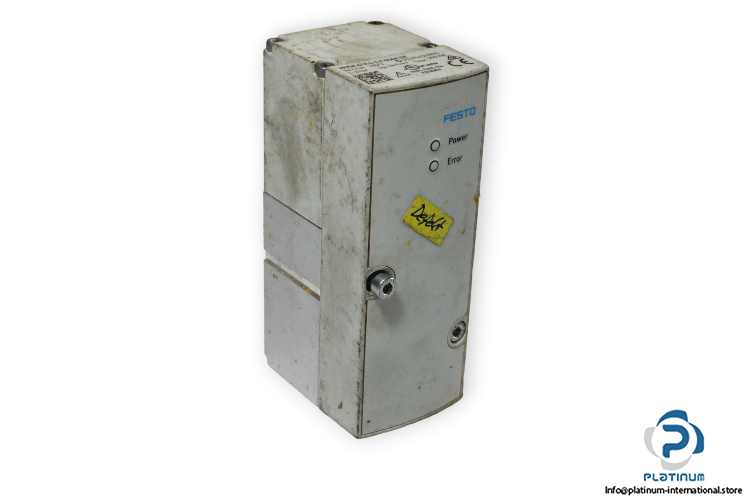

FESTO VPPM-6TA-L-1-F-0L6H-S1 PROPORTIONAL-PRESSURE REGULATOR
The FESTO VPPM-6TA-L-1-F-0L6H-S1 is a precision proportional-pressure regulator designed for advanced pneumatic applications. With a pilot-controlled diaphragm structure and soft sealing principle, it provides accurate and stable pressure regulation for demanding environments.
Manufacturer: FESTO
Type: Proportional-Pressure Regulator
Model: VPPM-6TA-L-1-F-0L6H-S1
Part No.: 542218
| Nominal Width Pressurization | 6 mm |
| Exhaust Nominal Width | 4.5 mm |
| Actuation Type | Electrical |
| Sealing Principle | Soft |
| Structural Design | Pilot-Controlled Diaphragm Regulator |
| Pressure Regulation Range | 0.06 / 6 bar |
| Inlet Pressure 1 | 0 / 8 bar |
| Max. Pressure Hysteresis | 0.03 bar |
| Standard Nominal Flow Rate | 900 l/min |
| Operating Voltage Range | 21.6 / 26.4 V DC |
| Current Consumption Max. | 300 mA |
| Degree Of Protection | IP65 |
| Medium Temperature | 10 / 50 °C |
| Ambient Temperature | 0 / 60 °C |
| Pneumatic Connection | Sub-Base |
