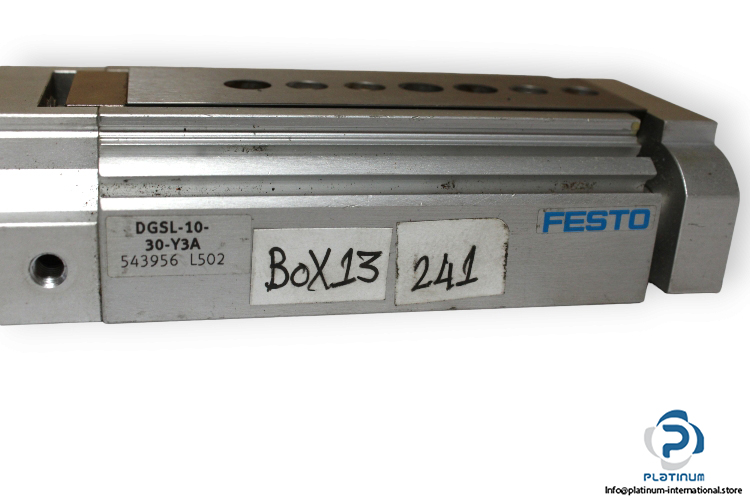

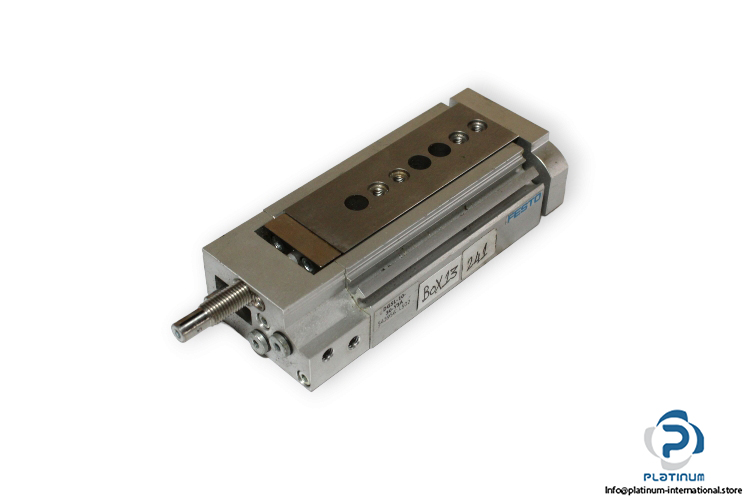

Festo 543956 Mini Slide

Manufacturer: FESTO

Type: Mini slide

Model: DGSL-10-30-Y3A

Part No.: 543956



Stroke Length: 30 mm

Piston Diameter: 12 mm

Adjustable end-position range/front length: 24 mm

Adjustable end-position range/rear length: 15 mm

Cushioning: Progressive pneumatic shock absorbers at both ends

Mounting position: Any

Guide: Ball bearing cage guide

Position sensing: For proximity sensor

Operating pressure: 1.5 bar … 8 bar

Max. speed: 0.8 m/s

Mode of operation: Double acting

Operating medium: Compressed air

Pneumatic Connection: 5 mm

Temperature: -20 … 80 °C
