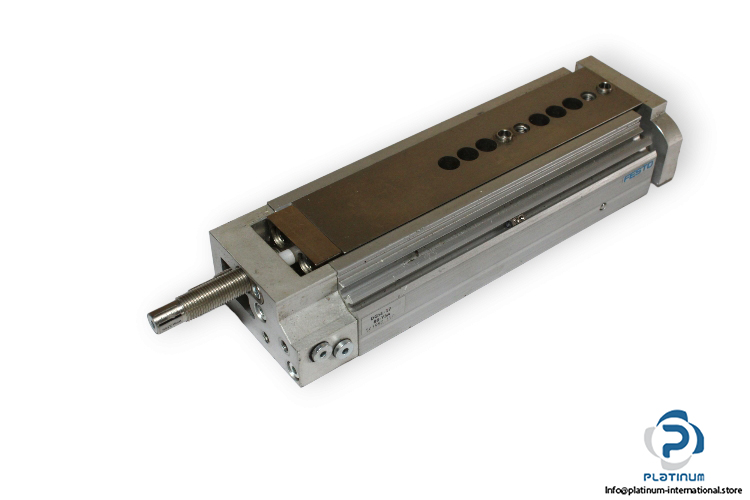

Festo 543980 Mini Slide

Manufacturer: FESTO

Type: Mini slide

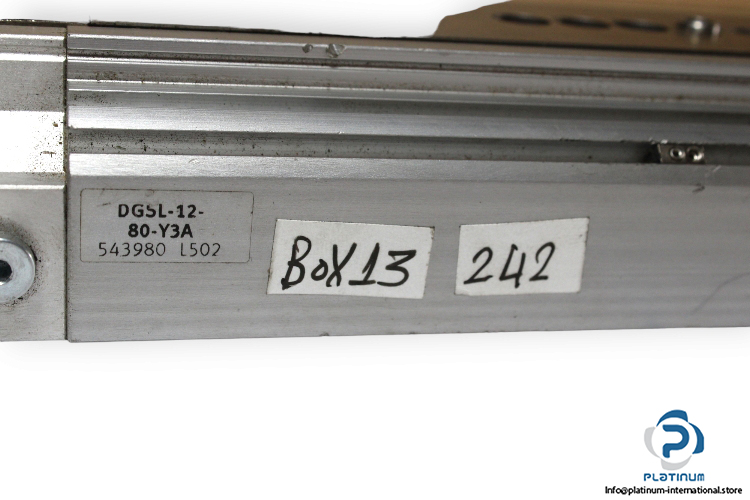

Model: DGSL-12-80-Y3A

Part No.: 543980



Stroke Length: 80 mm

Piston Diameter: 16 mm

Adjustable end-position range/front length: 68 mm

Adjustable end-position range/rear length: 25.5 mm

Cushioning: Progressive pneumatic shock absorbers at both ends

Mounting position: Any

Guide: Ball bearing cage guide

Position sensing: For proximity sensor

Operating pressure: 1 bar … 8 bar

Max. speed: 0.8 m/s

Mode of operation: Double acting

Operating medium: Compressed air

Pneumatic Connection: 5 mm

Temperature: -20 … 80 °C
