Festo 2340 Hand Slide Valve
جديد
متوفر1 وحدةجاهز للشحن
HAND SLIDE VALVE
FESTO W-3-1/4 manual hand slide valve with 3/2 bistable function, brass body, and high flow rate for pneumatic air systems.
مخزون ضخم
شحن عالمي
دعم من خبراء
جودة مضمونة

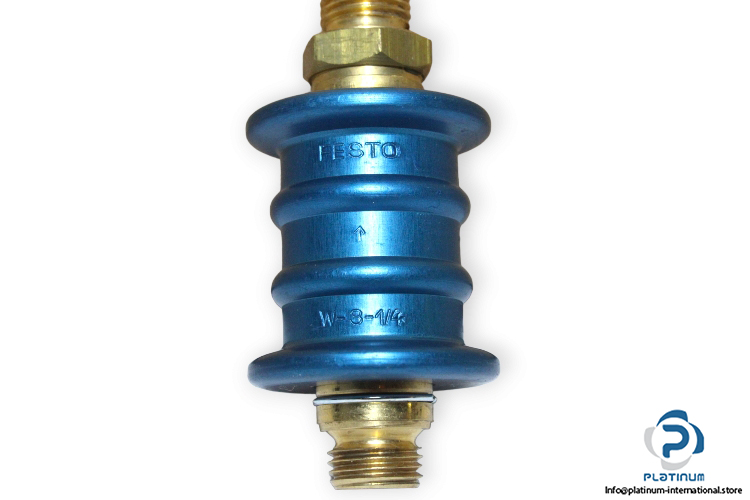

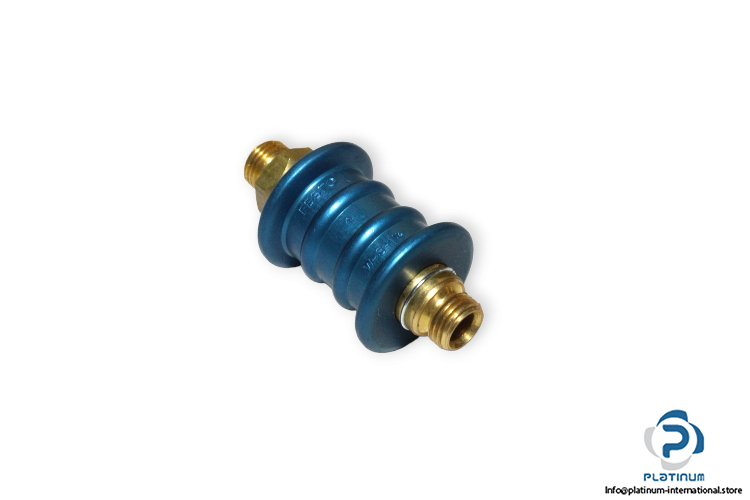

FESTO W-3-1/4 HAND SLIDE VALVE
The FESTO W-3-1/4 is a robust and precise hand slide valve built for manual air flow control in industrial pneumatic systems. With a sleeve slide design and 3/2 bistable function, it offers dependable performance in various applications requiring on/off switching or flow regulation.
Manufacturer: FESTO
Type: Hand Slide Valve
Model: W-3-1/4
Part No.: 2340
| Fluid | Air |
| Design | Sleeve slide |
| Function | 3/2 bistable |
| Type of Actuation | Manually |
| Operating Pressure | -0.95 ... 10 bar |
| Nominal Flow Rate | 1000 l/min |
| Actuating Force | 20 N |
| Pneumatic Connection | G1/4 |
| Material | Brass |
| Ambient Temperature | -10 / 60 °C |
