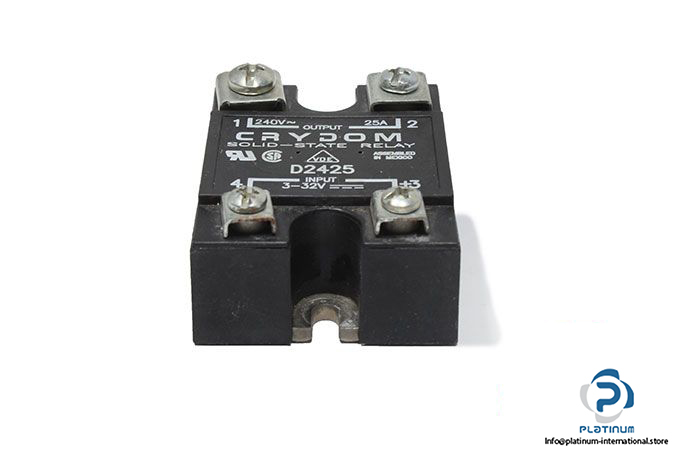

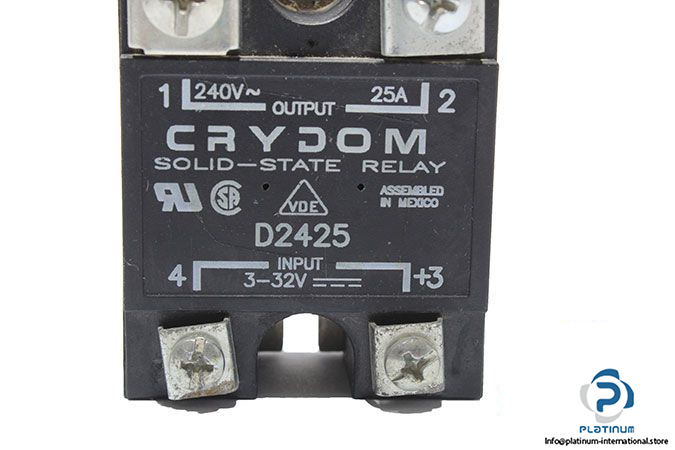

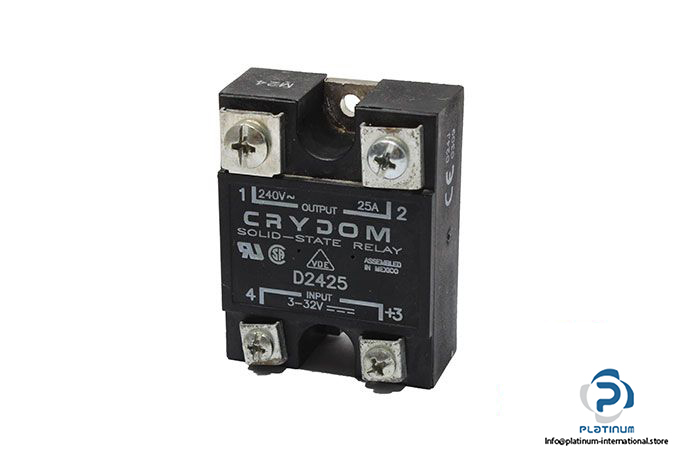

Crydom D2425 Solid State Relay

Manufacturer: CRYDOM

Type: Solid State Relay

Model: D2425



Control Voltage: 3 … 32 VDC

Current: 25 A

Maximum Reverse Voltage: -32 VDC

Minimum Turn-On Voltage: 3.0 VDC

Must Turn-Off Voltage: 1.0 VDC

Input Current: 7 … 12 Ma

Turn-On Time: 1/2 Cycle msec

Ambient Operating Temperature: -40 … 80 °C

Dimensions: 45 X 58 X 22 mm

Weight: 0.1 Kg
