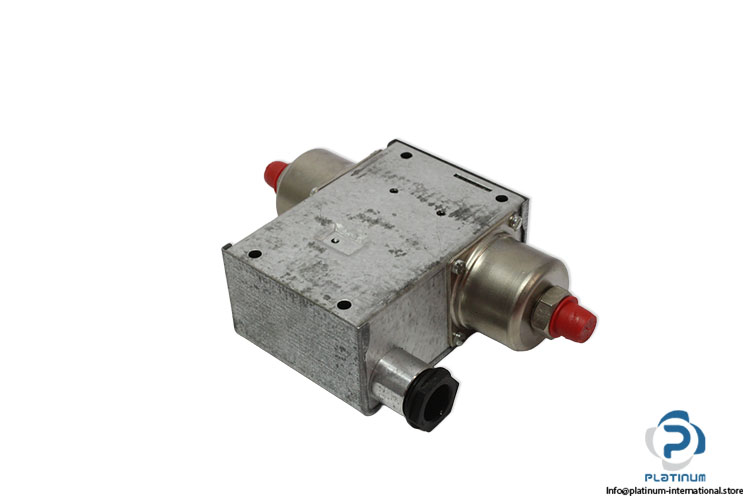

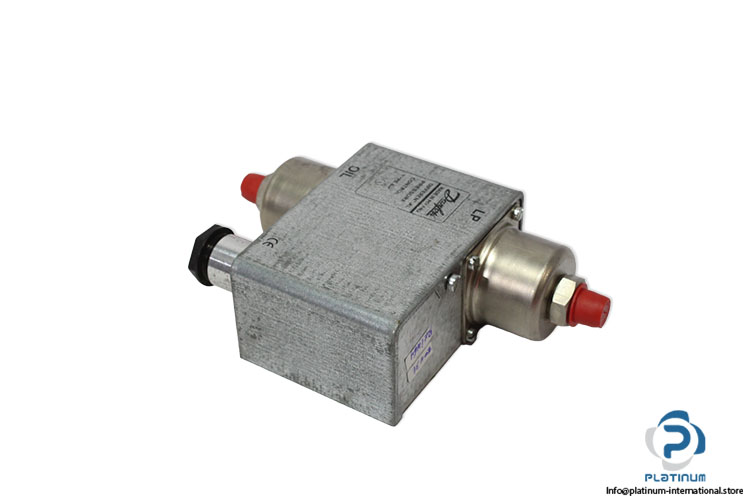

Danfoss MP55A 060B0296 Differential Pressure Switch
جديد
متوفر1 وحدةجاهز للشحن
Differential Pressure Switch The DANFOSS MP55A Differential Pressure Switch provides dependable differential pressure monitoring for oil systems, featuring an SPDT switching contact, a measuring range of 0.3 to 4.5 bar, and a rugged aluminium die-cast enclosure.
مخزون ضخم
شحن عالمي
دعم من خبراء
جودة مضمونة
| Part No. | 060B0296 |
| Series | MP |
| Fluid | Oil |
| Differential Pressure Measuring Range | 0.3 … 4.5 bar |
| Switch Differential Pressure | 0.2 bar |
| Operating Pressure Max. | 17 bar / 245 psig |
| Switching Function | SPDT |
| Contact Rating | 250 V AC/DC / 2 / 0.2 A |
| Frequency | 50 … 60 Hz |
| Pressure Connection | G1/4 |
| Material | Aluminium Die Casting |
| Protection Class | IP20 |
| Fluid Temperature Range | -40 … 60 °C |
| Stock Key | CON003 |
| Condition | New |
| SKU | 1102917 |
| Weight | 0,64 |
