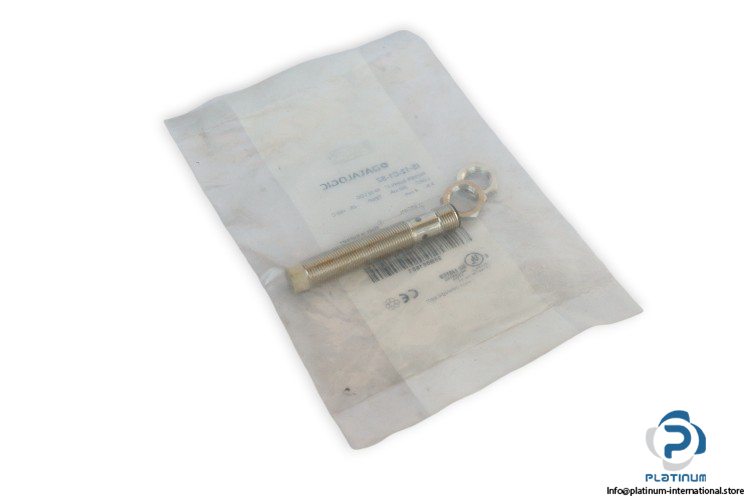

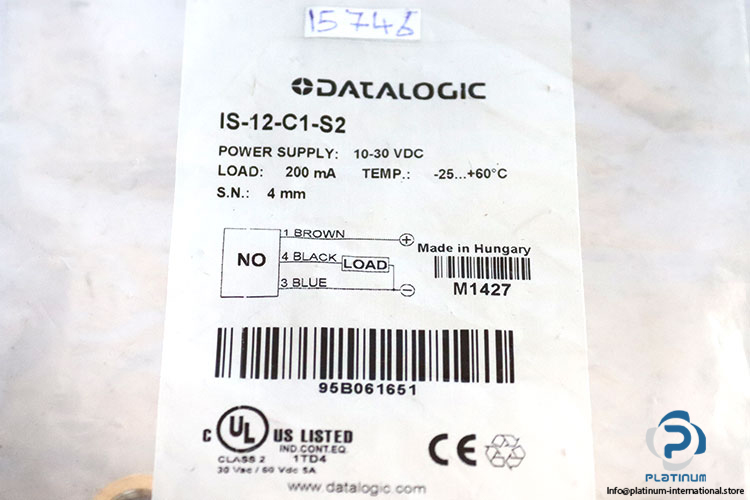

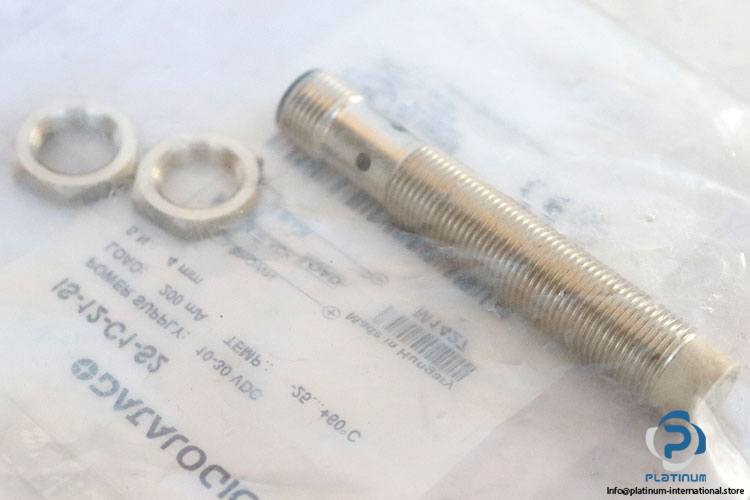

Datalogic IS-12-C1-S2 Inductive Proximity Sensor

Manufacturer: Datalogic
Type: Inductive proximity sensor
Model: IS12C1S2
Part No.: M1427

Voltage: 10 … 30 V DC
Max. Output Current: 200 mA; 100 mA (2wires)
Min. Output Current: >1,6 mA (2wires)
Sensing range: 4 mm
Switching frequency: 1000 Hz/200 Hz
Connection: Connector (M12)
Output function: PNP
Contact: Normally open
Housing Material: Nickel-plated brass
Protection degree: IP67
Ambient temperature: -25 … 70°C
Length: 72.4 mm
