Datalogic S3S-E1 Fixed Focus Proximity Sensor

Datalogic S3S-E1 Fixed Focus Proximity Sensor

The Datalogic S3S-E1 is a compact fixed focus proximity sensor designed for reliable object detection in industrial environments. With NPN/PNP selectable output and axial optics, it ensures high performance across various automation systems.

Manufacturer: DATALOGIC

Type: Fixed Focus Proximity Sensor

Model: S3S-E1

Technical Data:

• Power Supply: 10 to 30 V DC
• Current Consumption: 30 mA max.
• Output Current: 100 mA max.
• Function: Fixed focus proximity
• Cable Length: 2 m
• Optics: Axial
• Connection: Cable

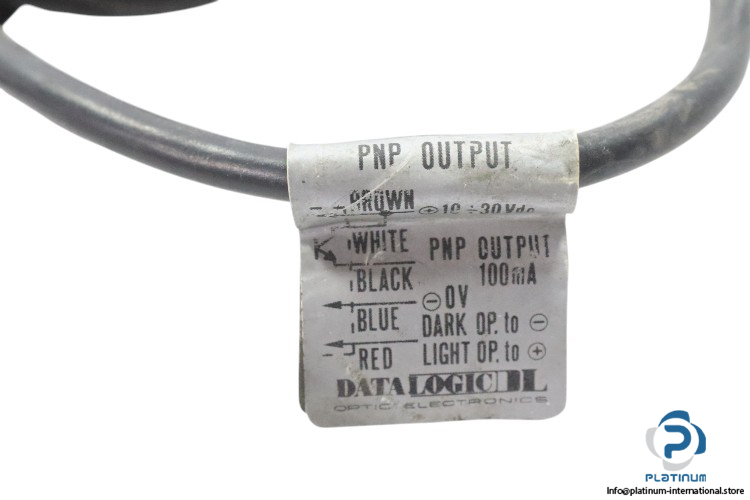

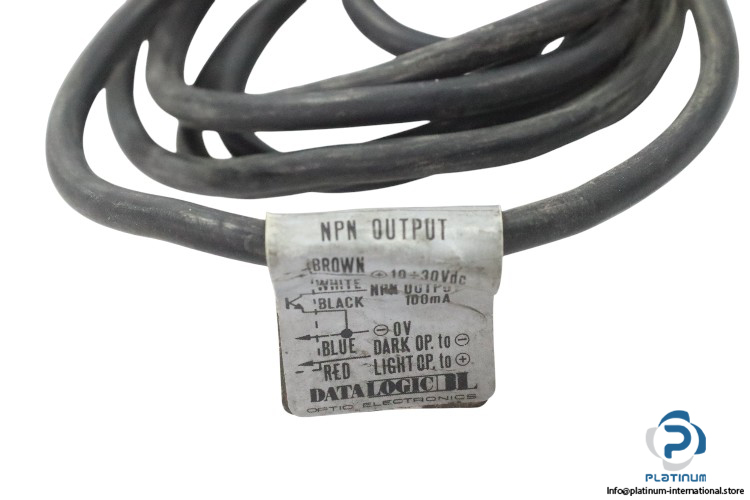

• Output: NPN/PNP, dark/light
• Housing Material: ABS
• Protection Degree: IP66
• Operating Temperature: -25 / +55°C
