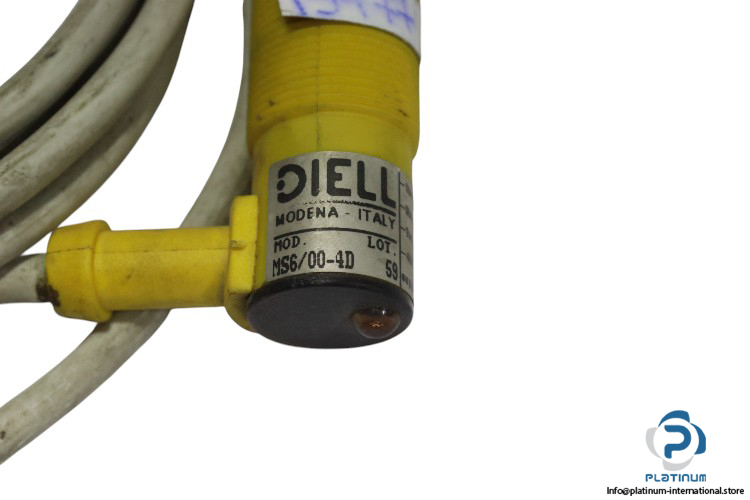

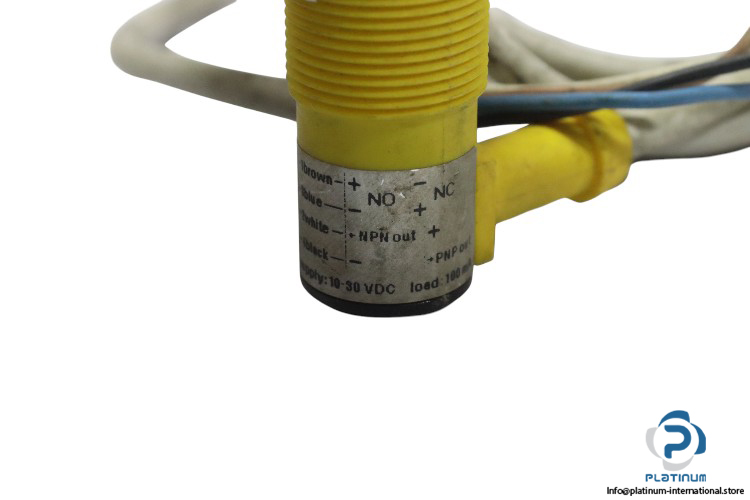

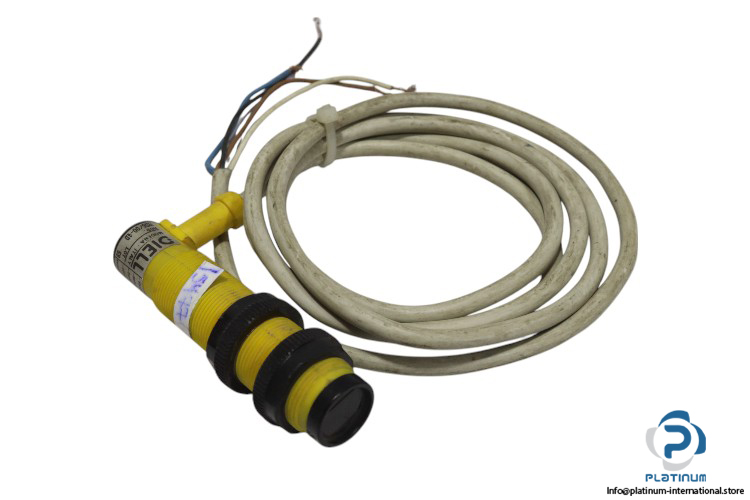

Diell MS6/00-4D 59 Diffuse Sensor

DIELL MS6/00-4D 59 Diffuse Sensor

The DIELL MS6/00-4D 59 is a high-precision diffuse sensor designed for versatile object detection in industrial environments. With programmable switching output and durable plastic housing, it offers reliable performance in a wide temperature range.

Manufacturer: DIELL

Type: Diffuse Sensor

Model: MS6/00-4D 59

Technical Data:

• Sensing Range: 400 mm
• Operating Voltage: 10 / 30 V DC
• Switching Output: NPN / PNP, Normally Open (NO) / Normally Closed (NC) Programmable
• Rated Switching Current: 100 mA
• Electrical Connection: Cable, 4-Wires
• Housing Material: Plastic
• Operating Temperature: -25 / 70 °C
