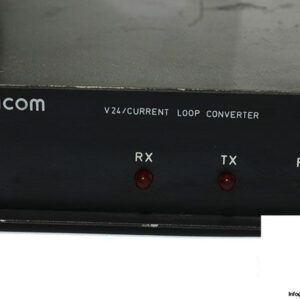

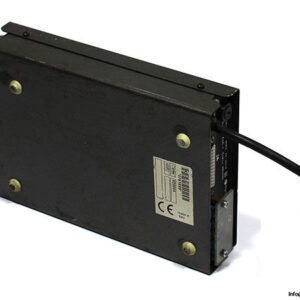

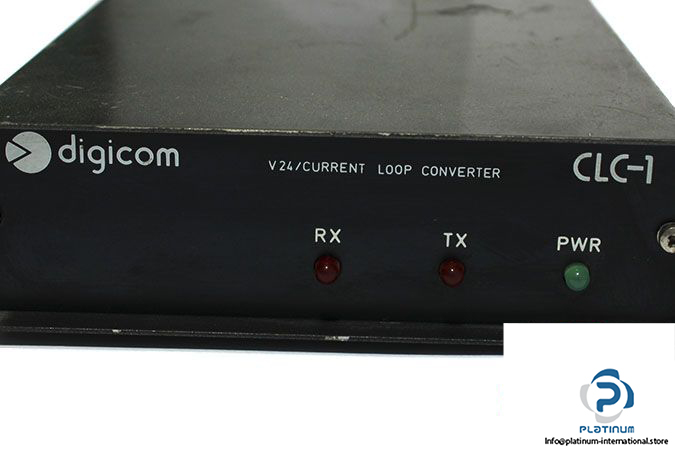

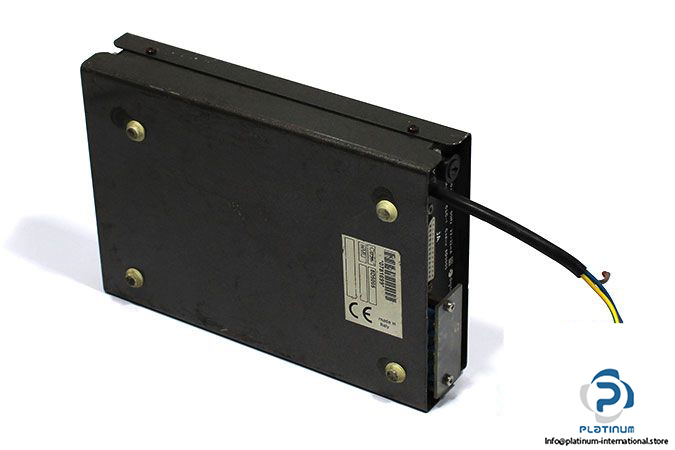

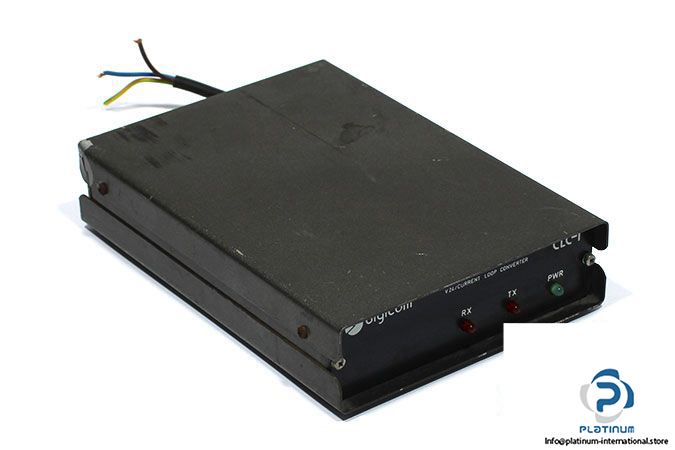

Digicom CLC-1 Serial Modem AND Current Loop Converter

Manufacturer: Digicom

Type: Serial modem and Current Loop Converter

Model: CLC-1

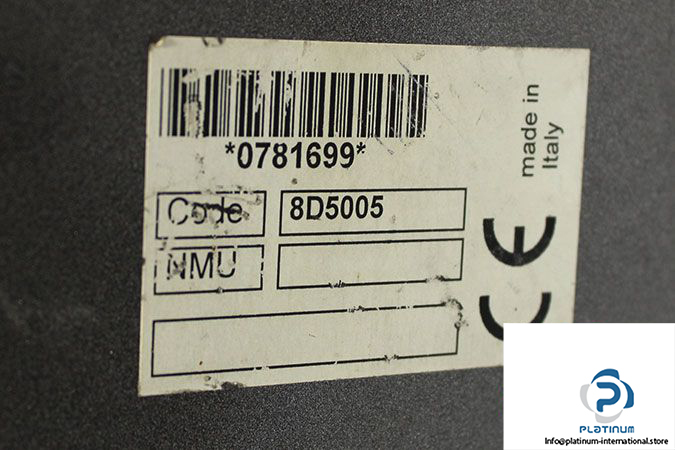

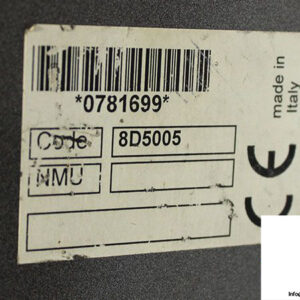

Art No: 8D5005



Features

• It Operates in Asynchronous Mode Over 4 Wires Leased Lines
• The Maximum Speed is 9600 bps

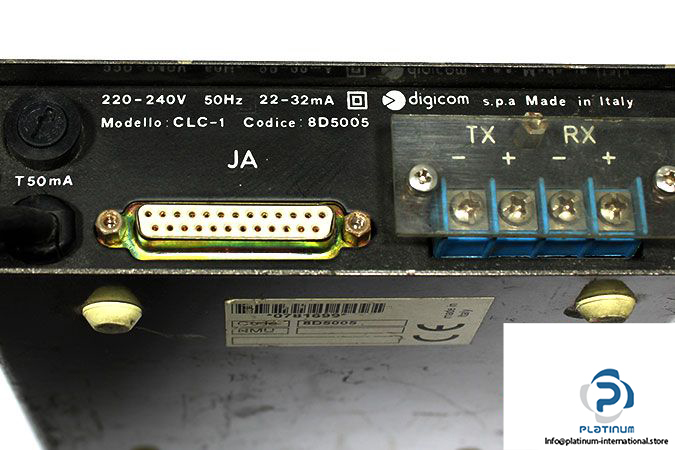

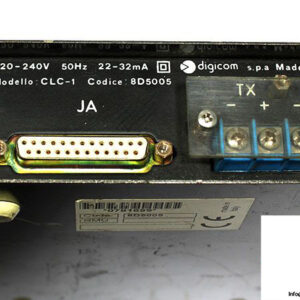

• V24/V28 Interface on DB25 Connector (ISO2110)
• Asynchronous Working Without Formats and Codes Limitations
• Galvanic Insulation with Optoinsulators up to 2500 Veff
• 4 Wires Leased Line, Full-Duplex, Point-To-Point with Shielded Cable
• Suitableto Operate Both with Active and Passive Current Loop
• Current Interface on 4 Screws Terminal Board

Speed: up to 9600 bps

Power Supply: 220 V AC / 50 Hz

Electrical Levels of Current Interface: +20mA mark; 0mA space

Maximum Voltage of Current Interface: +15V

Reception Threshold of Current Interface: +5mA

Input Impedance of Current Interface: 220 Ohm

Dimensions: 210 x 143 x 44 mm

Weight: 1.24 kg
