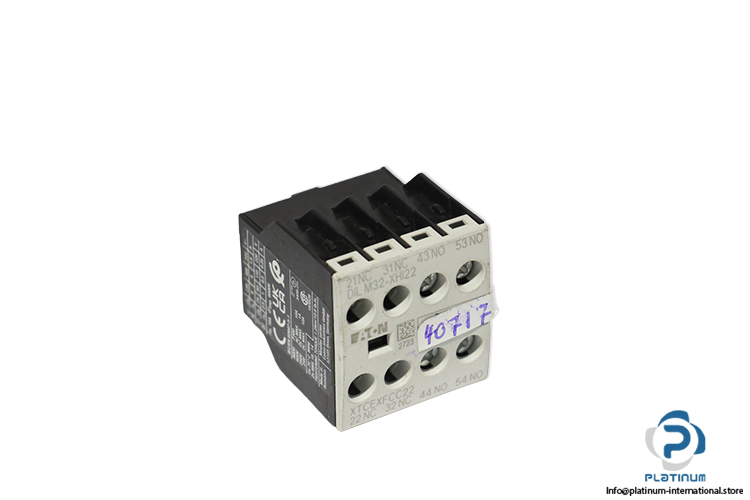

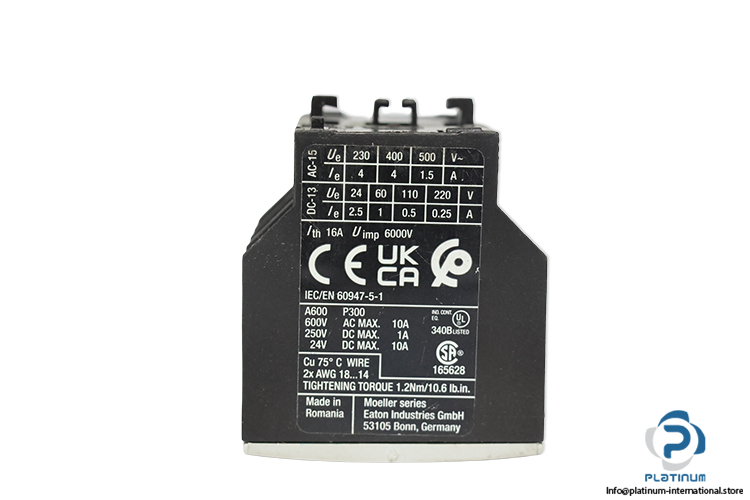

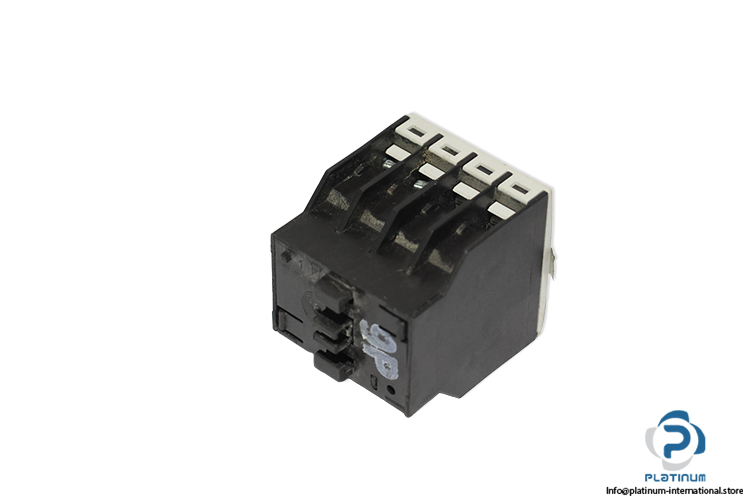

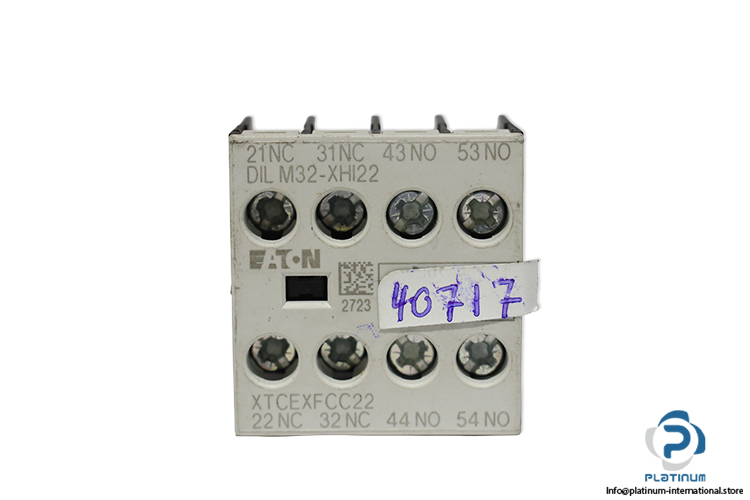

Eaton DIL M32-XHI22 Auxiliary Contact Module
مستعمل
متوفر1 وحدةجاهز للشحن
EATON DIL M32-XHI22 four-pole auxiliary contact module with 2NO + 2NC contacts, 16 A thermal current, screw connections, and IP20 protection for industrial control applications.
مخزون ضخم
شحن عالمي
دعم من خبراء
جودة مضمونة
| Part No. | 277377 |
| EL Number | 4130435 |
| Product Type | DILM |
| Rated impulse withstand voltage (Uimp) | 6000 V AC |
| Thermal Current | 16 A |
| Rated insulation voltage (Ui) | 690 V |
| Rated operational voltage (Ue) at AC – max | 500 V |
| Number of poles | Four-pole |
| Tightening torque | 1.2 Nm |
| Rated operational current (Ie) at AC-15, 380 V, 400 V, 415 V | 4 A |
| Rated operational current (Ie) at AC-15, 500 V | 1.5 A |
| Electric connection type | Screw connection |
| Number of contacts | 2 normally closed + 2 normally open |
| Size | 45 x 38 x 36 mm |
| Degree of protection | IP20 |
| Ambient operating temperature | -25 … 40 |
| Condition | Used |
| SKU | 1105012 |
| Weight | 0,05 |
